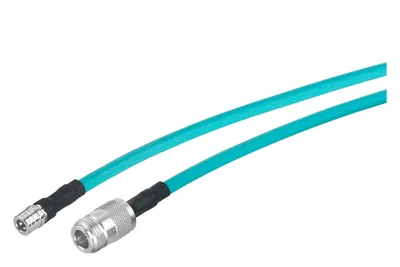

Siemens 6XV1875-5JH10
QMA/ N-Connect male/female flexible connection cable pre-assembled, length 1 m; Flexible adapter cable from antenna with QMA socket to antenna connection cable; scope of delivery: 3 units.
product brand nameSIMATIC NET
wire length1 m
number of electrical connections2
type of electrical connectionQMA/N-Connect male/female
transmission frequency0 ... 6000 MHz
at 2.4 GHz / typical0.53 dB/m
About This Product
QMA/ N-Connect male/female flexible connection cable pre-assembled, length 1 m; Flexible adapter cable from antenna with QMA socket to antenna connection cable; scope of delivery: 3 units.
Siemens 6XV1875-5JH10
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSIMATIC NET
suitability for useAdapter cable for connecting an antenna with QMA connection to the flexible connecting cables
wire length1 m
electrical data
number of electrical connections2
type of electrical connectionQMA/N-Connect male/female
transmission frequency0 ... 6000 MHz
at 2.4 GHz / typical0.53 dB/m
at 5.2 GHz / typical0.83 dB/m
at 5.85 GHz / typical0.89 dB/m
minimum23 dB
rated value50 Ω
capacity per length / at 1 kHz82 pF/m
relative speed82 %
mechanical data
design of the shieldBraided shield made of tin-plated copper wires
of inner conductor1.4 mm
of dielectric3.8 mm
of cable sheath6.3 mm
symmetrical tolerance of the outer diameter / of cable sheath0.2 mm
thickness / of cable sheath0.76 mm
of inner conductorCu
of dielectricpolyethylene foam
of cable sheathFRNC
of cable sheathpastel turquoise
with single bend / minimum permissible32 mm
with multiple bends / minimum permissible45 mm
tensile load / maximum80 N
weight per length75 kg/km
ambient conditions
during operation-40 ... +80 °C
during storage-40 ... +80 °C
during transport-40 ... +80 °C
during installation-25 ... +80 °C
to mineral oilconditional resistance
radiological resistance / to UV radiationresistant
protection class IPIP67; when plugged in
product features, product functions, product components / general
halogen-freeYes
silicon-freeYes
standards, specifications, approvals
EAC approvalYes
RoHS conformityYes
fire protection in accordance with EN 45545-2No
standard / for fire behavior / flame resistanceUL 1685 (Vertical tray), UL 1581 Sec. 1090 (H)
