How can I get a price quote for Siemens 6XV1878-2A?

You can request a fast quote for Siemens 6XV1878-2A from Yılsa Engineering. Reference part number CEY-8EF3B030633C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1878-2A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1878-2A genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1878-2A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1878-2A

Industrial Ethernet FastConnect TP standard cable GP 4x 2, TP installation CAT6A cable for connection to IE FC RJ45 plug 4x 2, AWG24, sold by the meter, delivery unit max. 2000 m minimum order quantity 20 m.

SiemensMFR # 6XV1878-2ASKU # CEY-8EF3B030633C

product brand nameSIMATIC NET

cable designationSF/UTP, 2YH (ST) CY 4x2x0,5/1,0 GN

wire lengthsold by the meter

at 10 MHz / maximum0.058 dB/m

at 100 MHz / maximum0.191 dB/m

at 250 MHz / maximum0.311 dB/m

Have questions?Chat on WhatsApp

About This Product

Siemens 6XV1878-2A

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for useStandard cable with rigid cores for fast, permanent installation

cable designationSF/UTP, 2YH (ST) CY 4x2x0,5/1,0 GN

wire lengthsold by the meter

electrical data

at 10 MHz / maximum0.058 dB/m

at 100 MHz / maximum0.191 dB/m

at 250 MHz / maximum0.311 dB/m

at 300 MHz / maximum0.343 dB/m

at 500 MHz / maximum0.453 dB/m

at 1 MHz ... 100 MHz100 Ω

at 1 MHz ... 100 MHz0.453 dB/m

at 1 MHz … 250 MHz0.393 dB/m

at 1 MHz ... 300 MHz0.381 dB/m

at 1 MHz ... 500 MHz0.348 dB/m

coupling loss / at 30 MHz … 100 MHz / minimum80 dB

transfer impedance per length / at 10 MHz20 mΩ/m

loop resistance per length / maximum190 mΩ/m

insulation resistance coefficient5000 GΩ·m

RMS value80 V

maximum80 V

NVP value in percent67 %

mechanical data

number of electrical cores8

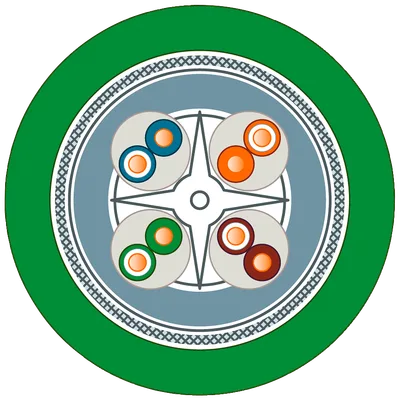

design of the shieldSF/UTP, overlapped aluminum-clad foil, sheathed in a protective braided shield of tinned copper wires

type of electrical connection / FastConnectYes

of AWG24 insulated conductor0.51 mm

of inner conductor0.51 mm

of the wire insulation1 mm

of the inner sheath of the cable6.1 mm

of cable sheath8 mm

symmetrical tolerance of the outer diameter / of cable sheath0.2 mm

of the wire insulationpolyethylene (PE)

of the inner sheath of the cableFRNC

of cable sheathPVC

of the insulation of data wireswhite-blue/blue, white-orange/orange, white-green/green, white-brown/brown

of cable sheathgreen

with single bend / minimum permissible24 mm

with multiple bends / minimum permissible40 mm

tensile load / maximum100 N

weight per length74.5 kg/km

ambient conditions

during operation-40 ... +85 °C

during storage-40 ... +80 °C

during transport-40 ... +80 °C

during installation-40 ... +80 °C

ambient condition / for operationTemperature range for permanent installation -40 °C to +85 °C

fire behaviorflame resistant according to IEC 60332-3-24 (Category C)

class of burning behaviour / according to EN 13501-6Eca

to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)

to greaseConditional resistance

to waterconditional resistance

radiological resistance / to UV radiationresistant

product features, product functions, product components / general

halogen-freeNo

PoE capabilityYes

PoE+ capabilityYes

PoE++ capabilityYes

silicon-freeYes

with 100BaseTX100 m

with 1000BaseT100 m

for 10GBase T90 m

at AC / core-to-core2000 V

at AC / core shield2000 V

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; c(UL)us, CMG, AWM-Style 21500, cRU AWM I A/B 60°C 300V FT2

UL/ETL style / 600 V RatingNo

EAC approvalYes

CE markingYes

RoHS conformityYes

ANSI/TIA-EIA 568-B.2 Cat.5eYes

IEC 61784-5-2-CP 2/2 (Ethernet/IP)Yes

standard for structured cablingCat6A

resistance to air pollution / conformity according to ANSI/ISA-71.04Yes; G3

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Germanische Lloyd (GL)No

Lloyds Register of Shipping (LRS)No

Nippon Kaiji Kyokai (NK)No

Polski Rejestr Statkow (PRS)No
