How can I get a price quote for Siemens 6GK5793-8DK00-0AA0?

You can request a fast quote for Siemens 6GK5793-8DK00-0AA0 from Yılsa Engineering. Reference part number CEY-8EF3B02EE7F9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6GK5793-8DK00-0AA0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6GK5793-8DK00-0AA0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6GK5793-8DK00-0AA0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

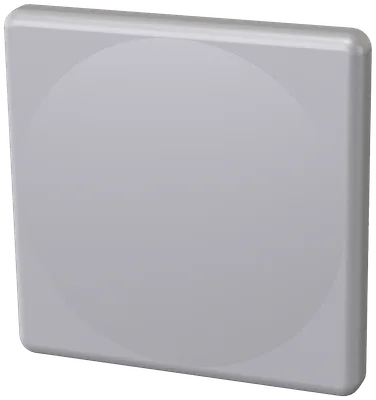

Siemens 6GK5793-8DK00-0AA0

Please observe national approvals: www.siemens.com/wireless-approvals vertically-horizontally polarized with strong directional effect incl. 2x N-female socket; 23 dBi; IP67 (-45-+70 °C), 5 GHz; Wi-Fi compliance and Observe national approvals; Mounting on wall or mast; compact instructions as hard copy German/English; scope of delivery: 1x ANT793-8DK, 1x mounting aid for alignment .

SiemensMFR # 6GK5793-8DK00-0AA0SKU # CEY-8EF3B02EE7F9

product brand nameSCALANCE

type of wireless network / is supportedWLAN

for WLAN in 5 GHz frequency band 15.15 ... 5.875 GHz

impedance50 Ω

polarizationDual linear vertical-horizontal

radiation characteristicdirectional

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK5793-8DK00-0AA0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

radio frequencies

type of wireless network / is supportedWLAN

for WLAN in 5 GHz frequency band 15.15 ... 5.875 GHz

electrical data

of the WLAN antenna / in the 5 GHz frequency band23 dB

impedance50 Ω

polarizationDual linear vertical-horizontal

radiation characteristicdirectional

standing wave ratio (VSWR) / maximum1.7

in the 5 GHz frequency band / horizontal9°

in the 5 GHz frequency band / vertical9°

number of electrical connections / of the antenna2

type of electrical connection / of the antennaN-Connector

design of plug-in connectionfemale

angle of inclination / downward / maximum0°

crosstalk attenuation / between the antenna connections40 dB

front-to-back ratio35 dB

mechanical data

of outer shellPolycarbonate

ambient conditions

during operation-45 ... +70 °C

during storage-45 ... +70 °C

during transport-45 ... +70 °C

protection class IPIP67

wind load / maximum389 N; frontal at 220 km/h

design, dimensions and weights

width371 mm

height371 mm

depth40 mm

net weight2500 g

mast mountingYes

wall mountingYes

roof mountingNo

directly on the deviceNo

standards, specifications, approvals

RoHS conformityYes

Accessories 1

Genuine accessories that can be used with the Siemens 6GK5793-8DK00-0AA0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
