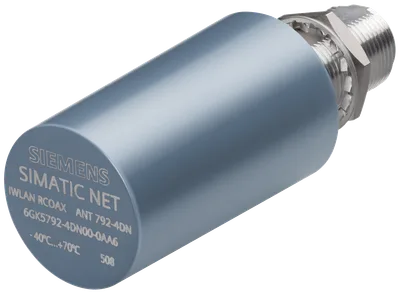

Siemens 6GK5792-4DN00-0AA6

ANT792-4DN IWLAN antenna for RCoax systems, 4 dBi Helix antenna, circular polarizing clockwise; incl. N-female plug IP65 (-40-+70 °C), 2.4 GHz,

SiemensMFR # 6GK5792-4DN00-0AA6SKU # CEY-8EF3B030B51C

product brand nameSCALANCE

type of wireless network / is supportedWLAN

for WLAN in 2.4 GHz frequency band2.4 ... 2.4835 GHz

impedance50 Ω

polarizationRight hand circular

radiation characteristicSector antenna

Have questions?Chat on WhatsApp

About This Product

ANT792-4DN IWLAN antenna for RCoax systems, 4 dBi Helix antenna, circular polarizing clockwise; incl. N-female plug IP65 (-40-+70 °C), 2.4 GHz,

Siemens 6GK5792-4DN00-0AA6

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSCALANCE

radio frequencies

type of wireless network / is supportedWLAN

for WLAN in 2.4 GHz frequency band2.4 ... 2.4835 GHz

electrical data

with linear radiationmaximum antenna gain measured in open space

of the WLAN antenna / in the 2.4 GHz frequency band4 dB

impedance50 Ω

polarizationRight hand circular

radiation characteristicSector antenna

standing wave ratio (VSWR) / maximum1.8

in the 2.4 GHz frequency band / horizontal90°

number of electrical connections / of the antenna1

type of electrical connection / of the antennaN-Connector

design of plug-in connectionfemale

angle of inclination / downward / maximum0°

front-to-back ratio2.5 dB

mechanical data

of outer shellPolycarbonate

ambient conditions

during operation-40 ... +70 °C

during storage-40 ... +70 °C

during transport-40 ... +70 °C

protection class IPIP65

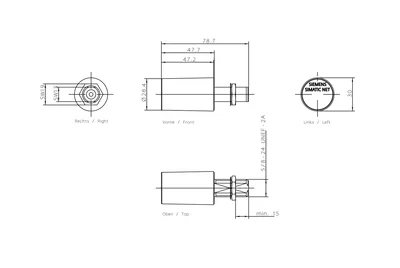

design, dimensions and weights

height78.7 mm

diameter30 mm

net weight114 g

product features, product functions, product components / general

product feature / silicon-freeYes

standards, specifications, approvals

RoHS conformityYes

product conformityUL 94-V1
