How can I get a price quote for Siemens 6XV1801-5DE50?

You can request a fast quote for Siemens 6XV1801-5DE50 from Yılsa Engineering. Reference part number CEY-8EF3B02FD57B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6XV1801-5DE50 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6XV1801-5DE50 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6XV1801-5DE50?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

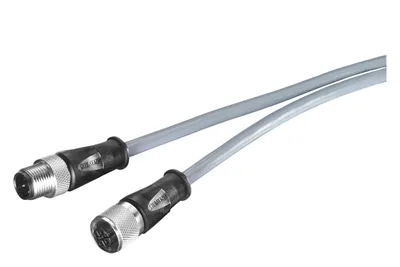

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Siemens 6XV1801-5DE50

Power connecting cable M12-180/M12-180 for the power supply of the ET 200, pre-assembled cable with M12 plug and M12 socket, A-coded, 4-pole 0.5 m.

SiemensMFR # 6XV1801-5DE50SKU # CEY-8EF3B02FD57B

product brand nameSIMATIC NET

cable designationLI9YH-Y 4x0.75

wire length0.5 m

operating voltage / RMS value300 V

number of electrical cores4

type of electrical connectionM12-180

Have questions?Chat on WhatsApp

About This Product

Power connecting cable M12-180/M12-180 for the power supply of the ET 200, pre-assembled cable with M12 plug and M12 socket, A-coded, 4-pole 0.5 m.

Siemens 6XV1801-5DE50

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

suitability for usePlug-in cable for connecting 24 V power supply to ET 200 & XP-200 with IP 65/67 degree of protection

cable designationLI9YH-Y 4x0.75

wire length0.5 m

electrical data

operating voltage / RMS value300 V

conductor cross section / of the power line0.75 mm²

mechanical data

number of electrical cores4

type of electrical connectionM12-180

of inner conductor1.1 mm

of the wire insulation1.7 mm

of cable sheath5.7 mm

symmetrical tolerance of the outer diameter / of cable sheath0.2 mm

design of stranding elementPairs

conductor class5

of the conductorCU, blank

of the wire insulationPP

of cable sheathPVC

product component / PE connectionNo

marking / of coresColor

of the power line insulationbrown / white / blue / black

of cable sheathgray

with single bend / minimum permissible57 mm

with multiple bends / minimum permissible57 mm

with continuous bending57 mm

number of bending cycles100000

tensile load / maximum15 N

weight per length54 kg/km

plug

type of plug interlockscrewed

design of plug-in connectionM12-180

connector codingM12

connector coding / of the M12 circular connectorA coded

ambient conditions

during operation-25 ... +80 °C

during storage-25 ... +80 °C

during transport-25 ... +80 °C

during installation80 °C

ambient condition / for operationWith moving applications, the permissible operating temperature range is -5 to +80 degrees Celsius

fire behaviorFlame-resistant acc. to UL 758 (CSA FT 1)

to mineral oilConditional resistance

to greaseConditional resistance

radiological resistance / to UV radiationnot resistant

protection class IPIP65 / 67

product features, product functions, product components / general

halogen-freeNo

silicon-freeYes

standards, specifications, approvals

UL/ETL listing / 300 V RatingYes; AWM 2464/10493 AWM I/II A/B 80°C 300V FT1

EAC approvalYes

RoHS conformityYes
