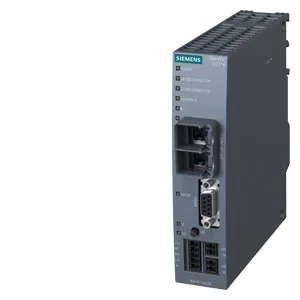

Siemens 6GK1411-5AC00

SIMATIC CloudConnect 7, CC716 IoT Gateway for connection of automation devices to cloud services and OPC 2x Ethernet RJ45, 1xMPI/PB Field protocols: S7, S7-Plus, OPC UA, Modbus MES/Cloud protocols: MQTT, HTTP, OPC UA

SiemensMFR # 6GK1411-5AC00SKU # YLSX1BWVS5DB97H

product brand nameSIMATIC NET

at the 1st interface10 ... 1000 Mbit/s

at the 2nd interface10 ... 1000 Mbit/s

for power supply2

for power supply5-pin terminal strip

CLPYes

Have questions?Chat on WhatsApp

About This Product

Siemens 6GK1411-5AC00

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

product brand nameSIMATIC NET

transfer rate

at the 1st interface10 ... 1000 Mbit/s

at the 2nd interface10 ... 1000 Mbit/s

at the 1st interface / according to PROFIBUS9.6 kbit/s ... 12 Mbit/s

interfaces

at the 1st interface / according to Industrial Ethernet1

at the 2nd interface / according to Industrial Ethernet1

at the 1st interface / according to PROFIBUS1

for power supply2

at the 1st interface / according to Industrial EthernetRJ45 port

at the 2nd interface / according to Industrial EthernetRJ45 port

at the 1st interface / according to PROFIBUS9-pin Sub-D socket (RS485)

for power supply5-pin terminal strip

CLPYes

signal inputs/outputs

number of electrical connections / for digital input signals1

number of electrical connections / for digital output signals1

supply voltage, current consumption, power loss

type of voltage / of the supply voltageDC

supply voltage24 V

supply voltage / external10.8 ... 28.8 V

supply voltage / external / at DC / rated value24 V

— in communication mode / typical180 mA

power loss [W]4.3 W

ambient conditions

for vertical installation / during operation0 ... 40 °C

for horizontally arranged busbars / during operation0 ... 60 °C

during storage-40 ... +40 °C

during transport-40 ... +70 °C

at 25 °C / without condensation / during operation / maximum95 %

protection class IPIP20

design, dimensions and weights

module formatCompact

width35 mm

height147 mm

depth127 mm

net weight0.4 kg

35 mm DIN-rail mountingYes

S7-300 rail mountingYes

S7-1500 rail mountingYes

wall mountingYes

product functions / cloud connectivity

Message Queuing Telemetry Transport (MQTT)Yes

Advanced Message Queuing Protocol (AMQP)No

HTTPYes

REST-APIYes

trigger managementYes

time stampingYes

product feature / for cloud connectivity / buffered message frame memoryYes

number of active connections / for cloud connectivity3

number of lower-level devices / maximum7

number of data points per device / maximum3500

performance data / PROFIBUS DP

DPV0No

DPV1No

DPV0No

DPV1No

performance data / S7 communication

maximum7

performance data / as OPC UA server

protocol / is supported / OPC UA ServerYes

number of possible connections / to OPC UA clients / maximum10

number of variables (items) / maximum4500

performance data / as OPC UA client

protocol / is supported / OPC UA ClientYes

number of possible connections / for OPC UA server / maximum7

product functions / diagnostics

product function / web-based diagnosticsYes

product functions / security

operating mode / Virtual Private Network (VPN)No

password protection for Web applicationsYes

SysLogYes

product functions / time

NTPYes

NTP (secure)Yes

from NTP-serverYes

manual settingYes

standards, specifications, approvals

certificate of suitability / CE markingYes

certificate of suitability / UKCA markingYes

certificate of suitability / cULus approvalYes

certificate of suitability / KC approvalYes

certificate of suitability / Regulatory Compliance Mark (RCM)Yes

certificate of suitability / RoHS conformityYes

certificate of suitability / EAC approvalYes

standards, specifications, approvals / hazardous environments / header

certificate of suitability / ATEXYes

certificate of suitability / IECExYes

certificate of suitability / ULhazloc approvalYes

certificate of suitability / CCC / for hazardous zone according to GB standardYes

certificate of suitability / FM registrationYes
