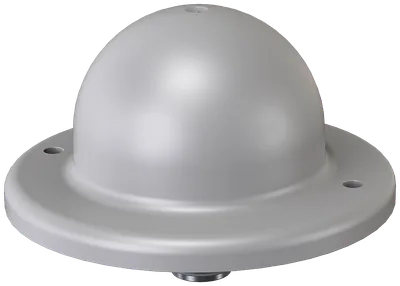

Siemens 6GK5795-6MN10-0AA6
Please observe national approvals: www.siemens.com/wireless-approvals omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available.
product brand nameSCALANCE
type of wireless network / is supported5G private networks, WLAN
operating frequency / 12400 ... 2700 MHz
operating frequency / 23400 ... 3800 MHz
operating frequency / 34900 ... 5925 MHz
operating frequency / 45925 ... 7125 MHz
About This Product
Please observe national approvals: www.siemens.com/wireless-approvals omnidirectional Characteristic; incl. N-Connect female plug: 6/8 dBi; IP65 (-40-+70 °C), WLAN 2.4/5 GHz and private 5G networks; Wi-Fi compliance and observe national approvals; mounting on roof and vehicles; compact instructions as hard copy German/English; scope of delivery: 1x ANT795-6MN, for mounting, the mounting aid 6GK5795-6MN01-0AA6 is available.

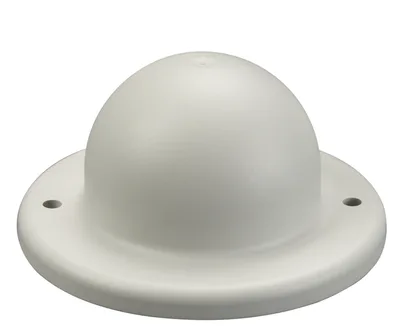

Siemens 6GK5795-6MN10-0AA6
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
product brand nameSCALANCE
radio frequencies
type of wireless network / is supported5G private networks, WLAN
operating frequency / 12400 ... 2700 MHz
operating frequency / 23400 ... 3800 MHz
operating frequency / 34900 ... 5925 MHz
operating frequency / 45925 ... 7125 MHz
for WLAN in 2.4 GHz frequency band2.4 ... 2.7 GHz
for WLAN in 5 GHz frequency band 14.9 ... 5.92 GHz
electrical data
with linear radiation / in operating frequency area 1 / typical6 dB
with linear radiation / in operating frequency area 2 / typical6 dB
with linear radiation / in operating frequency area 3 / typical8 dB
with linear radiation / in operating frequency area 4 / typical8 dB
impedance50 Ω
polarizationLinear Vertical
radiation characteristicomnidirectional
standing wave ratio (VSWR) / maximum2
radiating angle of the antennatake the antenna diagram into account regarding the horizontal beam angle
horizontal360°
in the 5 GHz frequency band / horizontal150°
number of electrical connections / of the antenna1
type of electrical connection / of the antennaN-Connector
design of plug-in connectionfemale
angle of inclination / downward / maximum0°
mechanical data
of outer shellPolycarbonate
ambient conditions
during operation-40 ... +80 °C
during storage-40 ... +80 °C
during transport-40 ... +80 °C
protection class IPIP65; with correct installation
wind load / maximum10 N; at 160 km/h
design, dimensions and weights
width86 mm
height43 mm
depth86 mm
net weight300 g
mast mountingNo
flat roof mountingYes
wall mountingYes
roof mountingYes
directly on the deviceNo
product features, product functions, product components / general
product feature / silicon-freeYes
standards, specifications, approvals
certificate of suitabilityRailway application in accordance with NF-F-16-101, NF-F-16-102
RoHS conformityYes
railway application in accordance with EN 50155Yes
fire protection in accordance with EN 45545-2Yes
Marine classification association / Korean Register of Shipping (KRS)Yes
product conformityUL 94-V0
