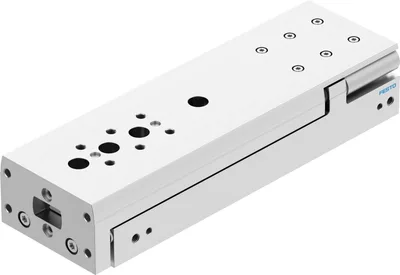

Festo DGST-16-125-PA

Mini slide. Powerful twin-piston drive. Shortest mini slide on the market. Precise recirculating ball bearing guide. Versatile mounting options. Version with mirrored supply port configuration and sensor slots for compact assembly available to order using the configurator. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials

FestoMFR # DGST-16-125-PASKU # YLSLWPOOPANEOBW

Stroke125

Piston diameter16 mm

Operating mode, drive unitYoke

Mounting positionAny

GuideRecirculating ball bearing guide

DesignYoke, Piston rod, Slide

Have questions?Chat on WhatsApp

About This Product

Festo DGST-16-125-PA

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke125

Adjustable end position range/length front22.8

Adjustable end position range/length rear21.5

Piston diameter16 mm

Operating mode, drive unitYoke

CushioningElastic cushioning rings/plates at both ends

Mounting positionAny

GuideRecirculating ball bearing guide

DesignYoke, Piston rod, Slide

Position detectionVia proximity switch

Symbol00991249

Operating pressure0.1, 0.8

Operating pressure1, 8

Operating pressure14.5, 116

Max. speed0.8

Repetition accuracy<= 0.3 mm

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature-10, 60

Impact energy in end positions0.25

Cushioning length1

Max. force Fy960

Max. force Fz960

Max. moment Mx14

Max. moment My15

Max. moment Mz15

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke207

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke241

Moving mass678

Product weight1376

Type of mountingWith through-hole

Pneumatic connectionM5

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsHNBR

Material guidePOM, TPE-E, High-alloy steel

Material housingWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 158

Genuine accessories that can be used with the Festo DGST-16-125-PA motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
QSM-M5-4	Push-in fitting · Fittings
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
PUN-H-4X0,75-BL	Plastic tubing · Tubes
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Proximity sensors
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-PU-E-2.5-N-LE	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-0.3-N-M8	Proximity sensor · Proximity sensors
SDBT-MSX-1L-NU-E-2.5-N-LE	Proximity sensor · Proximity sensors
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
VFOE-LE-T-M5-Q4	One-way flow control valve · Function fittings
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
QSM-M5-4-I	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
ZBH-9-B	Centring sleeve · Mounting accessories
ZBH-5-B	Centring sleeve · Mounting accessories
ZBH-7-B	Centring sleeve · Mounting accessories
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
GRLA-M5-RS-B	One-way flow control valve · Function fittings
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-RS-D	One-way flow control valve · Function fittings
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8G-PS-24V-E-2,5Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8G-PS-24V-E-0,3Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMAT-8M-U-E-0,3-M8D	Position transmitter · Cylinder sensors for direct mounting
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SDAT-MHS-M125-1L-SA-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
NPFC-D-2M5-M	Double nipple · Other connectors
NPFC-R-G18-M5-FM	Reducing nipple · Other connectors
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE	Position transmitter · Cylinder sensors for direct mounting
SMT-8G-NS-24V-E-0,3Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8G-NS-24V-E-2,5Q-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-E1-2M5-FM	Extension · Other connectors
NPFC-R-M5-M3-MF	Reducing nipple · Other connectors
DYEF-G8-M10-Y1	Shock absorber · Mounting accessories
SDAT-MHS-M125-1L-SV-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
ZBH-5-M4	Centring sleeve · Mounting accessories
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-DS-M5-M5-M	Double nipple · Other connectors
DADP-ES-G8-16	Shock absorber retainer · Mounting accessories
DADG-AK-G8-16-125	Connection kit · Connection accessories
DHAA-D-G8-H-20-80-G8-16-50	Adapter kit · Mounting accessories
DHAA-D-G8-H-20-10-G8-16-10	Adapter kit · Mounting accessories
DHAA-D-G8-H-20-125-G8-16-100	Adapter kit · Mounting accessories
DHAA-G-G8-16-B20-16	Adapter kit · Mounting accessories
DHAA-D-G8-H-16-125-G8-16-100	Adapter kit · Mounting accessories
DHAA-D-G8-H-16-10-G8-16-10	Adapter kit · Mounting accessories
DHAA-D-G8-H-16-50-G8-16-40	Adapter kit · Mounting accessories
DHAA-D-G8-H-16-100-G8-16-80	Adapter kit · Mounting accessories
DHAA-D-G8-H-16-10-G8-12-10	Adapter kit · Mounting accessories
DHAA-D-G8-H-16-50-G8-12-40	Adapter kit · Mounting accessories
DHAA-G-G8-16-B18-16	Adapter kit · Mounting accessories
DHAA-G-G8-16-B12-25	Adapter kit · Mounting accessories
DHAA-G-G8-16-B8-25	Adapter kit · Mounting accessories
DHAA-G-G8-16-B8G-25	Adapter kit · Mounting accessories
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
DHAA-D-G8-25-G8-16	Adapter kit · Mounting accessories
ZBH-5	Centring sleeve · Mounting accessories
