How can I get a price quote for Festo DGST-10-40-Y12A?

You can request a fast quote for Festo DGST-10-40-Y12A from Yılsa Engineering. Reference part number YLSY2HNZ7DYQ8B1. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DGST-10-40-Y12A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DGST-10-40-Y12A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DGST-10-40-Y12A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

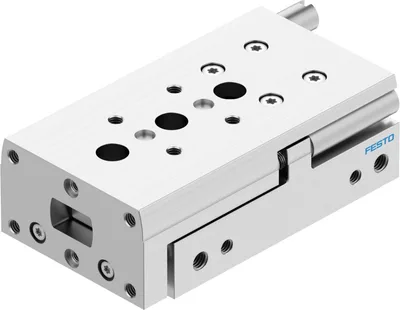

Festo DGST-10-40-Y12A

Mini slide. Powerful twin-piston drive. Shortest mini slide on the market. Precise recirculating ball bearing guide. Versatile mounting options. Version with mirrored supply port configuration and sensor slots for compact assembly available to order using the configurator. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable in production thanks to reduced use of materials

FestoMFR # DGST-10-40-Y12ASKU # YLSY2HNZ7DYQ8B1

Stroke40

Piston diameter10 mm

Operating mode, drive unitYoke

CushioningExternal hydraulic cushioning

Mounting positionAny

GuideRecirculating ball bearing guide

Have questions?Chat on WhatsApp

About This Product

Festo DGST-10-40-Y12A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke40

Adjustable end position range/length front16.2

Adjustable end position range/length rear14.5

Piston diameter10 mm

Operating mode, drive unitYoke

CushioningExternal hydraulic cushioning

Mounting positionAny

GuideRecirculating ball bearing guide

DesignYoke, Piston rod, Slide

Position detectionVia proximity switch

Symbol00991249

Operating pressure0.1, 0.8

Operating pressure1, 8

Operating pressure14.5, 116

Max. speed0.8

Repetition accuracy<= 0.02 mm

Mode of operationDouble-acting

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Ambient temperature-10, 60

Impact energy in end positions0.8

Cushioning length4

Max. force Fy500

Max. force Fz500

Max. moment Mx4

Max. moment My4.5

Max. moment Mz4.5

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke79

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke94

Moving mass175.2

Product weight344.4

Type of mountingWith through-hole

Pneumatic connectionM5

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsHNBR

Material guidePOM, TPE-E, High-alloy steel

Material housingWrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Accessories 138

Genuine accessories that can be used with the Festo DGST-10-40-Y12A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-4X0,75-BL	Plastic tubing · Tubes
SMT-10M-PS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-PS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
QSM-M5-4	Push-in fitting · Fittings
SMT-10M-NS-24V-E-2,5-L-OE	Proximity sensor · Proximity sensors
SMT-10M-NS-24V-E-0,3-L-M8D	Proximity sensor · Proximity sensors
PUN-H-4X0,75-NT	Plastic tubing · Tubes
PUN-H-4X0,75-SW	Plastic tubing · Tubes
PUN-H-4X0,75-TBL	Plastic tubing · Tubes
QSM-M5-4-I	Push-in fitting · Fittings
QSML-M5-4	Push-in L-fitting · Fittings
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
VFOE-LE-T-M5-Q4	One-way flow control valve · Function fittings
ZBH-5-B	Centring sleeve · Mounting accessories
ZBH-7-B	Centring sleeve · Mounting accessories
GASA-MIP-CTR-12M-10	AX Industrial App · Digital services
GASA-MIP-CTR-12M-100	AX Industrial App · Digital services
GASA-MIP-CTR-12M-1000	AX Industrial App · Digital services
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
GRLA-M5-RS-B	One-way flow control valve · Function fittings
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-RS-D	One-way flow control valve · Function fittings
SME-10M	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-DS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-PS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-NS-24V-E-0,3-Q-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-L-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-10M-ZS-24V-E-2,5-Q-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-D-2M5-M	Double nipple · Other connectors
NPFC-R-G18-M5-FM	Reducing nipple · Other connectors
NPFC-E1-2M5-FM	Extension · Other connectors
NPFC-R-M5-M3-MF	Reducing nipple · Other connectors
DYSS-G8-4-4-Y1F-G2	Shock absorber · Mounting accessories
ZBH-5-M4	Centring sleeve · Mounting accessories
NPFC-DS-M5-M5-M	Double nipple · Other connectors
SMT-10M-PS-24V-E-0,3-L-M12	Proximity switch · Cylinder sensors for direct mounting
DHAA-D-G8-H-10-10-G8-8-10	Adapter kit · Mounting accessories
DHAA-D-G8-H-10-40-G8-8-30	Adapter kit · Mounting accessories
DHAA-D-G8-H-10-80-G8-8-50	Adapter kit · Mounting accessories
DHAA-G-G8-10-B20-10	Adapter kit · Mounting accessories
DHAA-D-G8-H-10-80-G8-10-50	Adapter kit · Mounting accessories
DHAA-D-G8-H-10-10-G8-10-10	Adapter kit · Mounting accessories
DHAA-D-G8-H-10-40-G8-10-30	Adapter kit · Mounting accessories
DHAA-D-G8-H-12-10-G8-10-10	Adapter kit · Mounting accessories
DHAA-D-G8-H-12-40-G8-10-30	Adapter kit · Mounting accessories
DHAA-D-G8-H-12-50-G8-10-40	Adapter kit · Mounting accessories
DHAA-D-G8-H-12-80-G8-10-50	Adapter kit · Mounting accessories
DHAA-G-G8-10-B18-10	Adapter kit · Mounting accessories
DHAA-G-G8-10-B12-16	Adapter kit · Mounting accessories
DHAA-G-G8-10-B8-16	Adapter kit · Mounting accessories
DHAA-G-G8-10-B8G-16	Adapter kit · Mounting accessories
ZBH-5	Centring sleeve · Mounting accessories
