How can I get a price quote for Festo DGPL-18- -?

You can request a fast quote for Festo DGPL-18- - from Yılsa Engineering. Reference part number YLSVOWGHKHMMKDL. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo DGPL-18- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo DGPL-18- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo DGPL-18- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

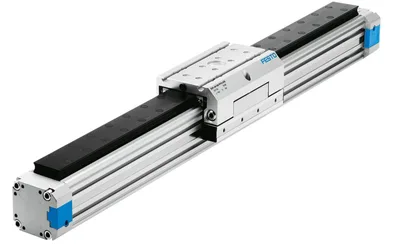

Photo may not represent actual item. Refer to name and product specs for all details.

Festo DGPL-18- -

Linear drive. Recirculating ball bearing guide or heavy-duty guide. Precise and resilient. Wide range of variants for customised applications. The modern alternative is the linear drive DGC

FestoMFR # DGPL-18- -SKU # YLSVOWGHKHMMKDL

Stroke10, 1800

Piston diameter18 mm

Mounting positionAny

Coupling designPositive-locking (slot)

Position detectionVia proximity switch

Operating pressure0.2, 0.8

Have questions?Chat on WhatsApp

About This Product

Linear drive. Recirculating ball bearing guide or heavy-duty guide. Precise and resilient. Wide range of variants for customised applications. The modern alternative is the linear drive DGC

Festo DGPL-18- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Stroke10, 1800

Piston diameter18 mm

CushioningPneumatic cushioning, adjustable at both ends, Shock absorber, hard characteristic curve

Mounting positionAny

GuidePlain-bearing guide, Basic Guide, Recirculating ball bearing guide, Heavy-duty guide

Coupling designPositive-locking (slot)

Position detectionVia proximity switch

VariantsClamping unit at rear, Clamping unit, underneath, Clamping unit at front

Operating pressure0.2, 0.8

Operating pressure2, 8

Mode of operationDouble-acting

Explosion ambient temperature-10°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC0 - No corrosion stress, 1 - Low corrosion stress, 2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-10, 60

Cushioning length16

Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke153

Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke153

alternative connectionsSee product drawing

Pneumatic connectionM5

Material coverDie-cast aluminium, coated

Material sealsNBR, TPE-U(PU)

Material housingAluminium, anodised

Accessories 133

Genuine accessories that can be used with the Festo DGPL-18- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CK-M5-PK-3	Quick connector · Quick connectors
CK-M5-PK-4	Quick connector · Quick connectors
N-M5-PK-3	Barbed fitting · Barbed fittings
LCK-M5-PK-3	Elbow quick connector · Quick connectors
TCK-M5-PK-3	T-quick connector · Quick connectors
LCK-M5-PK-4	Elbow quick connector · Quick connectors
TCK-M5-PK-4	T-quick connector · Quick connectors
N-M5-PK-4	Barbed fitting · Barbed fittings
CN-M5-PK-3	Barbed fitting · Barbed fittings
CN-M5-PK-4	Barbed fitting · Barbed fittings
LCN-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCN-M5-PK-4	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-3	Barbed T-fitting · Barbed fittings
TCN-M5-PK-4	Barbed T-fitting · Barbed fittings
CN-M5-PK-2	Barbed fitting · Barbed fittings
LCN-M5-PK-2	Barbed elbow fitting · Barbed fittings
TCN-M5-PK-2	Barbed T-fitting · Barbed fittings
LCNH-M5-PK-2	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-3	Barbed elbow fitting · Barbed fittings
LCNH-M5-PK-4	Barbed elbow fitting · Barbed fittings
QSM-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-5/32-I-U-M	Push-in fitting · Push-in fittings
QSML-M5-3-100	Push-in L-fitting · Push-in fittings
QSML-M5-4-100	Push-in L-fitting · Push-in fittings
QSML-M5-6-100	Push-in L-fitting · Push-in fittings
QSM-M5-3-100	Push-in fitting · Push-in fittings
QSM-M5-4-100	Push-in fitting · Push-in fittings
QSM-M5-6-100	Push-in fitting · Push-in fittings
QSMT-M5-4-100	Push-in T-fitting · Push-in fittings
QSMT-M5-6-100	Push-in T-fitting · Push-in fittings
QSMLV-M5-3-I	Push-in L-fitting · Push-in fittings
QSMLV-M5-4-I	Push-in L-fitting · Push-in fittings
QSMLLV-M5-3-I	Push-in L-fitting, long · Push-in fittings
QSMLLV-M5-4-I	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-3	Push-in L-fitting, long · Push-in fittings
QSM-M5-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-6-I-R-100	Push-in fitting · Push-in fittings
QSM-M5-3-I-R	Push-in fitting · Push-in fittings
QSM-M5-4-I-R	Push-in fitting · Push-in fittings
QSM-M5-6-I-R	Push-in fitting · Push-in fittings
QSMLL-M5-3-100	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-4-100	Push-in L-fitting, long · Push-in fittings
QSM-M5-2	Push-in fitting · Push-in fittings
QSML-M5-2	Push-in L-fitting · Push-in fittings
QSMLL-M5-2	Push-in L-fitting, long · Push-in fittings
MUP-18/25	Central support · Cylinder mountings
GRLA-M5-B	One-way flow control valve · Function fittings
GRLA-M5-PK-3-B	One-way flow control valve · Function fittings
GRLA-M5-PK-4-B	One-way flow control valve · Function fittings
GRLA-M5-RS-B	One-way flow control valve · Function fittings
GRLO-M5-B	Throttle valve · Function fittings
GRLO-M5-PK-3-B	Throttle valve · Function fittings
QSMK-M5-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-M5-6	Push-in fitting, self-sealing · Push-in fittings
QSMKL-M5-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-M5-6	Push-in L-fitting,self-sealing · Push-in fittings
QSM-M5-3	Push-in fitting · Push-in fittings
QSM-M5-4	Push-in fitting · Push-in fittings
QSM-M5-6	Push-in fitting · Push-in fittings
QSM-M5-3-I	Push-in fitting · Push-in fittings
QSM-M5-4-I	Push-in fitting · Push-in fittings
QSM-M5-6-I	Push-in fitting · Push-in fittings
QSML-M5-3	Push-in L-fitting · Push-in fittings
QSML-M5-4	Push-in L-fitting · Push-in fittings
QSML-M5-6	Push-in L-fitting · Push-in fittings
QSMLL-M5-4	Push-in L-fitting, long · Push-in fittings
QSMLL-M5-6	Push-in L-fitting, long · Push-in fittings
QSMT-M5-3	Push-in T-fitting · Push-in fittings
QSMT-M5-4	Push-in T-fitting · Push-in fittings
QSMT-M5-6	Push-in T-fitting · Push-in fittings
QSMTL-M5-3	Push-in T-fitting · Push-in fittings
QSMTL-M5-4	Push-in T-fitting · Push-in fittings
QSMTL-M5-6	Push-in T-fitting · Push-in fittings
QSR-M5-4	Push-in fitting, rotatable · Push-in fittings
QSR-M5-6	Push-in fitting, rotatable · Push-in fittings
QSRL-M5-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-M5-6	Push-in L-fitting, rotatable · Push-in fittings
GRLA-M5-QS-3-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-3-LF-C	Throttle valve · Function fittings
GRLA-M5-QS-4-LF-C	One-way flow control valve · Function fittings
GRLO-M5-QS-4-LF-C	Throttle valve · Function fittings
SMB-8E	Mounting kit · Mounting kits for proximity sensors, other sensors
QSM-M5-1/8-I-U-M	Push-in fitting · Push-in fittings
QSM-M5-3/16-I-U-M	Push-in fitting · Push-in fittings
QSLV-M5-6	Push-in L-fitting · Push-in fittings
QSY-M5-4	Push-in Y-fitting · Push-in fittings
QSY-M5-6	Push-in Y-fitting · Push-in fittings
QS-M5-1/4-I-U-M	Push-in fitting · Push-in fittings
GRLA-M5-QS-3-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-D	One-way flow control valve · Function fittings
GRLA-M5-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-M5-QS-6-RS-D	One-way flow control valve · Function fittings
HGL-M5-B	Piloted check valve · Function fittings
HGL-M5-QS-4	Piloted check valve · Function fittings
SMBK-8	Clip · Mounting accessories
SMBN-10	Mounting · Mounting kits for proximity sensors, other sensors
SME-8M-DS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-ZS-24V-K-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-...-	Proximity sensor · Cylinder sensors for direct mounting
SME-8M-DO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMM-8	Positioning element · Mounting accessories
ABP-5-S1	Slot cover · Mounting accessories
SMT-8M-A	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-5,0-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PS-24V-E-0,3-M12	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NS-24V-E-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-PO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-5-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-10-LE-EX6	Proximity sensor · Cylinder sensors for direct mounting
MUP-18/25-P	Central support · Cylinder mountings
NPFC-D-2M5-M	Double nipple · Other connectors
NPFC-R-G18-M5-FM	Reducing nipple · Other connectors
NEAU-A-N8-1	Mounting · Mounting accessories
NEAU-A-N8-2	Mounting · Mounting accessories
SDAS-MHS-M40-1L-PNLK-PN-E-0.3-M8	Position transmitter · Cylinder sensors for direct mounting
SDAS-MHS-M40-1L-PNLK-PN-E-2.5-LE	Position transmitter · Cylinder sensors for direct mounting
NPFC-E1-2M5-FM	Extension · Other connectors
NPFC-R-M5-M3-MF	Reducing nipple · Other connectors
SMT-8M-A-NO-24V-E-2,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SMT-8M-A-NO-24V-E-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
NPFC-DS-M5-M5-M	Double nipple · Other connectors
SMT-8M-A-ZS-24V-E-5,0-OE	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-2.5-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
SDBT-MS-20NL-ZN-E-20-LE-EX6	Proximity switch · Cylinder sensors for direct mounting
