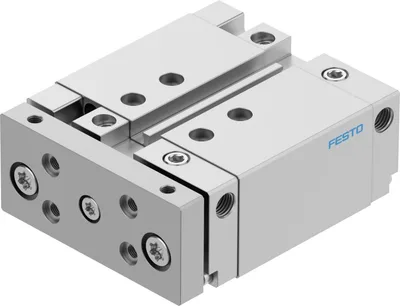

Festo DFM-25-30-B-PPV-A-GF
Guided drive. Drive and guide unit in a single housing. High resistance to torques and lateral forces. Plain or recirculating ball bearing guide. Wide variety of mounting and attachment options. Wide range of variants for customised applications. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs
Stroke30
Piston diameter25 mm
Operating mode, drive unitYoke
Mounting positionAny
GuidePlain-bearing guide
DesignGuidance
About This Product
Guided drive. Drive and guide unit in a single housing. High resistance to torques and lateral forces. Plain or recirculating ball bearing guide. Wide variety of mounting and attachment options. Wide range of variants for customised applications. Variants recommended for production systems for manufacturing lithium-ion batteries. Sustainable thanks to extended life cycle and easier repairs
Festo DFM-25-30-B-PPV-A-GF
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Stroke30
Piston diameter25 mm
Operating mode, drive unitYoke
CushioningPneumatic cushioning, adjustable at both ends
Mounting positionAny
GuidePlain-bearing guide
DesignGuidance
Position detectionVia proximity switch
Operating pressure0.15, 1
Operating pressure1.5, 10
Mode of operationDouble-acting
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Ambient temperature-20, 80
Impact energy in end positions0.3
Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke247
Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke295
alternative connectionsSee product drawing
Pneumatic connectionG1/8
Note on materialsRoHS compliant
Material coverWrought aluminium alloy
Material sealsNBR
Material housingWrought aluminium alloy
Material piston rodHigh-alloy stainless steel
Accessories 338
Genuine accessories that can be used with the Festo DFM-25-30-B-PPV-A-GF motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| VFOE-LE-T-G18-Q8 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q4 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6-P50 | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q4-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q6-F1A | One-way flow control valve · Function fittings | |
| VFOE-LE-T-G18-Q8-F1A | One-way flow control valve · Function fittings | |
| CK-1/8-PK-4 | Quick connector · Quick connectors | |
| CK-1/8-PK-6 | Quick connector · Quick connectors | |
| CK-1/8-PK-3 | Quick connector · Quick connectors | |
| LCK-1/8-PK-3 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-3 | T-quick connector · Quick connectors | |
| LCK-1/8-PK-4 | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6 | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4 | T-quick connector · Quick connectors | |
| TCK-1/8-PK-6 | T-quick connector · Quick connectors | |
| SEU-1/8 | Quick exhaust valve · Function fittings | |
| CK-1/8-PK-3-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-4-KU | Quick connector · Quick connectors | |
| CK-1/8-PK-6-KU | Quick connector · Quick connectors | |
| LCK-1/8-PK-4-KU | Elbow quick connector · Quick connectors | |
| LCK-1/8-PK-6-KU | Elbow quick connector · Quick connectors | |
| TCK-1/8-PK-4-KU | T-quick connector · Quick connectors | |
| TCK-1/8-PK-6-KU | T-quick connector · Quick connectors | |
| GRU-1/8-B | Flow control/silencer · Function fittings | |
| SE-1/8-B | Quick exhaust valve · Function fittings | |
| CN-1/8-PK-3 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-4 | Barbed fitting · Barbed fittings | |
| CN-1/8-PK-6 | Barbed fitting · Barbed fittings | |
| LCN-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCN-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| TCN-1/8-PK-3 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-4 | Barbed T-fitting · Barbed fittings | |
| TCN-1/8-PK-6 | Barbed T-fitting · Barbed fittings | |
| LCNH-1/8-PK-3 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-4 | Barbed elbow fitting · Barbed fittings | |
| LCNH-1/8-PK-6 | Barbed elbow fitting · Barbed fittings | |
| QSW-1/8-4 | Push-in fitting · Push-in fittings | |
| QSW-1/8-6 | Push-in fitting · Push-in fittings | |
| QSW-1/8-8 | Push-in fitting · Push-in fittings | |
| QSL-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSM-1/8-4-100 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-100 | Push-in fitting · Push-in fittings | |
| QSML-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-V0-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSML-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8-100 | Push-in L-fitting, long · Push-in fittings | |
| SME-8-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-S-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| GRLA-1/8-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-PK-3-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-PK-4-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-PK-6-B | One-way flow control valve · Function fittings | |
| GRLA-1/8-RS-B | One-way flow control valve · Function fittings | |
| ABP-5-S | Slot cover · Mounting accessories | |
| SME-8-K-LED-230 | Proximity sensor · Cylinder sensors for direct mounting | |
| QSL-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/8-4-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/8-6-B | Multiple distributor · Push-in fittings | |
| QST3-1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| SME-8-O-K-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| QSL-V0-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/8-8 | Push-in T-fitting · Push-in fittings | |
| SME-8-K-24-S6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-ZS-KL-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8-K5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMB-8E | Mounting kit · Mounting kits for proximity sensors, other sensors | |
| QSL-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/8-6 | Multiple distributor · Push-in fittings | |
| QST3-G1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-G1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-G1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-G1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-G1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSL-1/8-10 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-10 | Push-in T-fitting · Push-in fittings | |
| HAPB-20/25 | Adapter plate kit · Mounting accessories | |
| GRLA-1/8-QS-3-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-4-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-6-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-8-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-3-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-4-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-6-RS-D | One-way flow control valve · Function fittings | |
| HGL-1/8-B | Piloted check valve · Function fittings | |
| HGL-1/8-QS-4 | Piloted check valve · Function fittings | |
| HGL-1/8-QS-6 | Piloted check valve · Function fittings | |
| SME-8-K-7,5-LED-24 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMBK-8 | Clip · Mounting accessories | |
| GRLA-1/8-QS-8-RS-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-6-MF-D | One-way flow control valve · Function fittings | |
| GRLA-1/8-QS-8-MF-D | One-way flow control valve · Function fittings | |
| SMBN-10 | Mounting · Mounting kits for proximity sensors, other sensors | |
| GRLSA-1/8-QS-6 | One-way flow control valve · Function fittings | |
| HGL-1/8-1/8-B | Piloted check valve · Function fittings | |
| SME-8M-DS-24V-K-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-ZS-24V-K-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DS-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-...- | Proximity sensor · Cylinder sensors for direct mounting | |
| SME-8M-DO-24V-K-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| VBQF-U-G18-E | Quick exhaust valve · Function fittings | |
| VBQF-U-G18-Q6 | Quick exhaust valve · Function fittings | |
| VBQF-D-G18-E | Quick exhaust valve · Function fittings | |
| VBQF-D-G18-Q6 | Quick exhaust valve · Function fittings | |
| SMM-8 | Positioning element · Mounting accessories | |
| SMAT-8M-U-E-0,3-M8D | Position transmitter · Cylinder sensors for direct mounting | |
| SMT-8-SL-PS-LED-24-B | Proximity sensor · Cylinder sensors for direct mounting | |
| DHAA-D-L-32-G7-20 | Adapter kit · Mounting accessories | |
| DHAA-D-L-40-G7-25 | Adapter kit · Mounting accessories | |
| SMT-8M-A | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-5,0-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PS-24V-E-0,3-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NS-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NS-24V-E-0,3-M8D | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-PO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| VFOH-LE-A-G18-Q4 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G18-Q6 | One-way flow control valve · Function fittings | |
| VFOH-LE-A-G18-Q8 | One-way flow control valve · Function fittings | |
| SDBT-MS-20NL-ZN-E-5-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-10-LE-EX6 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-BSW-1L-NU-W-0.3-N-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-BSW-1L-PU-W-5-N-LE | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-BSW-1L-NU-W-5-N-LE | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-BSW-1L-PU-W-0.3-N-M12 | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-L-2G18-F | Elbow fitting · Other connectors | |
| NPFC-L-R18-G18-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R18-M | Elbow fitting · Other connectors | |
| NPFC-Y-R18-2G18-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G18-F | T-fitting · Other connectors | |
| NPFC-T-R18-2G18-MFF | T-fitting · Other connectors | |
| NPFC-T-2G18-R18-FMF | T-fitting · Other connectors | |
| NPFC-T-G18-2R18-FMM | T-fitting · Other connectors | |
| NPFC-T-2R18-G18-MMF | T-fitting · Other connectors | |
| NPFC-D-M7-G18-M | Double nipple · Other connectors | |
| NPFC-D-2G18-M | Double nipple · Other connectors | |
| NPFC-D-2R18-M | Double nipple · Other connectors | |
| NPFC-S-2G18-F | Coupling sleeve · Other connectors | |
| NPFC-R-G38-G18-F | Reducing coupling · Other connectors | |
| NPFC-E1-2G18-FM | Extension · Other connectors | |
| NPFC-E2-2G18-FM | Extension · Other connectors | |
| NPFC-E3-2G18-FM | Extension · Other connectors | |
| NPFC-E4-2G18-FM | Extension · Other connectors | |
| NPFC-R-G14-G18-MF | Reducing nipple · Other connectors | |
| NPFC-R-G38-G18-MF | Reducing nipple · Other connectors | |
| NPFC-R-G14-G18-FM | Reducing nipple · Other connectors | |
| NPFC-R-G38-G18-FM | Reducing nipple · Other connectors | |
| NEAU-A-N8-1 | Mounting · Mounting accessories | |
| NEAU-A-N8-2 | Mounting · Mounting accessories | |
| SDBT-MSX-1L-PU-E-0.3-N-M8 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MSX-1L-PU-E-2.5-N-LE | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MSX-1L-PU-E-5-N-LE | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MSX-1L-NU-E-0.3-N-M8 | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MSX-1L-NU-E-2.5-N-LE | Proximity sensor · Cylinder sensors for direct mounting | |
| SDBT-MSX-1L-NU-E-5-N-LE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-D-M5-G18-M | Double nipple · Other connectors | |
| NPFC-D-2G18-M-P100 | Double nipple · Other connectors | |
| NPFC-R-G14-G18-F | Reducing coupling · Other connectors | |
| NPFC-R-G12-G18-F | Reducing coupling · Other connectors | |
| NPFC-R-G14-G18-MF-P100 | Reducing nipple · Other connectors | |
| NPFC-H-G18-F | Bulkhead fitting · Other connectors | |
| NPFC-D-2G18-M-F1A | Double nipple · Other connectors | |
| ZBH-9-B | Centring sleeve · Mounting accessories | |
| SMT-8M-A-NO-24V-E-2,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| SMT-8M-A-NO-24V-E-7,5-OE | Proximity sensor · Cylinder sensors for direct mounting | |
| NPFC-DS-G18-G18-M | Double nipple · Other connectors | |
| NPFC-DS-G18-G14-M | Double nipple · Other connectors | |
| NPFC-RS-G14-G18-MF | Reducing nipple · Other connectors | |
| NPFC-RS-G38-G18-MF | Reducing nipple · Other connectors | |
| ZBH-7-B | Centring sleeve · Mounting accessories | |
| SDBT-MSB-1L-PU-K-2-LE | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MSB-1L-NU-K-2-LE | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MSB-1L-PU-K-0.3-M8 | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MSB-1L-NU-K-0.3-M8 | Proximity switch · Cylinder sensors for direct mounting | |
| SMT-8M-A-ZS-24V-E-5,0-OE | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-2.5-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MS-20NL-ZN-E-20-LE-EX6 | Proximity switch · Cylinder sensors for direct mounting | |
| SDBT-MSX-1L-PU-E-0.3-N-M12 | Proximity switch · Cylinder sensors for direct mounting |
Related Products
View Details
Festo
SLM-16- -KF-A 32782
MFR #SLM-16- -KF-A
SKU #YLS7MOHSD6T62FF
View Details
Festo
SLM-20- -KF-A 32783
MFR #SLM-20- -KF-A
SKU #YLS251YV9PRQXII
View Details
Festo
SLM-25- -KF-A 32784
MFR #SLM-25- -KF-A
SKU #YLSQPCXDEZVK5XF
View Details
Festo
SLM-32- -KF-A 32785
MFR #SLM-32- -KF-A
SKU #YLSBSFT5LBD4HEK
View Details
Festo
SLM-40- -KF-A 32786
MFR #SLM-40- -KF-A
SKU #YLSILI4KCHUWY1M
View Details
Festo
ADVU-125- -P-A 175759
MFR #ADVU-125- -P-A
SKU #YLSA9PBAQRLCV6X
View Details
Festo
ADVU-125- -A-P-A 175771
MFR #ADVU-125- -A-P-A
SKU #YLSR8LHHCJT3NU9
View Details
Festo
AEN-12- -
MFR #AEN-12- -
SKU #YLSVEWSV7OYHYR1
View Details
Festo
AEN-16- -
MFR #AEN-16- -
SKU #YLSRM0OM88NTMWM
Featured Products
View Details
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
View Details
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
View Details
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Related Searches
Festo DFM-25-30-B-PPV-A-GF priceFesto DFM-25-30-B-PPV-A-GF quotebuy Festo DFM-25-30-B-PPV-A-GFDFM-25-30-B-PPV-A-GF priceDFM-25-30-B-PPV-A-GF stock availabilityFesto spare partsFesto DFM-25-30-B-PPV-A-GF equivalentFesto DFM-25-30-B-PPV-A-GF specifications
