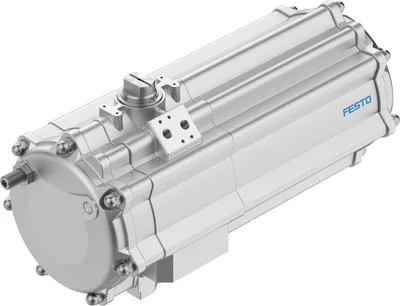

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO DAPS-1440-090-RS2-F16-T6

Quarter turn actuator. High breakaway torques. Sustainable thanks to extended life cycle and easier repairs. Flange hole pattern to ISO 5211. Mounting hole pattern to VDI/VDE 3845. Optionally with handwheel as a manual emergency override. Corrosion-resistant version made from stainless steel. To EU Explosion Protection Directive (ATEX). With safety functions

FESTOMFR # DAPS-1440-090-RS2-F16-T6SKU # CEY-937FC781E367

Size of valve actuator1440

Flange hole patternF16

Swivel angle90

End-position adjustment range at 0°-5, 5

Shaft connection depth49.5

Fitting connection conforms to standardISO 5211

Have questions?Chat on WhatsApp

About This Product

FESTO DAPS-1440-090-RS2-F16-T6

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size of valve actuator1440

Flange hole patternF16

Swivel angle90

End-position adjustment range at 0°-5, 5

End-position adjustment range at nominal swivel angle85, 95

Shaft connection depth49.5

Fitting connection conforms to standardISO 5211

CushioningNo cushioning

Mounting positionAny

Mode of operationSingle-acting

DesignScotch yoke system

Position detectionNone

Closing directionCloses to the right

Symbol00991266

Valve connection conforms to standardVDI/VDE 3845 (NAMUR)

Safety Integrity Level (SIL)up to SIL 2 Low Demand mode

Supply pressure for spring strength0.35

Supply pressure for spring strength3.5

Operating pressure0.35, 0.84

Operating pressure3.5, 8.4

Nominal operating pressure0.56

Nominal operating pressure5.6

Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)1

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Certificate issuing authorityGerman Technical Control Board North (TÜV Nord) 212170801

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T6...T3 Gb X

Explosion ignition protection type for dustEx h IIIC T85°C...T200°C Db X

Explosion ambient temperature-50°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-50, 60

Torque at nominal operating pressure and 0° swivel angle1800

Torque at nominal operating pressure and 50° swivel angle990

Torque at nominal operating pressure and 90° swivel angle1500

Note on torqueThe operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling.

Spring return torque at 0° swivel angle600

Spring return torque at 50° swivel angle450

Spring return torque at 90° swivel angle900

Spring strength2

Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°77

Product weight74000

Shaft connectionT46

Pneumatic connectionG3/8

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsFVMQ, PTFE-reinforced

Material housingWrought aluminium alloy

Material screwsHigh-alloy steel

Material shaftHigh-alloy steel

Material number shaft1,4305

Accessories 311

Genuine accessories that can be used with the FESTO DAPS-1440-090-RS2-F16-T6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DASB-P1-HC-SB	Adapter kit · Mounting accessories
QSW-3/8-10	Push-in fitting · Push-in fittings
QSW-3/8-12	Push-in fitting · Push-in fittings
QS-3/8-8-50	Push-in fitting · Push-in fittings
QS-3/8-10-50	Push-in fitting · Push-in fittings
QS-3/8-12-20	Push-in fitting · Push-in fittings
QSL-3/8-8-50	Push-in L-fitting · Push-in fittings
QSL-3/8-10-20	Push-in L-fitting · Push-in fittings
QSL-3/8-12-20	Push-in L-fitting · Push-in fittings
QST-3/8-8-50	Push-in T-fitting · Push-in fittings
QST-3/8-10-20	Push-in T-fitting · Push-in fittings
QST-3/8-12-20	Push-in T-fitting · Push-in fittings
QS-G3/8-8-50	Push-in fitting · Push-in fittings
QS-G3/8-10-50	Push-in fitting · Push-in fittings
QS-G3/8-12-20	Push-in fitting · Push-in fittings
QSL-G3/8-8-50	Push-in L-fitting · Push-in fittings
QSL-G3/8-10-20	Push-in L-fitting · Push-in fittings
QSL-G3/8-12-20	Push-in L-fitting · Push-in fittings
QST-G3/8-8-50	Push-in T-fitting · Push-in fittings
QST-G3/8-10-20	Push-in T-fitting · Push-in fittings
QST-G3/8-12-20	Push-in T-fitting · Push-in fittings
QS-3/8-8	Push-in fitting · Push-in fittings
QS-3/8-10	Push-in fitting · Push-in fittings
QS-3/8-12	Push-in fitting · Push-in fittings
QS-3/8-8-I	Push-in fitting · Push-in fittings
QS-3/8-10-I	Push-in fitting · Push-in fittings
QS-3/8-12-I	Push-in fitting · Push-in fittings
QSL-3/8-8	Push-in L-fitting · Push-in fittings
QSL-3/8-10	Push-in L-fitting · Push-in fittings
QSL-3/8-12	Push-in L-fitting · Push-in fittings
QSLL-3/8-8	Push-in L-fitting, long · Push-in fittings
QSLL-3/8-10	Push-in L-fitting, long · Push-in fittings
QSLL-3/8-12	Push-in L-fitting, long · Push-in fittings
QSLV-3/8-8	Push-in L-fitting · Push-in fittings
QSLV-3/8-10	Push-in L-fitting · Push-in fittings
QSLV-3/8-12	Push-in L-fitting · Push-in fittings
QSLV-3/8-8-I	Push-in L-fitting · Push-in fittings
QSLV-3/8-10-I	Push-in L-fitting · Push-in fittings
QSLV-3/8-12-I	Push-in L-fitting · Push-in fittings
QST-3/8-8	Push-in T-fitting · Push-in fittings
QST-3/8-10	Push-in T-fitting · Push-in fittings
QST-3/8-12	Push-in T-fitting · Push-in fittings
QSTL-3/8-8	Push-in T-fitting · Push-in fittings
QSTL-3/8-10	Push-in T-fitting · Push-in fittings
QSTL-3/8-12	Push-in T-fitting · Push-in fittings
QSY-3/8-8	Push-in Y-fitting · Push-in fittings
QSY-3/8-10	Push-in Y-fitting · Push-in fittings
QSY-3/8-12	Push-in Y-fitting · Push-in fittings
QSYL-3/8-8	Push-in Y-fitting · Push-in fittings
QSYL-3/8-10	Push-in Y-fitting · Push-in fittings
QSYL-3/8-12	Push-in Y-fitting · Push-in fittings
QSTF-3/8-8-B	Push-in T-fitting · Push-in fittings
QSTF-3/8-10-B	Push-in T-fitting · Push-in fittings
QSTF-3/8-12-B	Push-in T-fitting · Push-in fittings
QSYLV-3/8-10	Push-in Y-fitting · Push-in fittings
QSYTF-3/8-10-B	Multiple distributor · Push-in fittings
QST3-3/8-10-8	Multiple distributor · Push-in fittings
QSLV2-3/8-8	Multiple distributor · Push-in fittings
QSLV2-3/8-10	Multiple distributor · Push-in fittings
QSLV2-3/8-12	Multiple distributor · Push-in fittings
QSLV3-3/8-8	Multiple distributor · Push-in fittings
QSLV3-3/8-10	Multiple distributor · Push-in fittings
QSLV3-3/8-12	Multiple distributor · Push-in fittings
QSLV4-3/8-8	Multiple distributor · Push-in fittings
QSLV4-3/8-10	Multiple distributor · Push-in fittings
QSLV4-3/8-12	Multiple distributor · Push-in fittings
QSLV6-3/8-8	Multiple distributor · Push-in fittings
QSLV6-3/8-10	Multiple distributor · Push-in fittings
QSLV6-3/8-12	Multiple distributor · Push-in fittings
QSR-3/8-8	Push-in fitting, rotatable · Push-in fittings
QSR-3/8-10	Push-in fitting, rotatable · Push-in fittings
QSR-3/8-12	Push-in fitting, rotatable · Push-in fittings
QSRL-3/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSRL-3/8-10	Push-in L-fitting, rotatable · Push-in fittings
QSRL-3/8-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-3/8-8	Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-10	Push-in fitting, self-sealing · Push-in fittings
QSK-3/8-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-3/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-3/8-10	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-3/8-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-3/8-8	Push-in fitting · Push-in fittings
QS-V0-3/8-10	Push-in fitting · Push-in fittings
QS-V0-3/8-12	Push-in fitting · Push-in fittings
QSL-V0-3/8-8	Push-in L-fitting · Push-in fittings
QSL-V0-3/8-10	Push-in L-fitting · Push-in fittings
QSL-V0-3/8-12	Push-in L-fitting · Push-in fittings
QST-V0-3/8-8	Push-in T-fitting · Push-in fittings
QST-V0-3/8-10	Push-in T-fitting · Push-in fittings
QST-V0-3/8-12	Push-in T-fitting · Push-in fittings
QS-3/8-16	Push-in fitting · Push-in fittings
QSL-3/8-16	Push-in L-fitting · Push-in fittings
QST-3/8-16	Push-in T-fitting · Push-in fittings
QS-3/8-5/16-I-U-M	Push-in fitting · Push-in fittings
QS-3/8-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-G3/8-8	Push-in fitting · Push-in fittings
QS-G3/8-10	Push-in fitting · Push-in fittings
QS-G3/8-12	Push-in fitting · Push-in fittings
QS-G3/8-8-I	Push-in fitting · Push-in fittings
QS-G3/8-10-I	Push-in fitting · Push-in fittings
QS-G3/8-12-I	Push-in fitting · Push-in fittings
QSL-G3/8-8	Push-in L-fitting · Push-in fittings
QSL-G3/8-10	Push-in L-fitting · Push-in fittings
QSL-G3/8-12	Push-in L-fitting · Push-in fittings
QSLL-G3/8-8	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-10	Push-in L-fitting, long · Push-in fittings
QSLL-G3/8-12	Push-in L-fitting, long · Push-in fittings
QSLV-G3/8-8	Push-in L-fitting · Push-in fittings
QSLV-G3/8-10	Push-in L-fitting · Push-in fittings
QSLV-G3/8-12	Push-in L-fitting · Push-in fittings
QSLV-G3/8-8-I	Push-in L-fitting · Push-in fittings
QSLV-G3/8-10-I	Push-in L-fitting · Push-in fittings
QSLV-G3/8-12-I	Push-in L-fitting · Push-in fittings
QST-G3/8-8	Push-in T-fitting · Push-in fittings
QST-G3/8-10	Push-in T-fitting · Push-in fittings
QST-G3/8-12	Push-in T-fitting · Push-in fittings
QSTL-G3/8-8	Push-in T-fitting · Push-in fittings
QSTL-G3/8-10	Push-in T-fitting · Push-in fittings
QSTL-G3/8-12	Push-in T-fitting · Push-in fittings
QSY-G3/8-8	Push-in Y-fitting · Push-in fittings
QSY-G3/8-10	Push-in Y-fitting · Push-in fittings
QSY-G3/8-12	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-8	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-10	Push-in Y-fitting · Push-in fittings
QSYL-G3/8-12	Push-in Y-fitting · Push-in fittings
QSTF-G3/8-8	Push-in T-fitting · Push-in fittings
QSTF-G3/8-10	Push-in T-fitting · Push-in fittings
QSTF-G3/8-12	Push-in T-fitting · Push-in fittings
QSYLV-G3/8-10	Push-in Y-fitting · Push-in fittings
QSYTF-G3/8-10	Multiple distributor · Push-in fittings
QST3-G3/8-10-8	Multiple distributor · Push-in fittings
QSLV2-G3/8-8	Multiple distributor · Push-in fittings
QSLV2-G3/8-10	Multiple distributor · Push-in fittings
QSLV2-G3/8-12	Multiple distributor · Push-in fittings
QSLV3-G3/8-8	Multiple distributor · Push-in fittings
QSLV3-G3/8-10	Multiple distributor · Push-in fittings
QSLV3-G3/8-12	Multiple distributor · Push-in fittings
QSLV4-G3/8-8	Multiple distributor · Push-in fittings
QSLV4-G3/8-10	Multiple distributor · Push-in fittings
QSLV4-G3/8-12	Multiple distributor · Push-in fittings
QSLV6-G3/8-8	Multiple distributor · Push-in fittings
QSLV6-G3/8-10	Multiple distributor · Push-in fittings
QSLV6-G3/8-12	Multiple distributor · Push-in fittings
QSR-G3/8-8	Push-in fitting, rotatable · Push-in fittings
QSR-G3/8-10	Push-in fitting, rotatable · Push-in fittings
QSR-G3/8-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G3/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G3/8-10	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G3/8-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G3/8-8	Push-in fitting, self-sealing · Push-in fittings
QSK-G3/8-10	Push-in fitting, self-sealing · Push-in fittings
QSK-G3/8-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G3/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G3/8-10	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G3/8-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G3/8-8	Push-in fitting · Push-in fittings
QS-V0-G3/8-10	Push-in fitting · Push-in fittings
QS-V0-G3/8-12	Push-in fitting · Push-in fittings
QSL-V0-G3/8-8	Push-in L-fitting · Push-in fittings
QSL-V0-G3/8-10	Push-in L-fitting · Push-in fittings
QSL-V0-G3/8-12	Push-in L-fitting · Push-in fittings
QST-V0-G3/8-8	Push-in T-fitting · Push-in fittings
QST-V0-G3/8-10	Push-in T-fitting · Push-in fittings
QST-V0-G3/8-12	Push-in T-fitting · Push-in fittings
QS-G3/8-16	Push-in fitting · Push-in fittings
QSL-G3/8-16	Push-in L-fitting · Push-in fittings
QST-G3/8-16	Push-in T-fitting · Push-in fittings
QS-3/8-6	Push-in fitting · Push-in fittings
QSL-3/8-6	Push-in L-fitting · Push-in fittings
QSLL-3/8-6	Push-in L-fitting, long · Push-in fittings
QST-3/8-6	Push-in T-fitting · Push-in fittings
NVF3-MOH-5/2-K-1/4	Solenoid valve · Valves
NVF3-MOH-5/2-K-1/4-EX	Solenoid valve · Valves
NVF3-MOH-5/2-K..+MSFW-230	Solenoid valve · Valves
NVF3-MOH-5/2-K..+MSFW-110	Solenoid valve · Valves
NVF3-MOH-5/2-K..+MSFG-24	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-F8	Solenoid valve · Valves
VSNC-F-B52-D-G14-F8	Solenoid valve · Valves
VSNC-F-P53C-MD-G14-F8	Solenoid valve · Valves
VSNC-F-P53U-MD-G14-F8	Solenoid valve · Valves
VSNC-F-P53E-MD-G14-F8	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-F8	Solenoid valve · Valves
VSNC-F-B52-D-N14-F8	Solenoid valve · Valves
VSNC-F-P53C-MD-N14-F8	Solenoid valve · Valves
VSNC-F-P53U-MD-N14-F8	Solenoid valve · Valves
VSNC-F-P53E-MD-N14-F8	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN	Solenoid valve · Valves
VSNC-F-B52-D-G14-FN	Solenoid valve · Valves
VSNC-F-P53C-MD-G14-FN	Solenoid valve · Valves
VSNC-F-P53U-MD-G14-FN	Solenoid valve · Valves
VSNC-F-P53E-MD-G14-FN	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-FN	Solenoid valve · Valves
VSNC-F-B52-D-N14-FN	Solenoid valve · Valves
VSNC-F-P53C-MD-N14-FN	Solenoid valve · Valves
VSNC-F-P53U-MD-N14-FN	Solenoid valve · Valves
VSNC-F-P53E-MD-N14-FN	Solenoid valve · Valves
VSNC-FTC-M52-MD-G14-FN	Solenoid valve · Valves
VSNC-FT-B52-D-G14-FN	Solenoid valve · Valves
VSNC-FTC-M52-MD-N14-FN	Solenoid valve · Valves
VSNC-FT-B52-D-N14-FN	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-F-B52-D-G14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-F-B52-D-N14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-F8-1B2	Solenoid valve · Valves
VSNC-F-B52-D-G14-F8-1B2	Solenoid valve · Valves
VSNC-FTC-M52-MD-G14-FN-1A1	Solenoid valve · Valves
VSNC-FT-B52-D-G14-FN-1A1	Solenoid valve · Valves
DARQ-K-P-A2-F05-30-R1	Mounting flange adapter · Mounting kits for proximity sensors, other sensors
SRBE-CA3-YR90-MW-22A-1W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-1W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-22A-1W-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-P-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-N-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-ZU-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-R-2A-1W-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBG-C1-N-1-AS-M12-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-P-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-ZU-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-20N-ZC-M12-EX5	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-P-C2-C2	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-ZU-C2-C2	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-20N-ZC-C2-C2-EX5	Sensorbox · Cylinder sensors for direct mounting
DARQ-K-X1-A2-F05-30-R1	Mounting flange adapter · Mounting kits for proximity sensors, other sensors
CMSX-P-S-C-U-F1-S-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-S-C-U-F1-S-50-A	Positioner · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-1W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
VOFC-LT-M32C-M-FG14-F19	Valve · Valves
VOFC-LT-M32C-M-FG14-F19A	Valve · Valves
VOFC-LT-M32C-MC-FGP14-F19	Valve · Valves
VOFC-LT-M32C-MC-FGP14-F19A	Valve · Valves
VOFC-LT-M32C-M-FG12-F19	Valve · Valves
VOFC-LT-M32C-M-FG12-F19A	Valve · Valves
VOFC-L-M52-M-FG14-F19	Valve · Valves
VOFC-L-M52-M-FG14-F19A	Valve · Valves
VOFC-L-B52-FG14-F19	Valve · Valves
VOFC-L-B52-FG14-F19A	Valve · Valves
VOFD-L50T-M32-MN-FG14-10-F10	Valve · Valves
VOFD-L50T-M32-MN-FGP14-10-F10	Valve · Valves
VOFC-LT-M32C-MC-FG13-F19	Valve · Valves
VOFC-LT-M32C-MC-FG13-F19A	Valve · Valves
VSNC	Solenoid valve · Valves
NPFC-T-2G38-R38-FMF	T-fitting · Other connectors
NPFC-T-G38-2R38-FMM	T-fitting · Other connectors
NPFC-D-2G38-M	Double nipple · Other connectors
NPFC-E1-2G38-FM	Extension · Other connectors
NPFC-R-G38-G18-MF	Reducing nipple · Other connectors
NPFC-R-G38-G14-MF	Reducing nipple · Other connectors
NPFC-R-G38-G18-FM	Reducing nipple · Other connectors
NPFC-R-G38-G14-FM	Reducing nipple · Other connectors
NPFC-D-2G38-M-P50	Double nipple · Other connectors
NPFC-R-G38-G14-MF-P50	Reducing nipple · Other connectors
VSNC-FC-M52-MD-G14-F8-1A1	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-1A1+G	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-3AA1+G	Solenoid valve · Valves
DARQ-R-A-S46-S36-46	Reducing sleeve (square) · Mounting accessories
SRBC-CA3-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-N-20N-ZC-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-1-1WG-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-20N-ZC-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-P-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-N-20N-ZC-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
NPFC-DS-G14-G38-M	Double nipple · Other connectors
NPFC-DS-G38-G38-M	Double nipple · Other connectors
NPFC-RS-G38-G18-MF	Reducing nipple · Other connectors
NPFC-RS-G38-G14-MF	Reducing nipple · Other connectors
CMSX-P-SE-C-U-F1-S-130-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-S-50-A	Positioner · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-ZU-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-R-2A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-P-M12	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-N-1-ZU-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-R-2A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1WG-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-1-1WG-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
DARQ-R-A-S46-S27-46	Reducing sleeve · Mounting accessories
DARQ-R-A-S46-S22-46	Reducing sleeve · Mounting accessories
