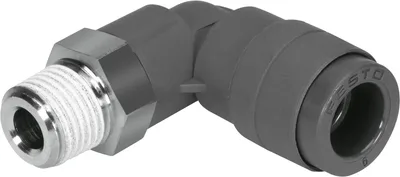

FESTO QSL-V0-3/8-12

Push-in L-fitting. PBT, reinforced. Resistant to welding spatter. For use in all areas where there is a risk of fire. Reliable even for applications in close proximity to welding spatter. Operating medium: compressed air, vacuum, water. Straight design, L-shaped, T-shaped

FESTOMFR # QSL-V0-3/8-12SKU # CEY-937FC7824BE0

SizeStandard

Nominal size10

Type of seal on screwed plugCoating

DesignL-shape

Size of pack1

DesignPush-pull principle

Have questions?Chat on WhatsApp

About This Product

FESTO QSL-V0-3/8-12

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size10

Fire test materialUL94 V-0 (housing), UL94 V-0 (releasing ring)

Type of seal on screwed plugCoating

DesignL-shape

Size of pack1

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 1

Operating pressure complete temperature range-0.95, 10

Operating pressure complete temperature range-13.775, 145

Note on operating pressureWater: max. 0.6 MPa at max. 50°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature0, 60

Product weight40

Type of mountingExternal hex SW17

Pneumatic connection, port 1Male thread R3/8

Pneumatic connection, port 2For tubing outer diameter of 12 mm

Colour of release ringBlack

Material screwed plugNickel-plated brass

Note on materialsRoHS compliant

Material housingPBT

Material release ringPBT

Material tubing sealNBR

Material tubing clamp componentHigh-alloy stainless steel, Brass

Accessories 46

Genuine accessories that can be used with the FESTO QSL-V0-3/8-12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PAN-V0-12X1,5-SW	Plastic tubing · Tubing
PUN-H-12X2-NT	Plastic tubing · Tubing
PUN-H-12X2-BL	Plastic tubing · Tubing
PUN-H-12X2-SW	Plastic tubing · Tubing
PAN-V0-12X1,5-BL	Plastic tubing · Tubing
PAN-V0-12X1,5-GN	Plastic tubing · Tubing
PAN-V0-12X1,5-RT	Plastic tubing · Tubing
PAN-V0-12X1,5-WS	Plastic tubing · Tubing
PAN-V0-12X1,5-GE	Plastic tubing · Tubing
PUN	Plastic tubing · Tubing
PAN	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PLN	Plastic tubing · Tubing
PUN-H-12X2-SW-200	Plastic tubing · Tubing
PUN-H-12X2-BL-200	Plastic tubing · Tubing
PUN-H-12X2-NT-200	Plastic tubing · Tubing
PUN-H-12X2-SI-200	Plastic tubing · Tubing
PUN-H-12X2-SI	Plastic tubing · Tubing
PUN-H-12X2-RT	Plastic tubing · Tubing
PUN-H-12X2-GN	Plastic tubing · Tubing
PUN-H-12X2-GE	Plastic tubing · Tubing
PUN-H-12X2-TBL	Plastic tubing · Tubing
PUN-H-12X2-TBL-200	Plastic tubing · Tubing
PUN-H-12X2-TSW	Plastic tubing · Tubing
PUN-H-12X2-TSW-200	Plastic tubing · Tubing
PUN-H-12X2-TRT	Plastic tubing · Tubing
PUN-H-12X2-TRT-200	Plastic tubing · Tubing
PUN-H-12X2-TGN	Plastic tubing · Tubing
PUN-H-12X2-TGN-200	Plastic tubing · Tubing
PUN-H-12X2-TGE	Plastic tubing · Tubing
PUN-H-12X2-TGE-200	Plastic tubing · Tubing
PUN-H-F-12X2-NT	Plastic tubing · Tubing
PUN-H-F-12X2-RT	Plastic tubing · Tubing
PUN-H-F-12X2-BL	Plastic tubing · Tubing
PUN-H-F-12X2-TBL	Plastic tubing · Tubing
PUN-H-F-12X2-GN	Plastic tubing · Tubing
PUN-H-F-12X2-GE	Plastic tubing · Tubing
PUN-H-F-12X2-SW	Plastic tubing · Tubing
PUN-H-SF-12X2,3-SW	Plastic tubing · Tubing
PUN-H-SF-12X2,3-BL	Plastic tubing · Tubing
PUN-H-12X2-BL-25	Plastic tubing · Tubing
PUN-H-12X2-SW-25	Plastic tubing · Tubing
PUN-H-12X2-RT-25	Plastic tubing · Tubing
PUN-H-12X2-TBL-25	Plastic tubing · Tubing
PUN-H-LC-12X2-BL	Plastic tubing · Tubing
PUN-H-LC-12X2-HBL	Plastic tubing · Tubing
