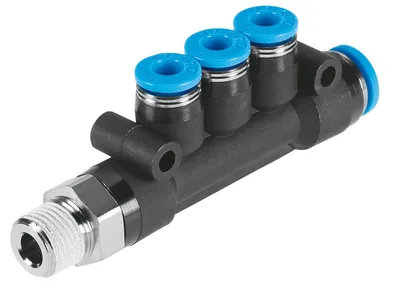

FESTO QST3-3/8-10-8

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO QST3-3/8-10-8

Multiple distributor. PBT and nickel-plated brass. Rotatable 360°. Reducing design. Operating media: compressed air, vacuum, (water). Straight design, L-shaped, T-shaped

FESTOMFR # QST3-3/8-10-8SKU # CEY-937FC7825C30
SizeStandard
Nominal size6.7
Tubing insertion depth20.2
Note on the tubing insertion depthØ8 depth 18.1 mm, Ø10 depth 20.2 mm
Type of seal on screwed plugCoating
Mounting positionAny
Share
Have questions?Chat on WhatsApp

About This Product

Multiple distributor. PBT and nickel-plated brass. Rotatable 360°. Reducing design. Operating media: compressed air, vacuum, (water). Straight design, L-shaped, T-shaped

FESTO QST3-3/8-10-8

  • Genuine, certified FESTO product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size6.7
Tubing insertion depth20.2
Note on the tubing insertion depthØ8 depth 18.1 mm, Ø10 depth 20.2 mm
Type of seal on screwed plugCoating
Mounting positionAny
DesignPush-pull principle
Size of pack1
Operating pressure complete temperature range-0.095, 0.6
Operating pressure complete temperature range-0.95, 6
Operating pressure complete temperature range-13.775, 87
Temperature-dependent operating pressure-0.095, 1.4
Temperature-dependent operating pressure-0.95, 14
Temperature-dependent operating pressure-13.775, 203
Note on operating pressureWater: max. 0.6 MPa at 0 - 50 °C
Maritime classificationSee certificate
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10, 80
Product weight50
Number of outputs4
Number of supply lines1
Pneumatic connection, port 1Male thread R3/8
Pneumatic connection, port 2For tubing outside diameter of 8 mm, For tubing outside diameter of 10 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingPBT
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel

Accessories 108

Genuine accessories that can be used with the FESTO QST3-3/8-10-8 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
PUN-8X1,25-SIPlastic tubing · Tubing
PAN-8X1,25-SIPlastic tubing · Tubing
PUN-8X1,25-DUO-SIDUO tubing · Tubing
QSORelease tool · General accessories
PUN-8X1,25-BLPlastic tubing · Tubing
PUN-8X1,25-SWPlastic tubing · Tubing
PUN-8X1,25-DUO-BSDUO tubing · Tubing
PUN-8X1,25-RTPlastic tubing · Tubing
PUN-8X1,25-GEPlastic tubing · Tubing
PUN-8X1,25-GNPlastic tubing · Tubing
PUN-H-8X1,25-NTPlastic tubing · Tubing
PUN-H-10X1,5-NTPlastic tubing · Tubing
PUN-H-8X1,25-BLPlastic tubing · Tubing
PUN-H-10X1,5-BL Plastic tubing · Tubing
PUN-H-8X1,25-SWPlastic tubing · Tubing
PUN-H-10X1,5-SWPlastic tubing · Tubing
PUN-H-8X1,25-DUODUO tubing · Tubing
PUN-8X1,25-S-1-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-2-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-6-BLSpiral plastic tubing · Tubing
PUN-8X1,25-S-1-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-2-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-6-SWSpiral plastic tubing · Tubing
PUN-8X1,25-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-S-2-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-S-6-DUO-BSDUO spiral plastic tubing · Tubing
PUN-8X1,25-SI-400Plastic tubing · Tubing
PUN-8X1,25-BL-400Plastic tubing · Tubing
PEN-8X1,25-SWPlastic tubing · Tubing
PEN-8X1,25-NTPlastic tubing · Tubing
PAN-8X1,25-NTPlastic tubing · Tubing
PEN-8X1,25-SW-400Plastic tubing · Tubing
PEN-8X1,25-BL-400Plastic tubing · Tubing
PEN-8X1,25-SI-400Plastic tubing · Tubing
PEN-8X1,25-BLPlastic tubing · Tubing
PEN-8X1,25-SIPlastic tubing · Tubing
PEN-8X1,25-GNPlastic tubing · Tubing
PEN-8X1,25-RTPlastic tubing · Tubing
PEN-8X1,25-GEPlastic tubing · Tubing
PUNPlastic tubing · Tubing
PANPlastic tubing · Tubing
PENPlastic tubing · Tubing
PLNPlastic tubing · Tubing
PAN-8X1,25-SI-400Plastic tubing · Tubing
PAN-8X1,25-BL-400Plastic tubing · Tubing
PAN-8X1,25-SW-400Plastic tubing · Tubing
PAN-8X1,25-BLPlastic tubing · Tubing
PAN-8X1,25-SWPlastic tubing · Tubing
PAN-8X1,25-GNPlastic tubing · Tubing
PAN-8X1,25-RTPlastic tubing · Tubing
PAN-8X1,25-GEPlastic tubing · Tubing
PUN-8X1,25-SW-400Plastic tubing · Tubing
PUN-H-8X1,25-SW-400Plastic tubing · Tubing
PUN-H-10X1,5-SW-300Plastic tubing · Tubing
PUN-H-8X1,25-BL-400Plastic tubing · Tubing
PUN-H-10X1,5-BL-300Plastic tubing · Tubing
PUN-H-8X1,25-NT-400Plastic tubing · Tubing
PUN-H-10X1,5-NT-300Plastic tubing · Tubing
PUN-H-8X1,25-SI-400Plastic tubing · Tubing
PUN-H-10X1,5-SI-300Plastic tubing · Tubing
PUN-H-8X1,25-SIPlastic tubing · Tubing
PUN-H-10X1,5-SIPlastic tubing · Tubing
PUN-H-8X1,25-RTPlastic tubing · Tubing
PUN-H-10X1,5-RTPlastic tubing · Tubing
PUN-H-8X1,25-GNPlastic tubing · Tubing
PUN-H-10X1,5-GNPlastic tubing · Tubing
PUN-H-8X1,25-GEPlastic tubing · Tubing
PUN-H-10X1,5-GEPlastic tubing · Tubing
PUN-H-8X1,25-TBLPlastic tubing · Tubing
PUN-H-8X1,25-TBL-400Plastic tubing · Tubing
PUN-H-8X1,25-TSWPlastic tubing · Tubing
PUN-H-8X1,25-TSW-400Plastic tubing · Tubing
PUN-H-8X1,25-TRTPlastic tubing · Tubing
PUN-H-8X1,25-TRT-400Plastic tubing · Tubing
PUN-H-8X1,25-TGNPlastic tubing · Tubing
PUN-H-8X1,25-TGN-400Plastic tubing · Tubing
PUN-H-8X1,25-TGEPlastic tubing · Tubing
PUN-H-8X1,25-TGE-400Plastic tubing · Tubing
PUN-H-10X1,5-TBL Plastic tubing · Tubing
PUN-H-10X1,5-TBL-300Plastic tubing · Tubing
PUN-H-10X1,5-TSWPlastic tubing · Tubing
PUN-H-10X1,5-TSW-300Plastic tubing · Tubing
PUN-H-10X1,5-TRTPlastic tubing · Tubing
PUN-H-10X1,5-TRT-300Plastic tubing · Tubing
PUN-H-10X1,5-TGNPlastic tubing · Tubing
PUN-H-10X1,5-TGN-300Plastic tubing · Tubing
PUN-H-10X1,5-TGEPlastic tubing · Tubing
PUN-H-10X1,5-TGE-300Plastic tubing · Tubing
PUN-H-F-8X1,25-RTPlastic tubing · Tubing
PUN-H-F-8X1,25-BLPlastic tubing · Tubing
PUN-H-F-8X1,25-TBLPlastic tubing · Tubing
PUN-H-F-8X1,25-GNPlastic tubing · Tubing
PUN-H-F-8X1,25-GEPlastic tubing · Tubing
PUN-H-F-8X1,25-SWPlastic tubing · Tubing
PUN-H-F-10X1,5-RTPlastic tubing · Tubing
PUN-H-F-10X1,5-BLPlastic tubing · Tubing
PUN-H-F-10X1,5-TBLPlastic tubing · Tubing
PUN-H-F-10X1,5-GNPlastic tubing · Tubing
PUN-H-F-10X1,5-GEPlastic tubing · Tubing
PUN-H-F-10X1,5-SWPlastic tubing · Tubing
PUN-H-F-8X1,25-NTPlastic tubing · Tubing
PUN-H-F-10X1,5-NTPlastic tubing · Tubing
PUN-H-SF-10X2-BLPlastic tubing · Tubing
PUN-H-SF-10X2-SWPlastic tubing · Tubing
PUN-H-10X1,5-BL-25Plastic tubing · Tubing
PUN-H-10X1,5-SW-25Plastic tubing · Tubing
PUN-H-10X1,5-RT-25Plastic tubing · Tubing
PUN-H-10X1,5-TBL-25Plastic tubing · Tubing
