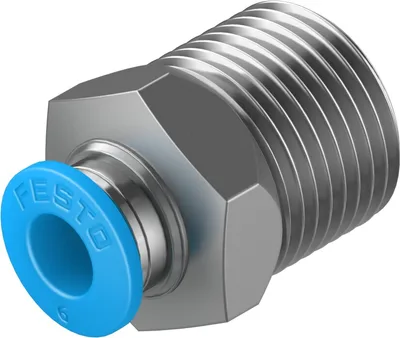

FESTO QS-3/8-6
Push-in fitting. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing
SizeStandard
Nominal size5
Tubing insertion depth17
Type of seal on screwed plugCoating
Mounting positionAny
DesignStraight design
About This Product
Push-in fitting. Design: Standard and mini series. Wide choice of variants: Wide selection for maximum flexibility in standard applications. Dimensions: small design for maximum packing density in the smallest installation space. Material: PBT and nickel-plated brass. Operating medium: Compressed air, vacuum, water (according to the manufacturer's declaration, see www.festo.com/certificates/QS). Design/shape: straight shape, L/LL, T, X, Y-shape, push-in bulkhead connector, etc.. Mounting/installation: External and internal hex and push-in connector for standard O.D. tubing
FESTO QS-3/8-6
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
SizeStandard
Nominal size5
Tubing insertion depth17
Type of seal on screwed plugCoating
Mounting positionAny
DesignStraight design
Size of pack10
DesignPush-pull principle
Operating pressure complete temperature range-0.095, 0.6
Operating pressure complete temperature range-0.95, 6
Operating pressure complete temperature range-13.775, 87
Temperature-dependent operating pressure-0.095, 1.4
Temperature-dependent operating pressure-0.95, 14
Temperature-dependent operating pressure-13.775, 203
Note on operating pressureWater: max. 0.6 MPa at max. 50°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-10, 80
Product weight28
Type of mountingExternal hex SW17
Pneumatic connection, port 1Male thread R3/8
Pneumatic connection, port 2For tubing outside diameter of 6 mm
Colour of release ringBlue
Note on materialsRoHS compliant
Material housingBrass, nickel-plated
Material release ringPOM
Material tubing sealNBR
Material tubing clamp componentHigh-alloy stainless steel
Accessories 82
Genuine accessories that can be used with the FESTO QS-3/8-6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| QSO | Release tool · General accessories | |
| PUN-H-6X1-NT | Plastic tubing · Tubes | |
| PUN-H-6X1-BL | Plastic tubing · Tubes | |
| PUN-H-6X1-SW | Plastic tubing · Tubes | |
| PUN-H-6X1-TBL | Plastic tubing · Tubes | |
| PM-4 | Plastic-coated metal tube · Connection accessories | |
| PUN-6X1-SI | Plastic tubing · Tubing | |
| PAN-6X1-SI | Plastic tubing · Tubing | |
| PUN-6X1-DUO-SI | DUO tubing · Tubing | |
| PUN-6X1-BL | Plastic tubing · Tubing | |
| PUN-6X1-SW | Plastic tubing · Tubing | |
| PUN-6X1-DUO-BS | DUO tubing · Tubing | |
| PUN-6X1-RT | Plastic tubing · Tubing | |
| PUN-6X1-GE | Plastic tubing · Tubing | |
| PUN-6X1-GN | Plastic tubing · Tubing | |
| PUN-6X1-S-1-BL | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-2-BL | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-6-BL | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-1-SW | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-2-SW | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-6-SW | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-1-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-6X1-S-2-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-6X1-S-6-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-6X1-SI-500 | Plastic tubing · Tubing | |
| PUN-6X1-BL-500 | Plastic tubing · Tubing | |
| PEN-6X1-SW | Plastic tubing · Tubing | |
| PEN-6X1-NT | Plastic tubing · Tubing | |
| PAN-6X1-NT | Plastic tubing · Tubing | |
| PEN-6X1-SW-500 | Plastic tubing · Tubing | |
| PEN-6X1-BL-500 | Plastic tubing · Tubing | |
| PEN-6X1-SI-500 | Plastic tubing · Tubing | |
| PEN-6X1-BL | Plastic tubing · Tubing | |
| PEN-6X1-SI | Plastic tubing · Tubing | |
| PEN-6X1-GN | Plastic tubing · Tubing | |
| PEN-6X1-RT | Plastic tubing · Tubing | |
| PEN-6X1-GE | Plastic tubing · Tubing | |
| PUN | Plastic tubing · Tubing | |
| PAN | Plastic tubing · Tubing | |
| PEN | Plastic tubing · Tubing | |
| PLN | Plastic tubing · Tubing | |
| PAN-6X1-SI-500 | Plastic tubing · Tubing | |
| PAN-6X1-BL-500 | Plastic tubing · Tubing | |
| PAN-6X1-SW-500 | Plastic tubing · Tubing | |
| PAN-6X1-BL | Plastic tubing · Tubing | |
| PAN-6X1-SW | Plastic tubing · Tubing | |
| PAN-6X1-GN | Plastic tubing · Tubing | |
| PAN-6X1-RT | Plastic tubing · Tubing | |
| PAN-6X1-GE | Plastic tubing · Tubing | |
| PUN-6X1-SW-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-SW-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-BL-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-NT-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-SI-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-SI | Plastic tubing · Tubing | |
| PUN-H-6X1-RT | Plastic tubing · Tubing | |
| PUN-H-6X1-GN | Plastic tubing · Tubing | |
| PUN-H-6X1-GE | Plastic tubing · Tubing | |
| PUN-H-6X1-TBL-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TSW | Plastic tubing · Tubing | |
| PUN-H-6X1-TSW-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TRT | Plastic tubing · Tubing | |
| PUN-H-6X1-TRT-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TGN | Plastic tubing · Tubing | |
| PUN-H-6X1-TGN-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TGE | Plastic tubing · Tubing | |
| PUN-H-6X1-TGE-500 | Plastic tubing · Tubing | |
| PTFEN-6X1-NT-100 | Plastic tubing · Tubing | |
| PTFEN-6X1-NT-500 | Plastic tubing · Tubing | |
| PUN-H-F-6X1-RT | Plastic tubing · Tubing | |
| PUN-H-F-6X1-BL | Plastic tubing · Tubing | |
| PUN-H-F-6X1-TBL | Plastic tubing · Tubing | |
| PUN-H-F-6X1-GN | Plastic tubing · Tubing | |
| PUN-H-F-6X1-GE | Plastic tubing · Tubing | |
| PUN-H-F-6X1-SW | Plastic tubing · Tubing | |
| PUN-H-F-6X1-NT | Plastic tubing · Tubing | |
| PUN-H-SF-6X1,25-SW | Plastic tubing · Tubing | |
| PUN-H-SF-6X1,25-BL | Plastic tubing · Tubing | |
| PUN-H-6X1-RT-25 | Plastic tubing · Tubing | |
| PUN-H-6X1-BL-25 | Plastic tubing · Tubing | |
| PUN-H-6X1-SW-25 | Plastic tubing · Tubing | |
| PUN-H-6X1-TBL-25 | Plastic tubing · Tubing |
