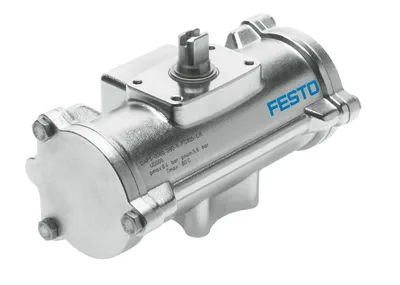

FESTO DAPS-0060-090-R-F0305-CR

Quarter turn actuator. High breakaway torques. Sustainable thanks to extended life cycle and easier repairs. Flange hole pattern to ISO 5211. Mounting hole pattern to VDI/VDE 3845. Optionally with handwheel as a manual emergency override. Corrosion-resistant version made from stainless steel. To EU Explosion Protection Directive (ATEX). With safety functions

FESTOMFR # DAPS-0060-090-R-F0305-CRSKU # CEY-937FC781E199

Size of valve actuator0060

Flange hole patternF03, F05

Swivel angle90

Shaft connection depth12.1

Fitting connection conforms to standardISO 5211

CushioningNo cushioning

Have questions?Chat on WhatsApp

About This Product

FESTO DAPS-0060-090-R-F0305-CR

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size of valve actuator0060

Flange hole patternF03, F05

Swivel angle90

Shaft connection depth12.1

Fitting connection conforms to standardISO 5211

CushioningNo cushioning

Mounting positionAny

Mode of operationDouble-acting

DesignScotch yoke system

Position detectionNone

Closing directionCloses to the right

Symbol00991265

Valve connection conforms to standardVDI/VDE 3845 (NAMUR)

Safety Integrity Level (SIL)up to SIL 2 high demand mode, up to SIL 2 Low Demand mode

Operating pressure0.25, 0.84

Operating pressure2.5, 8.4

Nominal operating pressure0.56

Nominal operating pressure5.6

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Certificate issuing authorityGerman Technical Control Board North (TÜV Nord) 212170801

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T6...T3 Gb X

Explosion ignition protection type for dustEx h IIIC T85°C...T200°C Db X

Explosion ambient temperature-20°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 80

Torque at nominal operating pressure and 0° swivel angle60

Torque at nominal operating pressure and 50° swivel angle30

Torque at nominal operating pressure and 90° swivel angle45

Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°1.96

Product weight1800

Shaft connectionT11

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material coverHigh-alloy stainless steel

Material number cover1,4408

Material sealsFluoro rubber, NBR, PUR

Material housingHigh-alloy stainless steel

Material number housing1,4408

Material screwsHigh-alloy stainless steel

Material shaftHigh-alloy stainless steel

Material number shaft1,4301

Accessories 392

Genuine accessories that can be used with the FESTO DAPS-0060-090-R-F0305-CR motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
PUN-H-8X1,25-NT	Plastic tubing · Tubes
QS-G1/8-8-I	Push-in fitting · Fittings
QSL-G1/8-8	Push-in L-fitting · Fittings
QS-G1/8-8	Push-in fitting · Fittings
VFOE-LE-T-G18-Q6	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q4	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q8	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-P50	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q8-F1A	One-way flow control valve · Function fittings
VFOE-LE-T-G18-Q6-F1A	One-way flow control valve · Function fittings
SEU-1/8	Quick exhaust valve · Function fittings
GRU-1/8-B	Flow control/silencer · Function fittings
SE-1/8-B	Quick exhaust valve · Function fittings
QSW-1/8-4	Push-in fitting · Push-in fittings
QSW-1/8-6	Push-in fitting · Push-in fittings
QSW-1/8-8	Push-in fitting · Push-in fittings
QSL-1/8-4-100	Push-in L-fitting · Push-in fittings
QSL-1/8-6-100	Push-in L-fitting · Push-in fittings
QSL-1/8-8-50	Push-in L-fitting · Push-in fittings
QSLV-1/8-4-100	Push-in L-fitting · Push-in fittings
QSLV-1/8-6-100	Push-in L-fitting · Push-in fittings
QSLV-1/8-8-50	Push-in L-fitting · Push-in fittings
QSM-1/8-4-100	Push-in fitting · Push-in fittings
QSM-1/8-6-100	Push-in fitting · Push-in fittings
QSML-1/8-4-100	Push-in L-fitting · Push-in fittings
QSML-1/8-6-100	Push-in L-fitting · Push-in fittings
QST-1/8-4-100	Push-in T-fitting · Push-in fittings
QST-1/8-6-100	Push-in T-fitting · Push-in fittings
QST-1/8-8-50	Push-in T-fitting · Push-in fittings
QSTL-1/8-4-100	Push-in T-fitting · Push-in fittings
QSTL-1/8-6-100	Push-in T-fitting · Push-in fittings
QSTL-1/8-8-50	Push-in T-fitting · Push-in fittings
QSL-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-6-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-8-50	Push-in L-fitting · Push-in fittings
QSLV-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSLV-G1/8-6-100	Push-in L-fitting · Push-in fittings
QSLV-G1/8-8-50	Push-in L-fitting · Push-in fittings
QST-G1/8-4-100	Push-in T-fitting · Push-in fittings
QST-G1/8-6-100	Push-in T-fitting · Push-in fittings
QST-G1/8-8-50	Push-in T-fitting · Push-in fittings
QSTL-G1/8-4-100	Push-in T-fitting · Push-in fittings
QSTL-G1/8-6-100	Push-in T-fitting · Push-in fittings
QSTL-G1/8-8-50	Push-in T-fitting · Push-in fittings
QSL-V0-1/8-4	Push-in L-fitting · Push-in fittings
QST-V0-1/8-4	Push-in T-fitting · Push-in fittings
QSML-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSLL-G1/8-4-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8-100	Push-in L-fitting, long · Push-in fittings
GRLA-1/8-B	One-way flow control valve · Function fittings
GRLA-1/8-PK-3-B	One-way flow control valve · Function fittings
GRLA-1/8-PK-4-B	One-way flow control valve · Function fittings
GRLA-1/8-PK-6-B	One-way flow control valve · Function fittings
GRLA-1/8-RS-B	One-way flow control valve · Function fittings
QSL-1/8-4	Push-in L-fitting · Push-in fittings
QSL-1/8-6	Push-in L-fitting · Push-in fittings
QSL-1/8-8	Push-in L-fitting · Push-in fittings
QSLL-1/8-4	Push-in L-fitting, long · Push-in fittings
QSLL-1/8-6	Push-in L-fitting, long · Push-in fittings
QSLL-1/8-8	Push-in L-fitting, long · Push-in fittings
QSLV-1/8-4	Push-in L-fitting · Push-in fittings
QSLV-1/8-6	Push-in L-fitting · Push-in fittings
QSLV-1/8-8	Push-in L-fitting · Push-in fittings
QSLV-1/8-6-I	Push-in L-fitting · Push-in fittings
QSLV-1/8-8-I	Push-in L-fitting · Push-in fittings
QST-1/8-4	Push-in T-fitting · Push-in fittings
QST-1/8-6	Push-in T-fitting · Push-in fittings
QST-1/8-8	Push-in T-fitting · Push-in fittings
QSTL-1/8-4	Push-in T-fitting · Push-in fittings
QSTL-1/8-6	Push-in T-fitting · Push-in fittings
QSTL-1/8-8	Push-in T-fitting · Push-in fittings
QSY-1/8-4	Push-in Y-fitting · Push-in fittings
QSY-1/8-6	Push-in Y-fitting · Push-in fittings
QSY-1/8-8	Push-in Y-fitting · Push-in fittings
QSYL-1/8-4	Push-in Y-fitting · Push-in fittings
QSYL-1/8-6	Push-in Y-fitting · Push-in fittings
QSYL-1/8-8	Push-in Y-fitting · Push-in fittings
QSTF-1/8-4-B	Push-in T-fitting · Push-in fittings
QSTF-1/8-6-B	Push-in T-fitting · Push-in fittings
QSTF-1/8-8-B	Push-in T-fitting · Push-in fittings
QSYLV-1/8-6	Push-in Y-fitting · Push-in fittings
QSYTF-1/8-6-B	Multiple distributor · Push-in fittings
QST3-1/8-6-4	Multiple distributor · Push-in fittings
QSQ-1/8-4	Multiple distributor · Push-in fittings
QSQ-1/8-6	Multiple distributor · Push-in fittings
QSLV2-1/8-4	Multiple distributor · Push-in fittings
QSLV2-1/8-6	Multiple distributor · Push-in fittings
QSLV2-1/8-8	Multiple distributor · Push-in fittings
QSLV3-1/8-4	Multiple distributor · Push-in fittings
QSLV3-1/8-6	Multiple distributor · Push-in fittings
QSLV3-1/8-8	Multiple distributor · Push-in fittings
QSLV4-1/8-4	Multiple distributor · Push-in fittings
QSLV4-1/8-6	Multiple distributor · Push-in fittings
QSLV4-1/8-8	Multiple distributor · Push-in fittings
QSLV6-1/8-4	Multiple distributor · Push-in fittings
QSLV6-1/8-6	Multiple distributor · Push-in fittings
QSLV6-1/8-8	Multiple distributor · Push-in fittings
QSM-1/8-4	Push-in fitting · Push-in fittings
QSM-1/8-6	Push-in fitting · Push-in fittings
QSM-1/8-4-I	Push-in fitting · Push-in fittings
QSM-1/8-6-I	Push-in fitting · Push-in fittings
QSML-1/8-4	Push-in L-fitting · Push-in fittings
QSML-1/8-6	Push-in L-fitting · Push-in fittings
QSMLL-1/8-4	Push-in L-fitting, long · Push-in fittings
QSMLL-1/8-6	Push-in L-fitting, long · Push-in fittings
QSMT-1/8-4	Push-in T-fitting · Push-in fittings
QSMT-1/8-6	Push-in T-fitting · Push-in fittings
QSMTL-1/8-4	Push-in T-fitting · Push-in fittings
QSMTL-1/8-6	Push-in T-fitting · Push-in fittings
QSR-1/8-4	Push-in fitting, rotatable · Push-in fittings
QSR-1/8-6	Push-in fitting, rotatable · Push-in fittings
QSR-1/8-8	Push-in fitting, rotatable · Push-in fittings
QSRL-1/8-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-1/8-6	Push-in L-fitting, rotatable · Push-in fittings
QSRL-1/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSMK-1/8-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-1/8-6	Push-in fitting, self-sealing · Push-in fittings
QSK-1/8-8	Push-in fitting, self-sealing · Push-in fittings
QSMKL-1/8-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-1/8-6	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-1/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSL-V0-1/8-6	Push-in L-fitting · Push-in fittings
QSL-V0-1/8-8	Push-in L-fitting · Push-in fittings
QST-V0-1/8-6	Push-in T-fitting · Push-in fittings
QST-V0-1/8-8	Push-in T-fitting · Push-in fittings
QSL-G1/8-4	Push-in L-fitting · Push-in fittings
QSL-G1/8-6	Push-in L-fitting · Push-in fittings
QSLL-G1/8-4	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8	Push-in L-fitting, long · Push-in fittings
QSLV-G1/8-4	Push-in L-fitting · Push-in fittings
QSLV-G1/8-6	Push-in L-fitting · Push-in fittings
QSLV-G1/8-8	Push-in L-fitting · Push-in fittings
QSLV-G1/8-6-I	Push-in L-fitting · Push-in fittings
QSLV-G1/8-8-I	Push-in L-fitting · Push-in fittings
QST-G1/8-4	Push-in T-fitting · Push-in fittings
QST-G1/8-6	Push-in T-fitting · Push-in fittings
QST-G1/8-8	Push-in T-fitting · Push-in fittings
QSTL-G1/8-4	Push-in T-fitting · Push-in fittings
QSTL-G1/8-6	Push-in T-fitting · Push-in fittings
QSTL-G1/8-8	Push-in T-fitting · Push-in fittings
QSY-G1/8-4	Push-in Y-fitting · Push-in fittings
QSY-G1/8-6	Push-in Y-fitting · Push-in fittings
QSY-G1/8-8	Push-in Y-fitting · Push-in fittings
QSYL-G1/8-4	Push-in Y-fitting · Push-in fittings
QSYL-G1/8-6	Push-in Y-fitting · Push-in fittings
QSYL-G1/8-8	Push-in Y-fitting · Push-in fittings
QSTF-G1/8-4	Push-in T-fitting · Push-in fittings
QSTF-G1/8-6	Push-in T-fitting · Push-in fittings
QSTF-G1/8-8	Push-in T-fitting · Push-in fittings
QSYLV-G1/8-6	Push-in Y-fitting · Push-in fittings
QSYTF-G1/8-6	Multiple distributor · Push-in fittings
QST3-G1/8-6-4	Multiple distributor · Push-in fittings
QSQ-G1/8-4	Multiple distributor · Push-in fittings
QSQ-G1/8-6	Multiple distributor · Push-in fittings
QSLV2-G1/8-4	Multiple distributor · Push-in fittings
QSLV2-G1/8-6	Multiple distributor · Push-in fittings
QSLV2-G1/8-8	Multiple distributor · Push-in fittings
QSLV3-G1/8-4	Multiple distributor · Push-in fittings
QSLV3-G1/8-6	Multiple distributor · Push-in fittings
QSLV3-G1/8-8	Multiple distributor · Push-in fittings
QSLV4-G1/8-4	Multiple distributor · Push-in fittings
QSLV4-G1/8-6	Multiple distributor · Push-in fittings
QSLV4-G1/8-8	Multiple distributor · Push-in fittings
QSLV6-G1/8-4	Multiple distributor · Push-in fittings
QSLV6-G1/8-6	Multiple distributor · Push-in fittings
QSLV6-G1/8-8	Multiple distributor · Push-in fittings
QSM-G1/8-4	Push-in fitting · Push-in fittings
QSM-G1/8-6	Push-in fitting · Push-in fittings
QSM-G1/8-4-I	Push-in fitting · Push-in fittings
QSM-G1/8-6-I	Push-in fitting · Push-in fittings
QSML-G1/8-4	Push-in L-fitting · Push-in fittings
QSML-G1/8-6	Push-in L-fitting · Push-in fittings
QSMLL-G1/8-4	Push-in L-fitting, long · Push-in fittings
QSMLL-G1/8-6	Push-in L-fitting, long · Push-in fittings
QSMT-G1/8-4	Push-in T-fitting · Push-in fittings
QSMT-G1/8-6	Push-in T-fitting · Push-in fittings
QSMTL-G1/8-4	Push-in T-fitting · Push-in fittings
QSMTL-G1/8-6	Push-in T-fitting · Push-in fittings
QSR-G1/8-4	Push-in fitting, rotatable · Push-in fittings
QSR-G1/8-6	Push-in fitting, rotatable · Push-in fittings
QSR-G1/8-8	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/8-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G1/8-6	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G1/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSMK-G1/8-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-G1/8-6	Push-in fitting, self-sealing · Push-in fittings
QSK-G1/8-8	Push-in fitting, self-sealing · Push-in fittings
QSMKL-G1/8-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-G1/8-6	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G1/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSL-V0-G1/8-6	Push-in L-fitting · Push-in fittings
QSL-V0-G1/8-8	Push-in L-fitting · Push-in fittings
QST-V0-G1/8-6	Push-in T-fitting · Push-in fittings
QST-V0-G1/8-8	Push-in T-fitting · Push-in fittings
QSL-1/8-10	Push-in L-fitting · Push-in fittings
QST-1/8-10	Push-in T-fitting · Push-in fittings
GRLA-1/8-QS-3-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-4-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-D	One-way flow control valve · Function fittings
NVF3-MOH-5/2-K-1/4	Solenoid valve · Valves
GRLA-1/8-QS-3-RS-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-4-RS-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-6-RS-D	One-way flow control valve · Function fittings
HGL-1/8-B	Piloted check valve · Function fittings
HGL-1/8-QS-4	Piloted check valve · Function fittings
HGL-1/8-QS-6	Piloted check valve · Function fittings
GRLA-1/8-QS-8-RS-D	One-way flow control valve · Function fittings
NVF3-MOH-5/2-K-1/4-EX	Solenoid valve · Valves
GRLA-1/8-QS-6-MF-D	One-way flow control valve · Function fittings
GRLA-1/8-QS-8-MF-D	One-way flow control valve · Function fittings
GRLSA-1/8-QS-6	One-way flow control valve · Function fittings
HGL-1/8-1/8-B	Piloted check valve · Function fittings
VBQF-U-G18-E	Quick exhaust valve · Function fittings
VBQF-U-G18-Q6	Quick exhaust valve · Function fittings
VBQF-D-G18-E	Quick exhaust valve · Function fittings
VBQF-D-G18-Q6	Quick exhaust valve · Function fittings
NVF3-MOH-5/2-K..+MSFW-230	Solenoid valve · Valves
NVF3-MOH-5/2-K..+MSFW-110	Solenoid valve · Valves
NVF3-MOH-5/2-K..+MSFG-24	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-F8	Solenoid valve · Valves
VSNC-F-B52-D-G14-F8	Solenoid valve · Valves
VSNC-F-P53C-MD-G14-F8	Solenoid valve · Valves
VSNC-F-P53U-MD-G14-F8	Solenoid valve · Valves
VSNC-F-P53E-MD-G14-F8	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-F8	Solenoid valve · Valves
VSNC-F-B52-D-N14-F8	Solenoid valve · Valves
VSNC-F-P53C-MD-N14-F8	Solenoid valve · Valves
VSNC-F-P53U-MD-N14-F8	Solenoid valve · Valves
VSNC-F-P53E-MD-N14-F8	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN	Solenoid valve · Valves
VSNC-F-B52-D-G14-FN	Solenoid valve · Valves
VSNC-F-P53C-MD-G14-FN	Solenoid valve · Valves
VSNC-F-P53U-MD-G14-FN	Solenoid valve · Valves
VSNC-F-P53E-MD-G14-FN	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-FN	Solenoid valve · Valves
VSNC-F-B52-D-N14-FN	Solenoid valve · Valves
VSNC-F-P53C-MD-N14-FN	Solenoid valve · Valves
VSNC-F-P53U-MD-N14-FN	Solenoid valve · Valves
VSNC-F-P53E-MD-N14-FN	Solenoid valve · Valves
VSNC-FTC-M52-MD-G14-FN	Solenoid valve · Valves
VSNC-FT-B52-D-G14-FN	Solenoid valve · Valves
VSNC-FTC-M52-MD-N14-FN	Solenoid valve · Valves
VSNC-FT-B52-D-N14-FN	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-F-B52-D-G14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-F-B52-D-N14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-F8-1B2	Solenoid valve · Valves
VSNC-F-B52-D-G14-F8-1B2	Solenoid valve · Valves
VSNC-FTC-M52-MD-G14-FN-1A1	Solenoid valve · Valves
VSNC-FT-B52-D-G14-FN-1A1	Solenoid valve · Valves
VFOH-LE-A-G18-Q4	One-way flow control valve · Function fittings
VFOH-LE-A-G18-Q6	One-way flow control valve · Function fittings
VFOH-LE-A-G18-Q8	One-way flow control valve · Function fittings
DARQ-K-P-A1-F05-20-R1	Mounting flange adapter · Mounting kits for proximity sensors, other sensors
SRBE-CA3-YR90-MW-22A-1W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-1W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-22A-1W-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-P-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-N-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-ZU-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-R-2A-1W-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBG-C1-N-1-AS-M12-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-P-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-ZU-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-20N-ZC-M12-EX5	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-P-C2-C2	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-ZU-C2-C2	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-20N-ZC-C2-C2-EX5	Sensorbox · Cylinder sensors for direct mounting
DARQ-K-X1-A1-F05-20-R1	Mounting flange adapter · Mounting kits for proximity sensors, other sensors
DARQ-K-X1-A1-F05-30-R1	Mounting flange adapter · Mounting kits for proximity sensors, other sensors
CMSX-P-S-C-U-F1-D-50-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-S-C-U-F1-D-50-C	Positioner · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-1W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
VOFC-LT-M32C-M-FG14-F19	Valve · Valves
VOFC-LT-M32C-M-FG14-F19A	Valve · Valves
VOFC-LT-M32C-MC-FGP14-F19	Valve · Valves
VOFC-LT-M32C-MC-FGP14-F19A	Valve · Valves
VOFC-LT-M32C-M-FG12-F19	Valve · Valves
VOFC-LT-M32C-M-FG12-F19A	Valve · Valves
VOFC-L-M52-M-FG14-F19	Valve · Valves
VOFC-L-M52-M-FG14-F19A	Valve · Valves
VOFC-L-B52-FG14-F19	Valve · Valves
VOFC-L-B52-FG14-F19A	Valve · Valves
VOFD-L50T-M32-MN-FG14-10-F10	Valve · Valves
VOFD-L50T-M32-MN-FGP14-10-F10	Valve · Valves
VOFC-LT-M32C-MC-FG13-F19	Valve · Valves
VOFC-LT-M32C-MC-FG13-F19A	Valve · Valves
VSNC	Solenoid valve · Valves
NPFC-L-2G18-F	Elbow fitting · Other connectors
NPFC-L-R18-G18-MF	Elbow fitting · Other connectors
NPFC-L-2R18-M	Elbow fitting · Other connectors
NPFC-Y-R18-2G18-MFF	Y-fitting · Other connectors
NPFC-T-3G18-F	T-fitting · Other connectors
NPFC-T-R18-2G18-MFF	T-fitting · Other connectors
NPFC-T-2G18-R18-FMF	T-fitting · Other connectors
NPFC-T-G18-2R18-FMM	T-fitting · Other connectors
NPFC-T-2R18-G18-MMF	T-fitting · Other connectors
NPFC-D-M7-G18-M	Double nipple · Other connectors
NPFC-D-2G18-M	Double nipple · Other connectors
NPFC-D-2R18-M	Double nipple · Other connectors
NPFC-S-2G18-F	Sleeve · Other connectors
NPFC-R-G38-G18-F	Reducing sleeve · Other connectors
NPFC-E1-2G18-FM	Extension · Other connectors
NPFC-E2-2G18-FM	Extension · Other connectors
NPFC-E3-2G18-FM	Extension · Other connectors
NPFC-E4-2G18-FM	Extension · Other connectors
NPFC-R-G14-G18-MF	Reducing nipple · Other connectors
NPFC-R-G38-G18-MF	Reducing nipple · Other connectors
NPFC-R-G14-G18-FM	Reducing nipple · Other connectors
NPFC-R-G38-G18-FM	Reducing nipple · Other connectors
NPFC-D-M5-G18-M	Double nipple · Other connectors
NPFC-D-2G18-M-P100	Double nipple · Other connectors
NPFC-R-G14-G18-F	Reducing sleeve · Other connectors
NPFC-R-G12-G18-F	Reducing sleeve · Other connectors
NPFC-R-G14-G18-MF-P100	Reducing nipple · Other connectors
NPFC-H-G18-F	Bulkhead fitting · Other connectors
VSNC-FC-M52-MD-G14-F8-1A1	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-1A1+G	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-3AA1+G	Solenoid valve · Valves
DARQ-R-A-S11-S8-12	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S8-12-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P10	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P50	Reducing sleeve (square) · Mounting accessories
DARQ-K-V-F04S11-F03S9-R13	Mounting kit · Mounting accessories
DARQ-K-V-F04S11-F04S11-R13	Mounting kit · Mounting accessories
DARQ-K-Z-F04S11-F03S9-R13	Mounting kit · Mounting accessories
DARQ-K-Z-F04S11-F04S11-R13	Mounting kit · Mounting accessories
DARQ-K-V-F04S11-F03S9-R1	Mounting kit · Mounting accessories
NPFC-D-2G18-M-F1A	Double nipple · Other connectors
SRBC-CA3-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-N-20N-ZC-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-1-1WG-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-20N-ZC-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-P-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-N-20N-ZC-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
NPFC-DS-G18-G18-M	Double nipple · Other connectors
NPFC-DS-G18-G14-M	Double nipple · Other connectors
NPFC-RS-G14-G18-MF	Reducing nipple · Other connectors
NPFC-RS-G38-G18-MF	Reducing nipple · Other connectors
CMSX-P-SE-C-U-F1-D-50-A	Positioner · Cylinder sensors for direct mounting
CMSX-P-SE-C-U-F1-D-50-C	Positioner · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-ZU-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-R-2A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-P-M12	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-N-1-ZU-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-R-2A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1WG-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-1-1WG-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
