How can I get a price quote for FESTO DAPS-0015-090-RS2-F0305-T6?

You can request a fast quote for FESTO DAPS-0015-090-RS2-F0305-T6 from Yılsa Engineering. Reference part number CEY-937FC781E377. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO DAPS-0015-090-RS2-F0305-T6 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO DAPS-0015-090-RS2-F0305-T6 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO DAPS-0015-090-RS2-F0305-T6?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

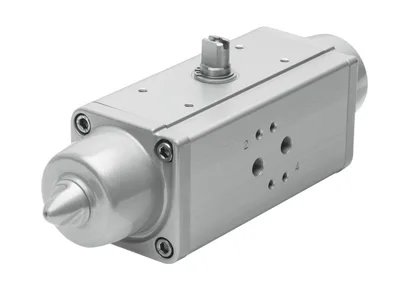

FESTO DAPS-0015-090-RS2-F0305-T6

Quarter turn actuator. High breakaway torques. Sustainable thanks to extended life cycle and easier repairs. Flange hole pattern to ISO 5211. Mounting hole pattern to VDI/VDE 3845. Optionally with handwheel as a manual emergency override. Corrosion-resistant version made from stainless steel. To EU Explosion Protection Directive (ATEX). With safety functions

FESTOMFR # DAPS-0015-090-RS2-F0305-T6SKU # CEY-937FC781E377

Size of valve actuator0015

Flange hole patternF03, F05

Swivel angle90

End-position adjustment range at 0°-1, 9

Shaft connection depth13.2

Note on end-position adjusting rangeOne end position optionally adjustable

Have questions?Chat on WhatsApp

About This Product

FESTO DAPS-0015-090-RS2-F0305-T6

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size of valve actuator0015

Flange hole patternF03, F05

Swivel angle90

End-position adjustment range at 0°-1, 9

End-position adjustment range at nominal swivel angle81, 91

Shaft connection depth13.2

Note on end-position adjusting rangeOne end position optionally adjustable

Fitting connection conforms to standardISO 5211

CushioningNo cushioning

Mounting positionAny

Mode of operationSingle-acting

DesignScotch yoke system

Position detectionNone

Closing directionCloses to the right

Symbol00991266

Valve connection conforms to standardVDI/VDE 3845 (NAMUR)

Safety Integrity Level (SIL)up to SIL 2 Low Demand mode

Supply pressure for spring strength0.35

Supply pressure for spring strength3.5

Operating pressure0.35, 0.84

Operating pressure3.5, 8.4

Nominal operating pressure0.56

Nominal operating pressure5.6

Max. swivel frequency at 0.6 MPa (6 bar, 87 psi)1

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Certificate issuing authorityGerman Technical Control Board North (TÜV Nord) 212170801

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T6...T3 Gb X

Explosion ignition protection type for dustEx h IIIC T85°C...T200°C Db X

Explosion ambient temperature-50°C <= Ta <= +60°C

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-50, 60

Torque at nominal operating pressure and 0° swivel angle18.8

Torque at nominal operating pressure and 50° swivel angle10.3

Torque at nominal operating pressure and 90° swivel angle15.7

Note on torqueThe operating torque of the actuator must not be higher than the maximum permissible torque listed in ISO 5211, with reference to the size of the mounting flange and of the coupling.

Spring return torque at 0° swivel angle6.3

Spring return torque at 50° swivel angle4.7

Spring return torque at 90° swivel angle9.4

Spring strength2

Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°0.63

Product weight1200

Shaft connectionT11

Pneumatic connectionG1/8

Note on materialsRoHS compliant

Material coverWrought aluminium alloy

Material sealsFVMQ, PTFE-reinforced

Material housingWrought aluminium alloy

Material screwsHigh-alloy steel

Material shaftHigh-alloy steel

Material number shaft1,4305

Accessories 366

Genuine accessories that can be used with the FESTO DAPS-0015-090-RS2-F0305-T6 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DASB-P1-HA-SB	Adapter kit · Mounting accessories
PUN-H-8X1,25-BL	Plastic tubing · Tubes
PUN-H-8X1,25-SW	Plastic tubing · Tubes
PUN-H-8X1,25-TBL	Plastic tubing · Tubes
PUN-H-8X1,25-NT	Plastic tubing · Tubes
QS-G1/8-8-I	Push-in fitting · Fittings
QSL-G1/8-8	Push-in L-fitting · Fittings
VFOE-LS-T-G18-Q4	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q6	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q8	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q4-F1A	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q6-F1A	One-way flow control valve · Function fittings
VFOE-LS-T-G18-Q8-F1A	One-way flow control valve · Function fittings
SEU-1/8	Quick exhaust valve · Function fittings
SE-1/8-B	Quick exhaust valve · Function fittings
QSW-1/8-4	Push-in fitting · Push-in fittings
QSW-1/8-6	Push-in fitting · Push-in fittings
QSW-1/8-8	Push-in fitting · Push-in fittings
QSL-1/8-4-100	Push-in L-fitting · Push-in fittings
QSL-1/8-6-100	Push-in L-fitting · Push-in fittings
QSL-1/8-8-50	Push-in L-fitting · Push-in fittings
QSLV-1/8-4-100	Push-in L-fitting · Push-in fittings
QSLV-1/8-6-100	Push-in L-fitting · Push-in fittings
QSLV-1/8-8-50	Push-in L-fitting · Push-in fittings
QSM-1/8-4-100	Push-in fitting · Push-in fittings
QSM-1/8-6-100	Push-in fitting · Push-in fittings
QSML-1/8-4-100	Push-in L-fitting · Push-in fittings
QSML-1/8-6-100	Push-in L-fitting · Push-in fittings
QST-1/8-4-100	Push-in T-fitting · Push-in fittings
QST-1/8-6-100	Push-in T-fitting · Push-in fittings
QST-1/8-8-50	Push-in T-fitting · Push-in fittings
QSTL-1/8-4-100	Push-in T-fitting · Push-in fittings
QSTL-1/8-6-100	Push-in T-fitting · Push-in fittings
QSTL-1/8-8-50	Push-in T-fitting · Push-in fittings
QSL-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-6-100	Push-in L-fitting · Push-in fittings
QSL-G1/8-8-50	Push-in L-fitting · Push-in fittings
QSLV-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSLV-G1/8-6-100	Push-in L-fitting · Push-in fittings
QSLV-G1/8-8-50	Push-in L-fitting · Push-in fittings
QST-G1/8-4-100	Push-in T-fitting · Push-in fittings
QST-G1/8-6-100	Push-in T-fitting · Push-in fittings
QST-G1/8-8-50	Push-in T-fitting · Push-in fittings
QSTL-G1/8-4-100	Push-in T-fitting · Push-in fittings
QSTL-G1/8-6-100	Push-in T-fitting · Push-in fittings
QSTL-G1/8-8-50	Push-in T-fitting · Push-in fittings
QSL-V0-1/8-4	Push-in L-fitting · Push-in fittings
QST-V0-1/8-4	Push-in T-fitting · Push-in fittings
QSML-G1/8-4-100	Push-in L-fitting · Push-in fittings
QSLL-G1/8-4-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6-100	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8-100	Push-in L-fitting, long · Push-in fittings
GRLZ-1/8-B	One-way flow control valve · Function fittings
GRLZ-1/8-RS-B	One-way flow control valve · Function fittings
QSL-1/8-4	Push-in L-fitting · Push-in fittings
QSL-1/8-6	Push-in L-fitting · Push-in fittings
QSL-1/8-8	Push-in L-fitting · Push-in fittings
QSLL-1/8-4	Push-in L-fitting, long · Push-in fittings
QSLL-1/8-6	Push-in L-fitting, long · Push-in fittings
QSLL-1/8-8	Push-in L-fitting, long · Push-in fittings
QSLV-1/8-4	Push-in L-fitting · Push-in fittings
QSLV-1/8-6	Push-in L-fitting · Push-in fittings
QSLV-1/8-8	Push-in L-fitting · Push-in fittings
QSLV-1/8-6-I	Push-in L-fitting · Push-in fittings
QSLV-1/8-8-I	Push-in L-fitting · Push-in fittings
QST-1/8-4	Push-in T-fitting · Push-in fittings
QST-1/8-6	Push-in T-fitting · Push-in fittings
QST-1/8-8	Push-in T-fitting · Push-in fittings
QSTL-1/8-4	Push-in T-fitting · Push-in fittings
QSTL-1/8-6	Push-in T-fitting · Push-in fittings
QSTL-1/8-8	Push-in T-fitting · Push-in fittings
QSY-1/8-4	Push-in Y-fitting · Push-in fittings
QSY-1/8-6	Push-in Y-fitting · Push-in fittings
QSY-1/8-8	Push-in Y-fitting · Push-in fittings
QSYL-1/8-4	Push-in Y-fitting · Push-in fittings
QSYL-1/8-6	Push-in Y-fitting · Push-in fittings
QSYL-1/8-8	Push-in Y-fitting · Push-in fittings
QSTF-1/8-4-B	Push-in T-fitting · Push-in fittings
QSTF-1/8-6-B	Push-in T-fitting · Push-in fittings
QSTF-1/8-8-B	Push-in T-fitting · Push-in fittings
QSYLV-1/8-6	Push-in Y-fitting · Push-in fittings
QSYTF-1/8-6-B	Multiple distributor · Push-in fittings
QST3-1/8-6-4	Multiple distributor · Push-in fittings
QSQ-1/8-4	Multiple distributor · Push-in fittings
QSQ-1/8-6	Multiple distributor · Push-in fittings
QSLV2-1/8-4	Multiple distributor · Push-in fittings
QSLV2-1/8-6	Multiple distributor · Push-in fittings
QSLV2-1/8-8	Multiple distributor · Push-in fittings
QSLV3-1/8-4	Multiple distributor · Push-in fittings
QSLV3-1/8-6	Multiple distributor · Push-in fittings
QSLV3-1/8-8	Multiple distributor · Push-in fittings
QSLV4-1/8-4	Multiple distributor · Push-in fittings
QSLV4-1/8-6	Multiple distributor · Push-in fittings
QSLV4-1/8-8	Multiple distributor · Push-in fittings
QSLV6-1/8-4	Multiple distributor · Push-in fittings
QSLV6-1/8-6	Multiple distributor · Push-in fittings
QSLV6-1/8-8	Multiple distributor · Push-in fittings
QSM-1/8-4	Push-in fitting · Push-in fittings
QSM-1/8-6	Push-in fitting · Push-in fittings
QSM-1/8-4-I	Push-in fitting · Push-in fittings
QSM-1/8-6-I	Push-in fitting · Push-in fittings
QSML-1/8-4	Push-in L-fitting · Push-in fittings
QSML-1/8-6	Push-in L-fitting · Push-in fittings
QSMLL-1/8-4	Push-in L-fitting, long · Push-in fittings
QSMLL-1/8-6	Push-in L-fitting, long · Push-in fittings
QSMT-1/8-4	Push-in T-fitting · Push-in fittings
QSMT-1/8-6	Push-in T-fitting · Push-in fittings
QSMTL-1/8-4	Push-in T-fitting · Push-in fittings
QSMTL-1/8-6	Push-in T-fitting · Push-in fittings
QSR-1/8-4	Push-in fitting, rotatable · Push-in fittings
QSR-1/8-6	Push-in fitting, rotatable · Push-in fittings
QSR-1/8-8	Push-in fitting, rotatable · Push-in fittings
QSRL-1/8-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-1/8-6	Push-in L-fitting, rotatable · Push-in fittings
QSRL-1/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSMK-1/8-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-1/8-6	Push-in fitting, self-sealing · Push-in fittings
QSK-1/8-8	Push-in fitting, self-sealing · Push-in fittings
QSMKL-1/8-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-1/8-6	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-1/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSL-V0-1/8-6	Push-in L-fitting · Push-in fittings
QSL-V0-1/8-8	Push-in L-fitting · Push-in fittings
QST-V0-1/8-6	Push-in T-fitting · Push-in fittings
QST-V0-1/8-8	Push-in T-fitting · Push-in fittings
QS-G1/8-8	Push-in fitting · Push-in fittings
QSL-G1/8-4	Push-in L-fitting · Push-in fittings
QSL-G1/8-6	Push-in L-fitting · Push-in fittings
QSLL-G1/8-4	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-6	Push-in L-fitting, long · Push-in fittings
QSLL-G1/8-8	Push-in L-fitting, long · Push-in fittings
QSLV-G1/8-4	Push-in L-fitting · Push-in fittings
QSLV-G1/8-6	Push-in L-fitting · Push-in fittings
QSLV-G1/8-8	Push-in L-fitting · Push-in fittings
QSLV-G1/8-6-I	Push-in L-fitting · Push-in fittings
QSLV-G1/8-8-I	Push-in L-fitting · Push-in fittings
QST-G1/8-4	Push-in T-fitting · Push-in fittings
QST-G1/8-6	Push-in T-fitting · Push-in fittings
QST-G1/8-8	Push-in T-fitting · Push-in fittings
QSTL-G1/8-4	Push-in T-fitting · Push-in fittings
QSTL-G1/8-6	Push-in T-fitting · Push-in fittings
QSTL-G1/8-8	Push-in T-fitting · Push-in fittings
QSY-G1/8-4	Push-in Y-fitting · Push-in fittings
QSY-G1/8-6	Push-in Y-fitting · Push-in fittings
QSY-G1/8-8	Push-in Y-fitting · Push-in fittings
QSYL-G1/8-4	Push-in Y-fitting · Push-in fittings
QSYL-G1/8-6	Push-in Y-fitting · Push-in fittings
QSYL-G1/8-8	Push-in Y-fitting · Push-in fittings
QSTF-G1/8-4	Push-in T-fitting · Push-in fittings
QSTF-G1/8-6	Push-in T-fitting · Push-in fittings
QSTF-G1/8-8	Push-in T-fitting · Push-in fittings
QSYLV-G1/8-6	Push-in Y-fitting · Push-in fittings
QSYTF-G1/8-6	Multiple distributor · Push-in fittings
QST3-G1/8-6-4	Multiple distributor · Push-in fittings
QSQ-G1/8-4	Multiple distributor · Push-in fittings
QSQ-G1/8-6	Multiple distributor · Push-in fittings
QSLV2-G1/8-4	Multiple distributor · Push-in fittings
QSLV2-G1/8-6	Multiple distributor · Push-in fittings
QSLV2-G1/8-8	Multiple distributor · Push-in fittings
QSLV3-G1/8-4	Multiple distributor · Push-in fittings
QSLV3-G1/8-6	Multiple distributor · Push-in fittings
QSLV3-G1/8-8	Multiple distributor · Push-in fittings
QSLV4-G1/8-4	Multiple distributor · Push-in fittings
QSLV4-G1/8-6	Multiple distributor · Push-in fittings
QSLV4-G1/8-8	Multiple distributor · Push-in fittings
QSLV6-G1/8-4	Multiple distributor · Push-in fittings
QSLV6-G1/8-6	Multiple distributor · Push-in fittings
QSLV6-G1/8-8	Multiple distributor · Push-in fittings
QSM-G1/8-4	Push-in fitting · Push-in fittings
QSM-G1/8-6	Push-in fitting · Push-in fittings
QSM-G1/8-4-I	Push-in fitting · Push-in fittings
QSM-G1/8-6-I	Push-in fitting · Push-in fittings
QSML-G1/8-4	Push-in L-fitting · Push-in fittings
QSML-G1/8-6	Push-in L-fitting · Push-in fittings
QSMLL-G1/8-4	Push-in L-fitting, long · Push-in fittings
QSMLL-G1/8-6	Push-in L-fitting, long · Push-in fittings
QSMT-G1/8-4	Push-in T-fitting · Push-in fittings
QSMT-G1/8-6	Push-in T-fitting · Push-in fittings
QSMTL-G1/8-4	Push-in T-fitting · Push-in fittings
QSMTL-G1/8-6	Push-in T-fitting · Push-in fittings
QSR-G1/8-4	Push-in fitting, rotatable · Push-in fittings
QSR-G1/8-6	Push-in fitting, rotatable · Push-in fittings
QSR-G1/8-8	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/8-4	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G1/8-6	Push-in L-fitting, rotatable · Push-in fittings
QSRL-G1/8-8	Push-in L-fitting, rotatable · Push-in fittings
QSMK-G1/8-4	Push-in fitting, self-sealing · Push-in fittings
QSMK-G1/8-6	Push-in fitting, self-sealing · Push-in fittings
QSK-G1/8-8	Push-in fitting, self-sealing · Push-in fittings
QSMKL-G1/8-4	Push-in L-fitting,self-sealing · Push-in fittings
QSMKL-G1/8-6	Push-in L-fitting,self-sealing · Push-in fittings
QSKL-G1/8-8	Push-in L-fitting,self-sealing · Push-in fittings
QSL-V0-G1/8-6	Push-in L-fitting · Push-in fittings
QSL-V0-G1/8-8	Push-in L-fitting · Push-in fittings
QST-V0-G1/8-6	Push-in T-fitting · Push-in fittings
QST-V0-G1/8-8	Push-in T-fitting · Push-in fittings
QSL-1/8-10	Push-in L-fitting · Push-in fittings
QST-1/8-10	Push-in T-fitting · Push-in fittings
GRLZ-1/8-QS-3-D	One-way flow control valve · Function fittings
GRLZ-1/8-QS-4-D	One-way flow control valve · Function fittings
GRLZ-1/8-QS-6-D	One-way flow control valve · Function fittings
GRLZ-1/8-QS-8-D	One-way flow control valve · Function fittings
NVF3-MOH-5/2-K-1/4	Solenoid valve · Valves
NVF3-MOH-5/2-K-1/4-EX	Solenoid valve · Valves
NVF3-MOH-5/2-K..+MSFW-230	Solenoid valve · Valves
NVF3-MOH-5/2-K..+MSFW-110	Solenoid valve · Valves
NVF3-MOH-5/2-K..+MSFG-24	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-F8	Solenoid valve · Valves
VSNC-F-B52-D-G14-F8	Solenoid valve · Valves
VSNC-F-P53C-MD-G14-F8	Solenoid valve · Valves
VSNC-F-P53U-MD-G14-F8	Solenoid valve · Valves
VSNC-F-P53E-MD-G14-F8	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-F8	Solenoid valve · Valves
VSNC-F-B52-D-N14-F8	Solenoid valve · Valves
VSNC-F-P53C-MD-N14-F8	Solenoid valve · Valves
VSNC-F-P53U-MD-N14-F8	Solenoid valve · Valves
VSNC-F-P53E-MD-N14-F8	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN	Solenoid valve · Valves
VSNC-F-B52-D-G14-FN	Solenoid valve · Valves
VSNC-F-P53C-MD-G14-FN	Solenoid valve · Valves
VSNC-F-P53U-MD-G14-FN	Solenoid valve · Valves
VSNC-F-P53E-MD-G14-FN	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-FN	Solenoid valve · Valves
VSNC-F-B52-D-N14-FN	Solenoid valve · Valves
VSNC-F-P53C-MD-N14-FN	Solenoid valve · Valves
VSNC-F-P53U-MD-N14-FN	Solenoid valve · Valves
VSNC-F-P53E-MD-N14-FN	Solenoid valve · Valves
VSNC-FTC-M52-MD-G14-FN	Solenoid valve · Valves
VSNC-FT-B52-D-G14-FN	Solenoid valve · Valves
VSNC-FTC-M52-MD-N14-FN	Solenoid valve · Valves
VSNC-FT-B52-D-N14-FN	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-F-B52-D-G14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-FC-M52-MD-N14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-F-B52-D-N14-FN-1A1-EX4-A	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-F8-1B2	Solenoid valve · Valves
VSNC-F-B52-D-G14-F8-1B2	Solenoid valve · Valves
VSNC-FTC-M52-MD-G14-FN-1A1	Solenoid valve · Valves
VSNC-FT-B52-D-G14-FN-1A1	Solenoid valve · Valves
DARQ-K-P-A1-F05-20-R1	Mounting flange adapter · Mounting kits for proximity sensors, other sensors
SRBE-CA3-YR90-MW-22A-1W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-1W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2N12-EX	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2M20-EX	Sensorbox · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-22A-1W-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-P-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-N-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-ZU-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-R-2A-1W-C2P20	Limit switch box · Cylinder sensors for direct mounting
SRBG-C1-N-1-AS-M12-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-P-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-ZU-M12	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-20N-ZC-M12-EX5	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-P-C2-C2	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-1-ZU-C2-C2	Sensorbox · Cylinder sensors for direct mounting
SRBG-C1-N-20N-ZC-C2-C2-EX5	Sensorbox · Cylinder sensors for direct mounting
DARQ-K-X1-A1-F05-20-R1	Mounting flange adapter · Mounting kits for proximity sensors, other sensors
DARQ-K-X1-A1-F05-30-R1	Mounting flange adapter · Mounting kits for proximity sensors, other sensors
SRBE-CA3-YR90-MW-22A-1W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-MW-22A-2W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-20N-ZC-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-P-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-N-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-N-1-ZU-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
SRBE-CA3-YR90-R-2A-1W-C2N12-C1	Sensorbox · Cylinder sensors for direct mounting
VOFC-LT-M32C-M-FG14-F19	Valve · Valves
VOFC-LT-M32C-M-FG14-F19A	Valve · Valves
VOFC-LT-M32C-MC-FGP14-F19	Valve · Valves
VOFC-LT-M32C-MC-FGP14-F19A	Valve · Valves
VOFC-LT-M32C-M-FG12-F19	Valve · Valves
VOFC-LT-M32C-M-FG12-F19A	Valve · Valves
VOFC-L-M52-M-FG14-F19	Valve · Valves
VOFC-L-M52-M-FG14-F19A	Valve · Valves
VOFC-L-B52-FG14-F19	Valve · Valves
VOFC-L-B52-FG14-F19A	Valve · Valves
VOFD-L50T-M32-MN-FG14-10-F10	Valve · Valves
VOFD-L50T-M32-MN-FGP14-10-F10	Valve · Valves
VOFC-LT-M32C-MC-FG13-F19	Valve · Valves
VOFC-LT-M32C-MC-FG13-F19A	Valve · Valves
VSNC	Solenoid valve · Valves
NPFC-L-2G18-F	Elbow fitting · Other connectors
NPFC-L-R18-G18-MF	Elbow fitting · Other connectors
NPFC-L-2R18-M	Elbow fitting · Other connectors
NPFC-Y-R18-2G18-MFF	Y-fitting · Other connectors
NPFC-T-3G18-F	T-fitting · Other connectors
NPFC-T-R18-2G18-MFF	T-fitting · Other connectors
NPFC-T-2G18-R18-FMF	T-fitting · Other connectors
NPFC-T-G18-2R18-FMM	T-fitting · Other connectors
NPFC-T-2R18-G18-MMF	T-fitting · Other connectors
NPFC-D-M7-G18-M	Double nipple · Other connectors
NPFC-D-2G18-M	Double nipple · Other connectors
NPFC-D-2R18-M	Double nipple · Other connectors
NPFC-S-2G18-F	Sleeve · Other connectors
NPFC-R-G38-G18-F	Reducing sleeve · Other connectors
NPFC-E1-2G18-FM	Extension · Other connectors
NPFC-E2-2G18-FM	Extension · Other connectors
NPFC-E3-2G18-FM	Extension · Other connectors
NPFC-E4-2G18-FM	Extension · Other connectors
NPFC-R-G14-G18-MF	Reducing nipple · Other connectors
NPFC-R-G38-G18-MF	Reducing nipple · Other connectors
NPFC-R-G14-G18-FM	Reducing nipple · Other connectors
NPFC-R-G38-G18-FM	Reducing nipple · Other connectors
NPFC-D-M5-G18-M	Double nipple · Other connectors
NPFC-D-2G18-M-P100	Double nipple · Other connectors
NPFC-R-G14-G18-F	Reducing sleeve · Other connectors
NPFC-R-G12-G18-F	Reducing sleeve · Other connectors
NPFC-R-G14-G18-MF-P100	Reducing nipple · Other connectors
NPFC-H-G18-F	Bulkhead fitting · Other connectors
VSNC-FC-M52-MD-G14-F8-1A1	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-1A1+G	Solenoid valve · Valves
VSNC-FC-M52-MD-G14-FN-3AA1+G	Solenoid valve · Valves
DARQ-R-A-S11-S8-12	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S8-12-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P5	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P10	Reducing sleeve (square) · Mounting accessories
DARQ-R-A-S11-S9-11-P50	Reducing sleeve (square) · Mounting accessories
DARQ-K-V-F04S11-F03S9-R13	Mounting kit · Mounting accessories
DARQ-K-V-F04S11-F04S11-R13	Mounting kit · Mounting accessories
DARQ-K-Z-F04S11-F03S9-R13	Mounting kit · Mounting accessories
DARQ-K-Z-F04S11-F04S11-R13	Mounting kit · Mounting accessories
DARQ-K-V-F04S11-F03S9-R1	Mounting kit · Mounting accessories
NPFC-D-2G18-M-F1A	Double nipple · Other connectors
SRBC-CA3-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-N-20N-ZC-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-MW-1-1WG-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-20N-ZC-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA3-YR90-N-1-P-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA4-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-N-20N-ZC-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBC-CA5-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
NPFC-DS-G18-G18-M	Double nipple · Other connectors
NPFC-DS-G18-G14-M	Double nipple · Other connectors
NPFC-RS-G14-G18-MF	Reducing nipple · Other connectors
NPFC-RS-G38-G18-MF	Reducing nipple · Other connectors
SRBK-CA4-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-ZU-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-R-2A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1W-M12	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-N-1-P-M12	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-22A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-N-1-P-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-N-1-ZU-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-R-2A-1W-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1WG-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-1-1WG-C2	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA4-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
SRBK-CA5-YR90-MW-1-1WG-C2-EX6	Limit switch box · Cylinder sensors for direct mounting
