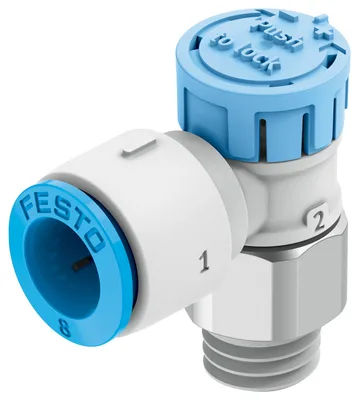

Festo VFOE-LS-T-G18-Q8

One-way flow control valve. Low-cost solution for standard applications. Simple and reliable adjustment of pneumatic cylinder speed. Extremely easy assembly. Fast commissioning. Compact dimensions. Sustainable in production thanks to the use of alternative materials

FestoMFR # VFOE-LS-T-G18-Q8SKU # YLSGCJAAM1BQMD

Valve functionSupply air one-way flow control function

Pneumatic connection, port 1QS-8

Pneumatic connection, port 2G1/8

Type of actuationManual

Adjustment componentRotary knob with latch

Type of mountingScrew-in

Have questions?Chat on WhatsApp

About This Product

Festo VFOE-LS-T-G18-Q8

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve functionSupply air one-way flow control function

Pneumatic connection, port 1QS-8

Pneumatic connection, port 2G1/8

Type of actuationManual

Adjustment componentRotary knob with latch

Type of mountingScrew-in

Standard nominal flow rate in flow control direction170

Standard nominal flow rate in blocked direction130, 200

Ambient temperature-10, 60

Material housingPBT

Explosion protectionThe information in the certificate must be observed!, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)

Mounting positionAny

Symbol00991453

Width across flats13

Rotatability360°/no continuous swivelling permissible

Operating pressure complete temperature range0.02, 1

Operating pressure complete temperature range0.2, 10

Operating pressure complete temperature range2.9, 145

Standard flow rate in flow control direction 0.6->0 MPa (6->0 bar, 87->0 psi)270

Standard flow rate in non-return direction 0.6->0 MPa (6->0 bar, 87->0 psi)320, 390

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364 zone III

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1

Media temperature-10, 60

Max. tightening torque6

Nominal torque5

Tolerance for nominal tightening torque±20%

Product weight9.5

Note on materialsRoHS compliant

Material coverPBT

Material dynamic sealsHNBR

Material threaded boltGalvanised steel

Material release ringPBT

Material static sealsNBR

Accessories 104
