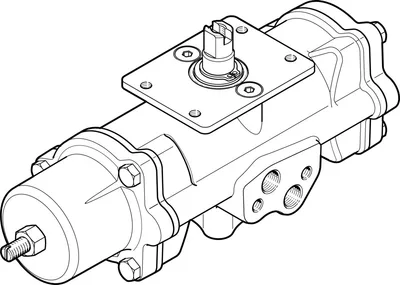

FESTO DAPS-0015-090-RS1-F03-CR
Quarter turn actuator. High breakaway torques. Sustainable thanks to extended life cycle and easier repairs. Flange hole pattern to ISO 5211. Mounting hole pattern to VDI/VDE 3845. Optionally with handwheel as a manual emergency override. Corrosion-resistant version made from stainless steel. To EU Explosion Protection Directive (ATEX). With safety functions
Size of valve actuator0015
Flange hole patternF03
Swivel angle90
Shaft connection depth10.2
CushioningNo cushioning
Mounting positionAny
About This Product
Quarter turn actuator. High breakaway torques. Sustainable thanks to extended life cycle and easier repairs. Flange hole pattern to ISO 5211. Mounting hole pattern to VDI/VDE 3845. Optionally with handwheel as a manual emergency override. Corrosion-resistant version made from stainless steel. To EU Explosion Protection Directive (ATEX). With safety functions
FESTO DAPS-0015-090-RS1-F03-CR
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size of valve actuator0015
Flange hole patternF03
Swivel angle90
Shaft connection depth10.2
CushioningNo cushioning
Mounting positionAny
Mode of operationSingle-acting
DesignScotch yoke system
Position detectionNone
Closing directionCloses to the right
Symbol00991266
Safety Integrity Level (SIL)up to SIL 2 high demand mode, up to SIL 2 Low Demand mode
Supply pressure for spring strength0.28
Supply pressure for spring strength2.8
Operating pressure0.28, 0.84
Operating pressure2.8, 8.4
Nominal operating pressure0.56
Nominal operating pressure5.6
CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)
UKCA marking (see declaration of conformity)To UK EX instructions
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Certificate issuing authorityGerman Technical Control Board North (TÜV Nord) 212170801
ATEX category gasII 2G
ATEX category dustII 2D
Explosion ignition protection type for gasEx h IIC T6...T3 Gb X
Explosion ignition protection type for dustEx h IIIC T85°C...T200°C Db X
Explosion ambient temperature-20°C <= Ta <= +60°C
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC3 - high corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Ambient temperature-20, 80
Spring return torque at 0° swivel angle5
Spring return torque at 50° swivel angle3.7
Spring return torque at 90° swivel angle7.5
Spring strength1
Air consumption at 0.6 MPa (6 bar, 87 psi) per cycle 0°-nominal swivel angle-0°0.6
Product weight1600
Shaft connectionT9
Pneumatic connectionG1/8
Note on materialsRoHS compliant
Material coverHigh-alloy stainless steel
Material number cover1,4408
Material sealsFluoro rubber, NBR, PUR
Material housingHigh-alloy stainless steel
Material number housing1,4408
Material screwsHigh-alloy stainless steel
Material shaftHigh-alloy stainless steel
Material number shaft1,4301
Accessories 355
Genuine accessories that can be used with the FESTO DAPS-0015-090-RS1-F03-CR motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| DASB-P1-HA-SB | Adapter kit · Mounting accessories | |
| PUN-H-8X1,25-NT | Plastic tubing · Tubes | |
| PUN-H-8X1,25-BL | Plastic tubing · Tubes | |
| PUN-H-8X1,25-SW | Plastic tubing · Tubes | |
| PUN-H-8X1,25-TBL | Plastic tubing · Tubes | |
| QSL-G1/8-8 | Push-in L-fitting · Fittings | |
| QS-G1/8-8-I | Push-in fitting · Fittings | |
| VFOE-LS-T-G18-Q4 | One-way flow control valve · Function fittings | |
| VFOE-LS-T-G18-Q6 | One-way flow control valve · Function fittings | |
| VFOE-LS-T-G18-Q8 | One-way flow control valve · Function fittings | |
| VFOE-LS-T-G18-Q4-F1A | One-way flow control valve · Function fittings | |
| VFOE-LS-T-G18-Q6-F1A | One-way flow control valve · Function fittings | |
| VFOE-LS-T-G18-Q8-F1A | One-way flow control valve · Function fittings | |
| SEU-1/8 | Quick exhaust valve · Function fittings | |
| SE-1/8-B | Quick exhaust valve · Function fittings | |
| QSW-1/8-4 | Push-in fitting · Push-in fittings | |
| QSW-1/8-6 | Push-in fitting · Push-in fittings | |
| QSW-1/8-8 | Push-in fitting · Push-in fittings | |
| QSL-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSM-1/8-4-100 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-100 | Push-in fitting · Push-in fittings | |
| QSML-1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-100 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-50 | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6-100 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8-50 | Push-in T-fitting · Push-in fittings | |
| QSL-V0-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSML-G1/8-4-100 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6-100 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8-100 | Push-in L-fitting, long · Push-in fittings | |
| GRLZ-1/8-B | One-way flow control valve · Function fittings | |
| GRLZ-1/8-RS-B | One-way flow control valve · Function fittings | |
| QSL-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/8-4-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-6-B | Push-in T-fitting · Push-in fittings | |
| QSTF-1/8-8-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/8-6-B | Multiple distributor · Push-in fittings | |
| QST3-1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/8-8 | Push-in T-fitting · Push-in fittings | |
| QS-G1/8-8 | Push-in fitting · Push-in fittings | |
| QSL-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/8-8 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-6-I | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/8-8-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSY-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-4 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/8-8 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSTF-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/8-6 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/8-6 | Multiple distributor · Push-in fittings | |
| QST3-G1/8-6-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSQ-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-4 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-6 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/8-8 | Multiple distributor · Push-in fittings | |
| QSM-G1/8-4 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6 | Push-in fitting · Push-in fittings | |
| QSM-G1/8-4-I | Push-in fitting · Push-in fittings | |
| QSM-G1/8-6-I | Push-in fitting · Push-in fittings | |
| QSML-G1/8-4 | Push-in L-fitting · Push-in fittings | |
| QSML-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSMLL-G1/8-4 | Push-in L-fitting, long · Push-in fittings | |
| QSMLL-G1/8-6 | Push-in L-fitting, long · Push-in fittings | |
| QSMT-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMT-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-4 | Push-in T-fitting · Push-in fittings | |
| QSMTL-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QSR-G1/8-4 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-6 | Push-in fitting, rotatable · Push-in fittings | |
| QSR-G1/8-8 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-4 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-6 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSRL-G1/8-8 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSMK-G1/8-4 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMK-G1/8-6 | Push-in fitting, self-sealing · Push-in fittings | |
| QSK-G1/8-8 | Push-in fitting, self-sealing · Push-in fittings | |
| QSMKL-G1/8-4 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSMKL-G1/8-6 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSKL-G1/8-8 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QSL-V0-G1/8-6 | Push-in L-fitting · Push-in fittings | |
| QSL-V0-G1/8-8 | Push-in L-fitting · Push-in fittings | |
| QST-V0-G1/8-6 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/8-8 | Push-in T-fitting · Push-in fittings | |
| QSL-1/8-10 | Push-in L-fitting · Push-in fittings | |
| QST-1/8-10 | Push-in T-fitting · Push-in fittings | |
| GRLZ-1/8-QS-3-D | One-way flow control valve · Function fittings | |
| GRLZ-1/8-QS-4-D | One-way flow control valve · Function fittings | |
| GRLZ-1/8-QS-6-D | One-way flow control valve · Function fittings | |
| GRLZ-1/8-QS-8-D | One-way flow control valve · Function fittings | |
| NVF3-MOH-5/2-K-1/4 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K-1/4-EX | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K..+MSFW-230 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K..+MSFW-110 | Solenoid valve · Valves | |
| NVF3-MOH-5/2-K..+MSFG-24 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-G14-F8 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-N14-F8 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53C-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53U-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-F-P53E-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-G14-FN | Solenoid valve · Valves | |
| VSNC-FT-B52-D-G14-FN | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-N14-FN | Solenoid valve · Valves | |
| VSNC-FT-B52-D-N14-FN | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-N14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-F-B52-D-N14-FN-1A1-EX4-A | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-F8-1B2 | Solenoid valve · Valves | |
| VSNC-F-B52-D-G14-F8-1B2 | Solenoid valve · Valves | |
| VSNC-FTC-M52-MD-G14-FN-1A1 | Solenoid valve · Valves | |
| VSNC-FT-B52-D-G14-FN-1A1 | Solenoid valve · Valves | |
| DARQ-K-P-A1-F05-20-R1 | Mounting flange adapter · Mounting kits for proximity sensors, other sensors | |
| SRBE-CA3-YR90-MW-22A-1W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-1W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2N12-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2M20-EX | Sensorbox · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-22A-1W-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-20N-ZC-C2P20-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-P-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-N-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-ZU-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-R-2A-1W-C2P20 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-AS-M12-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-P-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-ZU-M12 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-20N-ZC-M12-EX5 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-P-C2-C2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-1-ZU-C2-C2 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBG-C1-N-20N-ZC-C2-C2-EX5 | Sensorbox · Cylinder sensors for direct mounting | |
| DARQ-K-X1-A1-F05-20-R1 | Mounting flange adapter · Mounting kits for proximity sensors, other sensors | |
| DARQ-K-X1-A1-F05-30-R1 | Mounting flange adapter · Mounting kits for proximity sensors, other sensors | |
| SRBE-CA3-YR90-MW-22A-1W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-MW-22A-2W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-20N-ZC-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-P-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-N-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-N-1-ZU-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| SRBE-CA3-YR90-R-2A-1W-C2N12-C1 | Sensorbox · Cylinder sensors for direct mounting | |
| VOFC-LT-M32C-M-FG14-F19 | Valve · Valves | |
| VOFC-LT-M32C-M-FG14-F19A | Valve · Valves | |
| VOFC-LT-M32C-MC-FGP14-F19 | Valve · Valves | |
| VOFC-LT-M32C-MC-FGP14-F19A | Valve · Valves | |
| VOFC-LT-M32C-M-FG12-F19 | Valve · Valves | |
| VOFC-LT-M32C-M-FG12-F19A | Valve · Valves | |
| VOFC-L-M52-M-FG14-F19 | Valve · Valves | |
| VOFC-L-M52-M-FG14-F19A | Valve · Valves | |
| VOFC-L-B52-FG14-F19 | Valve · Valves | |
| VOFC-L-B52-FG14-F19A | Valve · Valves | |
| VOFD-L50T-M32-MN-FG14-10-F10 | Valve · Valves | |
| VOFD-L50T-M32-MN-FGP14-10-F10 | Valve · Valves | |
| VOFC-LT-M32C-MC-FG13-F19 | Valve · Valves | |
| VOFC-LT-M32C-MC-FG13-F19A | Valve · Valves | |
| VSNC | Solenoid valve · Valves | |
| NPFC-L-2G18-F | Elbow fitting · Other connectors | |
| NPFC-L-R18-G18-MF | Elbow fitting · Other connectors | |
| NPFC-L-2R18-M | Elbow fitting · Other connectors | |
| NPFC-Y-R18-2G18-MFF | Y-fitting · Other connectors | |
| NPFC-T-3G18-F | T-fitting · Other connectors | |
| NPFC-T-R18-2G18-MFF | T-fitting · Other connectors | |
| NPFC-T-2G18-R18-FMF | T-fitting · Other connectors | |
| NPFC-T-G18-2R18-FMM | T-fitting · Other connectors | |
| NPFC-T-2R18-G18-MMF | T-fitting · Other connectors | |
| NPFC-D-M7-G18-M | Double nipple · Other connectors | |
| NPFC-D-2G18-M | Double nipple · Other connectors | |
| NPFC-D-2R18-M | Double nipple · Other connectors | |
| NPFC-S-2G18-F | Sleeve · Other connectors | |
| NPFC-R-G38-G18-F | Reducing sleeve · Other connectors | |
| NPFC-E1-2G18-FM | Extension · Other connectors | |
| NPFC-E2-2G18-FM | Extension · Other connectors | |
| NPFC-E3-2G18-FM | Extension · Other connectors | |
| NPFC-E4-2G18-FM | Extension · Other connectors | |
| NPFC-R-G14-G18-MF | Reducing nipple · Other connectors | |
| NPFC-R-G38-G18-MF | Reducing nipple · Other connectors | |
| NPFC-R-G14-G18-FM | Reducing nipple · Other connectors | |
| NPFC-R-G38-G18-FM | Reducing nipple · Other connectors | |
| NPFC-D-M5-G18-M | Double nipple · Other connectors | |
| NPFC-D-2G18-M-P100 | Double nipple · Other connectors | |
| NPFC-R-G14-G18-F | Reducing sleeve · Other connectors | |
| NPFC-R-G12-G18-F | Reducing sleeve · Other connectors | |
| NPFC-R-G14-G18-MF-P100 | Reducing nipple · Other connectors | |
| NPFC-H-G18-F | Bulkhead fitting · Other connectors | |
| VSNC-FC-M52-MD-G14-F8-1A1 | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-1A1+G | Solenoid valve · Valves | |
| VSNC-FC-M52-MD-G14-FN-3AA1+G | Solenoid valve · Valves | |
| NPFC-D-2G18-M-F1A | Double nipple · Other connectors | |
| SRBC-CA3-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-N-20N-ZC-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-MW-1-1WG-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-20N-ZC-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA3-YR90-N-1-P-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA4-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-N-20N-ZC-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBC-CA5-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| NPFC-DS-G18-G18-M | Double nipple · Other connectors | |
| NPFC-DS-G18-G14-M | Double nipple · Other connectors | |
| NPFC-RS-G14-G18-MF | Reducing nipple · Other connectors | |
| NPFC-RS-G38-G18-MF | Reducing nipple · Other connectors | |
| SRBK-CA4-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-ZU-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-R-2A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1W-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-N-1-P-M12 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-22A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-N-1-P-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-N-1-ZU-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-R-2A-1W-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1WG-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-1-1WG-C2 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA4-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting | |
| SRBK-CA5-YR90-MW-1-1WG-C2-EX6 | Limit switch box · Cylinder sensors for direct mounting |
Related Products
View Details
Festo
DSL-16- -270-P-A-S2-B
MFR #DSL-16- -270-P-A-S2-B
SKU #YLS8O1DFLDQOC8L
View Details
Festo
DSL-16- -270-P-A-S20-KF-B
MFR #DSL-16- -270-P-A-S20-KF-B
SKU #YLSTG3XGDLFNV8F
View Details
Festo
DSL-16- -270-P-A-S2-KF-B
MFR #DSL-16- -270-P-A-S2-KF-B
SKU #YLSQQ5PTFWYNWLG
View Details
Festo
DSL-16- -270-CC-A-S20-B
MFR #DSL-16- -270-CC-A-S20-B
SKU #YLSDU3JXV17IHRS
View Details
Festo
DSL-16- -270-CC-A-S2-B
MFR #DSL-16- -270-CC-A-S2-B
SKU #YLSZMIJIJLMBL90
View Details
Festo
DSL-16- -270-CC-A-S20-KF-B
MFR #DSL-16- -270-CC-A-S20-KF-B
SKU #YLSLHL38NKFHUO8
View Details
Festo
DSL-16- -270-CC-A-S2-KF-B
MFR #DSL-16- -270-CC-A-S2-KF-B
SKU #YLSZZWYKQDM0IH
View Details
Festo
DSL-20- -270-P-A-S20-B
MFR #DSL-20- -270-P-A-S20-B
SKU #YLSTMW2XEHMMFUC
View Details
Festo
DSL-20- -270-P-A-S2-B
MFR #DSL-20- -270-P-A-S2-B
SKU #YLSOYJHZ6WDVCCK
Featured Products
View Details
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
View Details
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
View Details
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
View Details
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Related Searches
FESTO DAPS-0015-090-RS1-F03-CR priceFESTO DAPS-0015-090-RS1-F03-CR quotebuy FESTO DAPS-0015-090-RS1-F03-CRDAPS-0015-090-RS1-F03-CR priceDAPS-0015-090-RS1-F03-CR stock availabilityFESTO spare partsFESTO DAPS-0015-090-RS1-F03-CR equivalentFESTO DAPS-0015-090-RS1-F03-CR specifications
