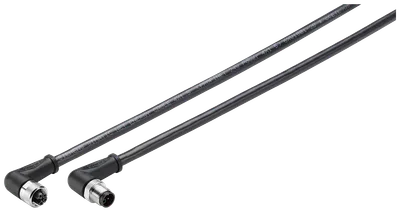

Siemens 6XV1801-6GH30
Power connecting cable M12-90/M12-90 for the power supply of the terminal devices / network components: pre-assembled cable with M12 plug and M12 socket, L-coded, 4 pin, 3 m.
product brand nameSIMATIC NET
cable designationLIYY 4X1X1.5 BK
wire length3 m
operating voltage / RMS value600 V
number of electrical cores4
type of electrical connectionM12-90
Ürün Hakkında
Power connecting cable M12-90/M12-90 for the power supply of the terminal devices / network components: pre-assembled cable with M12 plug and M12 socket, L-coded, 4 pin, 3 m.
Siemens 6XV1801-6GH30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useCable for connecting the 24 V power supply to RF185C, RF186C, RF188C to IP65/67 degree of protection
cable designationLIYY 4X1X1.5 BK
wire length3 m
electrical data
operating voltage / RMS value600 V
conductor cross section / of the power line1,5 mm²
continuous current / of the power lines15 A; 40°C according to DIN VDE 0891-1 (17 A 20°C according to DIN VDE 0891-1)
mechanical data
number of electrical cores4
type of electrical connectionM12-90
of inner conductor1,6 mm
of the wire insulation2,3 mm
of cable sheath7,7 mm
symmetrical tolerance of the outer diameter / of cable sheath0,3 mm
conductor class5
of the conductorCU, blank
of the wire insulationPVC
of cable sheathPVC
product component / PE connectionYok
marking / of coresColor
of the power line insulationbrown / white / blue / black
of cable sheathBlack
with single bend / minimum permissible31 mm
with multiple bends / minimum permissible62 mm
with continuous bending62 mm
number of bending cycles2000000
tensile load / maximum100 N
weight per length97 kg/km
plug
type of plug interlockscrewed
design of plug-in connectionM12-90
connector codingM12
connector coding / of the M12 circular connectorL-coded
ambient conditions
during operation-20... +90 °C
during storage-30... +90 °C
during transport-30... +90 °C
during installation-20... +90 °C
ambient condition / for operationtemperature range for permanent installation -30 °C to 90 °C
fire behaviorFlame-resistant acc. to IEC 60332-1-2
to mineral oilOil resistant according to EN 50290-2-22 (VDE 0819), compound type TM55 (7x24h/90 °C)
to greaseConditional resistance
to waterConditional resistance
radiological resistance / to UV radiationresistant
protection class IPIP65 / 67
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar
certificate of suitabilityUL2238 E300110
EAC approvalVar
RoHS conformityVar
