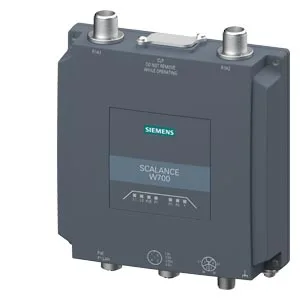

Siemens 6GK5766-1GE00-7TA0
Please observe national approvals: www.siemens.com/wireless-approvals WAM766-1 EEC, 1 radio, 2,4/5 GHz, 2 N-Connect connections, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross) per radio, 1x 10/100/1000 Mbps M12 socket X-encoded ile PoE, redundant 24 V DC, M12 socket L-encoded, için expanded environmental conditions, IP65/IP67, -30...+75 °C,, CLP slot, DI/DQ, A-encoded, observe national approvals! CERT ID: MSAX65-W1-M12-E2 FCC ID: LYHMSAX65V1 çalışma outside of USA/Israel scope of besleme: sealing caps için connections
product brand nameSCALANCE
with WLAN / maximum1201 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
for power supply1
for redundant voltage supply1
for redundant voltage supplyM12 interface (4-pin, L-coded)
Ürün Hakkında
Please observe national approvals: www.siemens.com/wireless-approvals WAM766-1 EEC, 1 radio, 2,4/5 GHz, 2 N-Connect connections, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross) per radio, 1x 10/100/1000 Mbps M12 socket X-encoded ile PoE, redundant 24 V DC, M12 socket L-encoded, için expanded environmental conditions, IP65/IP67, -30...+75 °C,, CLP slot, DI/DQ, A-encoded, observe national approvals! CERT ID: MSAX65-W1-M12-E2 FCC ID: LYHMSAX65V1 çalışma outside of USA/Israel scope of besleme: sealing caps için connections
Siemens 6GK5766-1GE00-7TA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
with WLAN / maximum1201 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum / note1
number of electrical/optical connections / for gigabit Ethernet / maximum1
for network components or terminal equipment1
for power supply1
for redundant voltage supply1
for network components or terminal equipmentM12 interface (8-pole, X-coded), PoE
for redundant voltage supplyM12 interface (4-pin, L-coded)
memory
CLPVar
CLP iFeaturesVar
interfaces / wireless
number of radio cards / permanently installed2
transmission mode / for multiple input multiple output (MIMO)2x2
number of spatial streams2
number of electrical connections / for external antenna(s)2
type of electrical connection / for external antenna(s)N-Connect (socket)
product feature / external antenna can be mounted directly on deviceVar
signal inputs/outputs
number of digital inputs1
number of digital outputs1
type of electrical connection / at the digital inputs/outputsM12 interface (4-pin, A-coded)
input voltage / at digital input / at DC-30... +30 V
output voltage / at digital output / at DC / maximum24 V; 0,5 A
operational current / of the signaling contacts / at DC / at 30 V / maximum0,008 A
supply voltage, current consumption, power loss
type of voltage / of the supply voltageRedundant 24 V DC Power Supply, M12, L-coded
from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V
at DC / at 24 V0,55 A
at DC / at 24 V / sleep mode / maximum0,013 A
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical0,27 A
at DC / at 24 V13,2 W
at DC / at 24 V / sleep mode / maximum0,3 W
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical12,96 W
from M12 power Connector (L-coded) for redundant voltage supply24 V
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
from M12 power Connector (L-coded) for redundant voltage supply24 V
supply voltage / 2 / rated value24 V
type of voltage / 2 / of the supply voltageDC
supply voltage / 3 / rated value48 V
type of voltage / 3 / of the supply voltageDC, PoE
ambient conditions
during operation-30... +75 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum90 %
protection class IPIP65/IP67
design, dimensions and weights
width150 mm
height179,5 mm
depth45 mm
width / of the enclosure / without antenna150 mm
height / of the enclosure / without antenna179,5 mm
depth / of the enclosure / without antenna45 mm
net weight1,1 kg
product feature / conformal coatingVar
fastening methodwall mounting ve assembly on VESA support 75 x 75 mm, mounting on DIN rail with separate mounting adapter.
S7-300 rail mountingVar
S7-1500 rail mountingVar
35 mm DIN-rail mountingVar
wall mountingVar
VESA mountingVar; 75 x 75mm
radio frequencies
for WLAN in 2.4 GHz frequency band2,41... 2,48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band4,9... 5,8 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeVar
product function / client ModeVar
number of SSIDs8
iPCF Access PointYok; iPCF-2 is not compatible with iPCF. See documentation for function description.
iPCF-2 access pointVar; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' veya 'SCALANCE CLP 2GB W700 Client iFeatures'
iPCF clientYok
iPCF-2 clientVar; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' veya 'SCALANCE CLP 2GB W700 Client iFeatures'
iPCF-MC Access PointYok
product function / iPRPVar
product functions / management, configuration, engineering
number of manageable IP addresses / in client2
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
configuration with STEP 7 in the TIA PortalVar
WDSYok
Address Resolution Protocol (ARP)Var
ICMPVar
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
DCPVar
LLDPVar
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisVar
SysLogVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
product functions / VLAN
function VLAN with IWLANVar
number of VLANs / maximum24
product functions / DHCP
DHCP clientVar
product functions / redundancy
STP/RSTPVar
MSTPVar
RSTPVar
redundancy procedure MSTPVar
product functions / security
management security, ACL-IP basedYok
IEEE 802.1x (radius)Var
NAT/NAPTVar
access protection according to IEEE802.11iVar
WPA/WPA2Var
WPA3Var
TKIP/AESVar
RADIUS clientVar
SSHVar
with SSL4096 bit
product functions / time
NTPVar
SNTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals
EC Declaration of ConformityVar
CE markingVar
E1 approvalVar
railway application in accordance with EN 50155Var
railway application in accordance with EN 50121-4Var
fire protection in accordance with EN 45545-2Var
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afVar
IEEE 802.11aVar
IEEE 802.11bVar
IEEE 802.11eVar
IEEE 802.11gVar
IEEE 802.11hVar
IEEE 802.11iVar
IEEE 802.11nVar
IEEE 802.11acVar
IEEE 802.11axVar
IEEE 802.11rVar
MTBF24 a
reference temperature40 °C
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN IEC 60079-0 : 2018, EN60079-7:2015 + A1 : 2018; II 3 G Ex ec IIC T4 Gc
from CSA and ULUL121201, CAN/CSA C22.2 Yok.213, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC T4, UL File E240480
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total394,89 kg
during manufacturing33,7 kg
during operation361 kg
after end of life0,19 kg
Aksesuarlar 104
Siemens 6GK5766-1GE00-7TA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK5907-4UA00-0AA0 | Aksesuar | |
| 6GK5907-8UA00-0AA0 | Aksesuar | |
| 6GK1900-0UB00-0AA0 | Aksesuar | |
| 6GK5795-4MC00-0AA3 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MD00-0AA3 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MX00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MN10-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MP10-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-4MN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6XV1875-2D | Aksesuar · Antenna · WLAN | |
| 6GK5793-6DG00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DJ00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6DC00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DK00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DL00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DP00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5897-4ME00-0AA0 | Aksesuar · Antenna | |
| 6GK5792-4DN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6XV1875-2A | Aksesuar · Antenna · WLAN | |
| 6GK5792-6MN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5792-8DN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6XV1875-5AH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK1907-0DC00-6AA4 | Aksesuar | |
| 6XV1875-5AH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AN10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5795-1TN00-1AA0 | Aksesuar | |
| 6GK5798-2LP10-2AA6 | Aksesuar | |
| 6GK5798-0CP00-1AA0 | Aksesuar | |
| 6GK5798-2PP00-2AA6 | Aksesuar | |
| 6GK5798-8MF00-0AA1 | Aksesuar | |
| 6GK5798-8MA00-0AA1 | Aksesuar | |
| 6XV1801-6DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GE50 | Aksesuar · Cables · power cables | |
| 6XV1875-5SH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1801-6GH10 | Aksesuar · Cables · power cables | |
| 6XV1875-5SH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1801-6GH15 | Aksesuar · Cables · power cables | |
| 6XV1875-5SH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1801-6GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH30 | Aksesuar · Cables · power cables | |
| 6XV1878-5GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-0DB50-6AA0 | Aksesuar | |
| 6GK1901-0DB50-6AA8 | Aksesuar | |
| 6GK1901-0DE10-6AA0 | Aksesuar | |
| 6GK1901-0DE20-6AA0 | Aksesuar | |
| 6GK1901-0DM40-2AA5 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6GK1906-0EA00 | Aksesuar | |
| 6GK1906-0EB00 | Aksesuar | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1801-6GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN15 | Aksesuar · Cables · power cables | |
| 6XV1878-5HN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN80 | Aksesuar · Cables · network cable electrical | |
| 6ES7193-6DL00-2AA0 | Aksesuar · Accessories | |
| 6GK1900-0HL00-0AA0 | Aksesuar | |
| 6GK1900-0KL00-0AA0 | Aksesuar | |
| 6GK1900-0MB00-0AC0 | Aksesuar | |
| 6GK1900-0MB00-6AA0 | Aksesuar | |
| 6GK1900-0ML00-0AA0 | Aksesuar | |
| 6GK1900-0MN00-0AA0 | Aksesuar | |
| 6GK1900-0NB00-0AC0 | Aksesuar | |
| 6GK1900-0NB00-6AA0 | Aksesuar | |
| 6GK1900-0NL00-0AA0 | Aksesuar | |
| 6GK1900-0RL00-0AA0 | Aksesuar | |
| 6GK1900-0UQ00-0AA0 | Aksesuar | |
| 6GK1900-1GB00-0AC0 | Aksesuar | |
| 6GK1900-1GL00-0AA0 | Aksesuar | |
| 6GK1900-1GP00-0AB0 | Aksesuar |
İlgili Ürünler
Detayları Gör
Siemens
6GK1411-5AB10
MFR #6GK1411-5AB10
SKU #YLSWCVVF4PMPV5M
Detayları Gör
Siemens
6GK1411-5AC00
MFR #6GK1411-5AC00
SKU #YLSX1BWVS5DB97H
Detayları Gör
Siemens
6GK1411-5BB00
MFR #6GK1411-5BB00
SKU #YLS8ZXA1XMOM1Z2
Detayları Gör
Siemens
6GK1562-3AA01
MFR #6GK1562-3AA01
SKU #YLSUPE0SE2ALSG
Detayları Gör
Siemens
6GK1571-1AA00-0AD0
MFR #6GK1571-1AA00-0AD0
SKU #YLSNEGUF7BUFUDI
Detayları Gör
Siemens
6GK1700-0AA16-0AA0
MFR #6GK1700-0AA16-0AA0
SKU #YLSSJRML6XO3MG
Detayları Gör
Siemens
6GK1700-0AA17-0AA0
MFR #6GK1700-0AA17-0AA0
SKU #YLSYL6QBEDHUOAQ
Detayları Gör
Siemens
6GK1700-0AA18-0AA0
MFR #6GK1700-0AA18-0AA0
SKU #YLSMHAXXPQWTSZT
Detayları Gör
Siemens
6GK1700-0AA23-0AA0
MFR #6GK1700-0AA23-0AA0
SKU #YLSEYSK9HEFTQ3
Öne Çıkan Ürünler
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
İlgili Aramalar
Siemens 6GK5766-1GE00-7TA0 fiyatSiemens 6GK5766-1GE00-7TA0 teklif alSiemens 6GK5766-1GE00-7TA0 satın al6GK5766-1GE00-7TA0 fiyat6GK5766-1GE00-7TA0 stok durumuSiemens yedek parçaSiemens 6GK5766-1GE00-7TA0 muadilSiemens 6GK5766-1GE00-7TA0 teknik özellikler
