Detayları Gör
Siemens
6GK1411-1AC00
MFR #6GK1411-1AC00
SKU #YLSUPUJLQ5SX
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

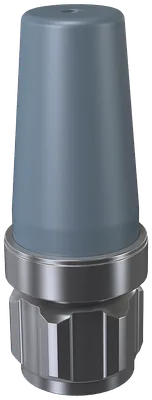

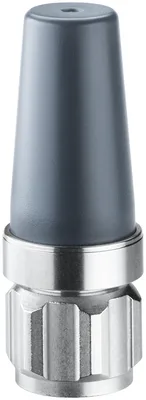

Siemens 6GK5795-4MX00-0AA0
Please observe national approvals: www.siemens.com/wireless-approvals omnidirectional characteristic; ile railway approval; incl. N-Connect male plug straight: 2/2,5 dBi; IP68/69K (-40-+85 °C), WLAN 2,4/5 GHz ve private 5G networks; Wi-Fi compliance ve observe national approvals; direct montaj on SCALANCE devices ile N-Connect bağlantı system; scope of teslimat: 1x ANT795-4MX, compact instructions as hard copy German/English.
product brand nameSCALANCE
type of wireless network / is supported5G private networks, WLAN
operating frequency / 11700... 2000 MHz
operating frequency / 22000... 2700 MHz
operating frequency / 32700... 3800 MHz
operating frequency / 44900... 5925 MHz
Ürün Hakkında
Please observe national approvals: www.siemens.com/wireless-approvals omnidirectional characteristic; ile railway approval; incl. N-Connect male plug straight: 2/2,5 dBi; IP68/69K (-40-+85 °C), WLAN 2,4/5 GHz ve private 5G networks; Wi-Fi compliance ve observe national approvals; direct montaj on SCALANCE devices ile N-Connect bağlantı system; scope of teslimat: 1x ANT795-4MX, compact instructions as hard copy German/English.
Siemens 6GK5795-4MX00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
radio frequencies
type of wireless network / is supported5G private networks, WLAN
operating frequency / 11700... 2000 MHz
operating frequency / 22000... 2700 MHz
operating frequency / 32700... 3800 MHz
operating frequency / 44900... 5925 MHz
operating frequency / 55925... 7125 MHz
for WLAN in 2.4 GHz frequency band2,4... 2,7 GHz
for WLAN in 5 GHz frequency band 14,9... 5,92 GHz
electrical data
with linear radiation / in operating frequency area 1 / typical1,5 dB
with linear radiation / in operating frequency area 2 / typical2 dB
with linear radiation / in operating frequency area 3 / typical1,5 dB
with linear radiation / in operating frequency area 4 / typical2 dB
with linear radiation / in operating frequency area 5 / typical2,5 dB
with linear radiation / in operating frequency area 6 / typical3 dB
impedance50 Ω
polarizationLinear Vertical
radiation characteristicomnidirectional
standing wave ratio (VSWR) / maximum2
in the 2.4 GHz frequency band / horizontal360°
in the 5 GHz frequency band / horizontal360°
number of electrical connections / of the antenna1
type of electrical connection / of the antennaN-Connector
design of plug-in connectionmale, straight
angle of inclination / downward / maximum0°
mechanical data
of outer shellASA
ambient conditions
during operation-40... +85 °C
during storage-40... +85 °C
during transport-40... +85 °C
protection class IPIP68/IP69K
shock resistanceaccording to EN61373, category1, class b (for railway carriage)

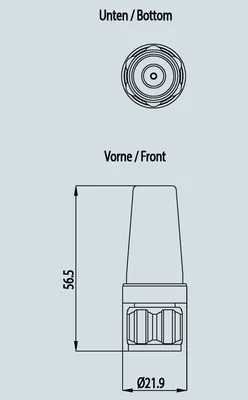

design, dimensions and weights
height55 mm
diameter22 mm
net weight50 g
wall mountingYok
roof mountingYok
directly on the deviceVar
product features, product functions, product components / general
product feature / silicon-freeVar
standards, specifications, approvals
RoHS conformityVar
railway application in accordance with EN 50155Var
fire protection in accordance with EN 45545-2Var
product conformityUL 94-HB
Aksesuarlar 1
Siemens 6GK5795-4MX00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9MC0110-1EG00-0AA3 | Servis · Box PC |
