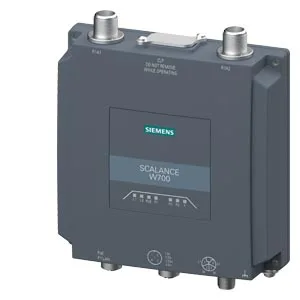

Siemens 6GK5766-1GE00-3DC0

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 6GK5766-1GE00-3DC0

Please observe national approvals: www.siemens.com/wireless-approvals 1 radio, 2,4/5 GHz, 2 N-Connect connections, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross) per radio, 1x 10/100/1000 Mbps M12 socket X-encoded ile PoE, redundant 24 V DC, M12 socket L-encoded; IP65, -30...+60 °C, CLP slot, DI/DQ, A-encoded, observe national approvals! CERT ID: MSAX65-W1-M12-E2, çalışma in Egypt ve Israel. scope of besleme: sealing caps için connections

SiemensMFR # 6GK5766-1GE00-3DC0SKU # YLSB6FW5WN5UDY
product brand nameSCALANCE
with WLAN / maximum1201 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
for power supply1
for redundant voltage supply1
for redundant voltage supplyM12 interface (4-pin, L-coded)
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Please observe national approvals: www.siemens.com/wireless-approvals 1 radio, 2,4/5 GHz, 2 N-Connect connections, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross) per radio, 1x 10/100/1000 Mbps M12 socket X-encoded ile PoE, redundant 24 V DC, M12 socket L-encoded; IP65, -30...+60 °C, CLP slot, DI/DQ, A-encoded, observe national approvals! CERT ID: MSAX65-W1-M12-E2, çalışma in Egypt ve Israel. scope of besleme: sealing caps için connections

Siemens 6GK5766-1GE00-3DC0

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSCALANCE
transfer rate
with WLAN / maximum1201 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum / note1
number of electrical/optical connections / for gigabit Ethernet / maximum1
for network components or terminal equipment1
for power supply1
for redundant voltage supply1
for network components or terminal equipmentM12 interface (8-pole, X-coded), PoE
for redundant voltage supplyM12 interface (4-pin, L-coded)
memory
CLPVar
CLP iFeaturesVar
interfaces / wireless
number of radio cards / permanently installed2
transmission mode / for multiple input multiple output (MIMO)2x2
number of spatial streams2
number of electrical connections / for external antenna(s)2
type of electrical connection / for external antenna(s)N-Connect (socket)
product feature / external antenna can be mounted directly on deviceVar
signal inputs/outputs
number of digital inputs1
number of digital outputs1
type of electrical connection / at the digital inputs/outputsM12 interface (4-pin, A-coded)
input voltage / at digital input / at DC-30... +30 V
output voltage / at digital output / at DC / maximum24 V; 0,5 A
operational current / of the signaling contacts / at DC / at 30 V / maximum0,008 A
supply voltage, current consumption, power loss
type of voltage / of the supply voltageRedundant 24 V DC Power Supply, M12, L-coded
from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V
at DC / at 24 V0,55 A
at DC / at 24 V / sleep mode / maximum0,013 A
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical0,27 A
at DC / at 24 V13,2 W
at DC / at 24 V / sleep mode / maximum0,3 W
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical12,96 W
from M12 power Connector (L-coded) for redundant voltage supply24 V
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
from M12 power Connector (L-coded) for redundant voltage supply24 V
supply voltage / 2 / rated value24 V
type of voltage / 2 / of the supply voltageDC
supply voltage / 3 / rated value48 V
type of voltage / 3 / of the supply voltageDC, PoE
ambient conditions
during operation-30... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum90 %
protection class IPIP65
design, dimensions and weights
width150 mm
height179,5 mm
depth45 mm
width / of the enclosure / without antenna150 mm
height / of the enclosure / without antenna179,5 mm
depth / of the enclosure / without antenna45 mm
net weight1,1 kg
fastening methodwall mounting ve assembly on VESA support 75 x 75 mm, mounting on DIN rail with separate mounting adapter.
S7-300 rail mountingVar
S7-1500 rail mountingVar
35 mm DIN-rail mountingVar
wall mountingVar
VESA mountingVar; 75 x 75mm
radio frequencies
for WLAN in 2.4 GHz frequency band2,41... 2,48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band4,9... 5,8 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeYok
product function / client ModeVar
number of SSIDs1
iPCF Access PointYok; iPCF-2 is not compatible with iPCF. See documentation for function description.
iPCF-2 access pointYok; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' veya 'SCALANCE CLP 2GB W700 Client iFeatures'
iPCF clientYok
iPCF-2 clientVar; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' veya 'SCALANCE CLP 2GB W700 Client iFeatures'
iPCF-MC Access PointYok
product function / iPRPVar
product functions / management, configuration, engineering
number of manageable IP addresses / in client2
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
configuration with STEP 7 in the TIA PortalVar
WDSYok
Address Resolution Protocol (ARP)Var
ICMPVar
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
DCPVar
LLDPVar
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisVar
SysLogVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
product functions / VLAN
function VLAN with IWLANVar
number of VLANs / maximum24
product functions / DHCP
DHCP clientVar
product functions / redundancy
STP/RSTPVar
MSTPVar
RSTPVar
redundancy procedure MSTPVar
product functions / security
management security, ACL-IP basedYok
IEEE 802.1x (radius)Var
NAT/NAPTVar
access protection according to IEEE802.11iVar
WPA/WPA2Var
WPA3Var
TKIP/AESVar
RADIUS clientVar
SSHVar
with SSL4096 bit
product functions / time
NTPVar
SNTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals
EC Declaration of ConformityVar
CE markingVar
E1 approvalVar
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afVar
IEEE 802.11aVar
IEEE 802.11bVar
IEEE 802.11eVar
IEEE 802.11gVar
IEEE 802.11hVar
IEEE 802.11iVar
IEEE 802.11nVar
IEEE 802.11acVar
IEEE 802.11axVar
IEEE 802.11rVar
MTBF24 a
reference temperature40 °C
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN IEC 60079-0 : 2018, EN60079-7:2015 + A1 : 2018; II 3 G Ex ec IIC T4 Gc
from CSA and ULUL121201, CAN/CSA C22.2 Yok.213, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC T4, UL File E240480
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total394,89 kg
during manufacturing33,7 kg
during operation361 kg
after end of life0,19 kg
