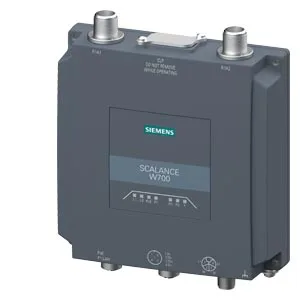

Siemens 6GK5766-1GE00-3DB0
Please observe national approvals: www.siemens.com/wireless-approvals 1 radio, 2,4/5 GHz, 2 N-Connect connections, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross) per radio, 1x 10/100/1000 Mbps M12 socket X-encoded ile PoE, redundant 24 V DC, M12 socket L-encoded; IP65, -30...+60 °C, CLP slot, DI/DQ, A-encoded, observe national approvals! CERT ID: MSAX65-W1-M12-E2, FCCID: LYHMSAX65V1, çalışma in the USA scope of besleme: sealing caps için connections
product brand nameSCALANCE
with WLAN / maximum1201 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
for power supply1
for redundant voltage supply1
for redundant voltage supplyM12 interface (4-pin, L-coded)
Ürün Hakkında
Please observe national approvals: www.siemens.com/wireless-approvals 1 radio, 2,4/5 GHz, 2 N-Connect connections, iFeatures support via CLP, IEEE 802.11ax (Wi-Fi 6), 1201 Mbps (gross) per radio, 1x 10/100/1000 Mbps M12 socket X-encoded ile PoE, redundant 24 V DC, M12 socket L-encoded; IP65, -30...+60 °C, CLP slot, DI/DQ, A-encoded, observe national approvals! CERT ID: MSAX65-W1-M12-E2, FCCID: LYHMSAX65V1, çalışma in the USA scope of besleme: sealing caps için connections
Siemens 6GK5766-1GE00-3DB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
with WLAN / maximum1201 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum / note1
number of electrical/optical connections / for gigabit Ethernet / maximum1
for network components or terminal equipment1
for power supply1
for redundant voltage supply1
for network components or terminal equipmentM12 interface (8-pole, X-coded), PoE
for redundant voltage supplyM12 interface (4-pin, L-coded)
memory
CLPVar
CLP iFeaturesVar
interfaces / wireless
number of radio cards / permanently installed2
transmission mode / for multiple input multiple output (MIMO)2x2
number of spatial streams2
number of electrical connections / for external antenna(s)2
type of electrical connection / for external antenna(s)N-Connect (socket)
product feature / external antenna can be mounted directly on deviceVar
signal inputs/outputs
number of digital inputs1
number of digital outputs1
type of electrical connection / at the digital inputs/outputsM12 interface (4-pin, A-coded)
input voltage / at digital input / at DC-30... +30 V
output voltage / at digital output / at DC / maximum24 V; 0,5 A
operational current / of the signaling contacts / at DC / at 30 V / maximum0,008 A
supply voltage, current consumption, power loss
type of voltage / of the supply voltageRedundant 24 V DC Power Supply, M12, L-coded
from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V
at DC / at 24 V0,55 A
at DC / at 24 V / sleep mode / maximum0,013 A
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical0,27 A
at DC / at 24 V13,2 W
at DC / at 24 V / sleep mode / maximum0,3 W
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical12,96 W
from M12 power Connector (L-coded) for redundant voltage supply24 V
supply voltage / 1 / rated value24 V
type of voltage / 1 / of the supply voltageDC
from M12 power Connector (L-coded) for redundant voltage supply24 V
supply voltage / 2 / rated value24 V
type of voltage / 2 / of the supply voltageDC
supply voltage / 3 / rated value48 V
type of voltage / 3 / of the supply voltageDC, PoE
ambient conditions
during operation-30... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum90 %
protection class IPIP65
design, dimensions and weights
width150 mm
height179,5 mm
depth45 mm
width / of the enclosure / without antenna150 mm
height / of the enclosure / without antenna179,5 mm
depth / of the enclosure / without antenna45 mm
net weight1,1 kg
fastening methodwall mounting ve assembly on VESA support 75 x 75 mm, mounting on DIN rail with separate mounting adapter.
S7-300 rail mountingVar
S7-1500 rail mountingVar
35 mm DIN-rail mountingVar
wall mountingVar
VESA mountingVar; 75 x 75mm
radio frequencies
for WLAN in 2.4 GHz frequency band2,41... 2,48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band4,9... 5,8 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeYok
product function / client ModeVar
number of SSIDs1
iPCF Access PointYok; iPCF-2 is not compatible with iPCF. See documentation for function description.
iPCF-2 access pointYok; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' veya 'SCALANCE CLP 2GB W700 Client iFeatures'
iPCF clientYok
iPCF-2 clientVar; Only in combination with the 'SCALANCE CLP 2GB W700 AP iFeatures' veya 'SCALANCE CLP 2GB W700 Client iFeatures'
iPCF-MC Access PointYok
product function / iPRPVar
product functions / management, configuration, engineering
number of manageable IP addresses / in client2
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
configuration with STEP 7 in the TIA PortalVar
WDSYok
Address Resolution Protocol (ARP)Var
ICMPVar
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
DCPVar
LLDPVar
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisVar
SysLogVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
product functions / VLAN
function VLAN with IWLANVar
number of VLANs / maximum24
product functions / DHCP
DHCP clientVar
product functions / redundancy
STP/RSTPVar
MSTPVar
RSTPVar
redundancy procedure MSTPVar
product functions / security
management security, ACL-IP basedYok
IEEE 802.1x (radius)Var
NAT/NAPTVar
access protection according to IEEE802.11iVar
WPA/WPA2Var
WPA3Var
TKIP/AESVar
RADIUS clientVar
SSHVar
with SSL4096 bit
product functions / time
NTPVar
SNTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals
EC Declaration of ConformityVar
CE markingVar
E1 approvalVar
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afVar
IEEE 802.11aVar
IEEE 802.11bVar
IEEE 802.11eVar
IEEE 802.11gVar
IEEE 802.11hVar
IEEE 802.11iVar
IEEE 802.11nVar
IEEE 802.11acVar
IEEE 802.11axVar
IEEE 802.11rVar
MTBF24 a
reference temperature40 °C
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN IEC 60079-0 : 2018, EN60079-7:2015 + A1 : 2018; II 3 G Ex ec IIC T4 Gc
from CSA and ULUL121201, CAN/CSA C22.2 Yok.213, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC T4, UL File E240480
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total394,89 kg
during manufacturing33,7 kg
during operation361 kg
after end of life0,19 kg
Aksesuarlar 100
Siemens 6GK5766-1GE00-3DB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK5907-4UA00-0AA0 | Aksesuar | |
| 6GK5907-8UA00-0AA0 | Aksesuar | |
| 6GK1900-0UB00-0AA0 | Aksesuar | |
| 6GK5795-4MC00-0AA3 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MD00-0AA3 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MX00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MN10-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MP10-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-4MN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6XV1875-2D | Aksesuar · Antenna · WLAN | |
| 6GK5793-6DG00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DJ00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6DC00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DK00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DL00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DP00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5897-4ME00-0AA0 | Aksesuar · Antenna | |
| 6GK5792-4DN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6XV1875-2A | Aksesuar · Antenna · WLAN | |
| 6GK5792-6MN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5792-8DN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6XV1875-5AH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AN10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5795-1TN00-1AA0 | Aksesuar | |
| 6GK5798-2LP10-2AA6 | Aksesuar | |
| 6GK5798-0CP00-1AA0 | Aksesuar | |
| 6GK5798-2PP00-2AA6 | Aksesuar | |
| 6GK5798-8MF00-0AA1 | Aksesuar | |
| 6GK5798-8MA00-0AA1 | Aksesuar | |
| 6XV1801-6DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-6DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-6GH30 | Aksesuar · Cables · power cables | |
| 6XV1878-5GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-0DB50-6AA0 | Aksesuar | |
| 6GK1901-0DB50-6AA8 | Aksesuar | |
| 6GK1901-0DE10-6AA0 | Aksesuar | |
| 6GK1901-0DE20-6AA0 | Aksesuar | |
| 6GK1901-0DM40-2AA5 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6GK1906-0EA00 | Aksesuar | |
| 6GK1906-0EB00 | Aksesuar | |
| 6XV1801-2B | Aksesuar · Cables · power cables | |
| 6XV1801-6GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-6GN15 | Aksesuar · Cables · power cables | |
| 6XV1878-5HN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN80 | Aksesuar · Cables · network cable electrical | |
| 6ES7193-6DL00-2AA0 | Aksesuar · Accessories | |
| 6GK1900-0HL00-0AA0 | Aksesuar | |
| 6GK1900-0KL00-0AA0 | Aksesuar | |
| 6GK1900-0MB00-0AC0 | Aksesuar | |
| 6GK1900-0MB00-6AA0 | Aksesuar | |
| 6GK1900-0ML00-0AA0 | Aksesuar | |
| 6GK1900-0MN00-0AA0 | Aksesuar | |
| 6GK1900-0NB00-0AC0 | Aksesuar | |
| 6GK1900-0NB00-6AA0 | Aksesuar | |
| 6GK1900-0NL00-0AA0 | Aksesuar | |
| 6GK1900-0RL00-0AA0 | Aksesuar | |
| 6GK1900-0UQ00-0AA0 | Aksesuar | |
| 6GK1900-1GB00-0AC0 | Aksesuar | |
| 6GK1900-1GL00-0AA0 | Aksesuar | |
| 6GK1900-1GP00-0AB0 | Aksesuar |
İlgili Ürünler
Detayları Gör
Siemens
6GK1411-5AB10
MFR #6GK1411-5AB10
SKU #YLSWCVVF4PMPV5M
Detayları Gör
Siemens
6GK1411-5AC00
MFR #6GK1411-5AC00
SKU #YLSX1BWVS5DB97H
Detayları Gör
Siemens
6GK1411-5BB00
MFR #6GK1411-5BB00
SKU #YLS8ZXA1XMOM1Z2
Detayları Gör
Siemens
6GK1562-3AA01
MFR #6GK1562-3AA01
SKU #YLSUPE0SE2ALSG
Detayları Gör
Siemens
6GK1571-1AA00-0AD0
MFR #6GK1571-1AA00-0AD0
SKU #YLSNEGUF7BUFUDI
Detayları Gör
Siemens
6GK1700-0AA16-0AA0
MFR #6GK1700-0AA16-0AA0
SKU #YLSSJRML6XO3MG
Detayları Gör
Siemens
6GK1700-0AA17-0AA0
MFR #6GK1700-0AA17-0AA0
SKU #YLSYL6QBEDHUOAQ
Detayları Gör
Siemens
6GK1700-0AA18-0AA0
MFR #6GK1700-0AA18-0AA0
SKU #YLSMHAXXPQWTSZT
Detayları Gör
Siemens
6GK1700-0AA23-0AA0
MFR #6GK1700-0AA23-0AA0
SKU #YLSEYSK9HEFTQ3
Öne Çıkan Ürünler
Detayları Gör
SMC
MXQ25-40B-M9NZ
MFR #MXQ25-40B-M9NZ
SKU #YLST5TX9LNATRNS
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
İlgili Aramalar
Siemens 6GK5766-1GE00-3DB0 fiyatSiemens 6GK5766-1GE00-3DB0 teklif alSiemens 6GK5766-1GE00-3DB0 satın al6GK5766-1GE00-3DB0 fiyat6GK5766-1GE00-3DB0 stok durumuSiemens yedek parçaSiemens 6GK5766-1GE00-3DB0 muadilSiemens 6GK5766-1GE00-3DB0 teknik özellikler
