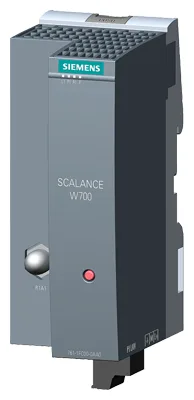

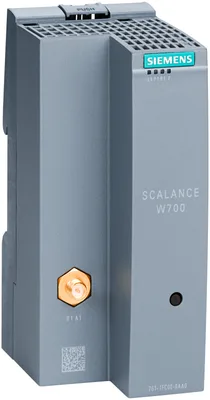

Siemens 6GK5761-1FC00-0AA0
Please observe national approvals: www.siemens.com/wireless-approvals W761-1 RJ45, 1 radio, 1 R-SMA antenna port, IEEE 802.11a/b/g/h/n, 2,4/5 GHz, gross data rate 150 Mbps, 1x RJ45 max. 100 Mbps, 24 V DC, joint block, IP20, 0... +55 °C, WPA2/802.11i/e, observe national approvals! CERT ID: ELN-W1-RJ-E1, scope of besleme: manuals on CD-ROM German/English, 1x joint block; için çalışma outside of USA/Israel..
product brand nameSCALANCE
with WLAN / maximum150 Mbit/s
for Industrial Ethernet10, 100 Mbit/s
for power supply1
for redundant voltage supply0
for power supply3-pole screw terminal
Ürün Hakkında
Please observe national approvals: www.siemens.com/wireless-approvals W761-1 RJ45, 1 radio, 1 R-SMA antenna port, IEEE 802.11a/b/g/h/n, 2,4/5 GHz, gross data rate 150 Mbps, 1x RJ45 max. 100 Mbps, 24 V DC, joint block, IP20, 0... +55 °C, WPA2/802.11i/e, observe national approvals! CERT ID: ELN-W1-RJ-E1, scope of besleme: manuals on CD-ROM German/English, 1x joint block; için çalışma outside of USA/Israel..
Siemens 6GK5761-1FC00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
with WLAN / maximum150 Mbit/s
for Industrial Ethernet10, 100 Mbit/s
interfaces
for network components or terminal equipment1
for power supply1
for redundant voltage supply0
for network components or terminal equipmentRJ45 socket
for power supply3-pole screw terminal
memory
C-PLUGYok
KEY-PLUGYok
interfaces / wireless
number of radio cards / permanently installed1
number of electrical connections / for external antenna(s)1
type of electrical connection / for external antenna(s)R-SMA (socket)
product feature / external antenna can be mounted directly on deviceVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
at DC / at 24 V / typical0,15 A
at DC / at 24 V / typical3,6 W
from terminal block19,2 V
from terminal block28,8 V
ambient conditions
during operation0... 55 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
ambient condition / for operationWhen used under hazardous conditions (Zone 2), the SCALANCE W761-1 RJ45 veya W72x-1 RJ45 product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of least IP 54 in compliance with EN 60529.
protection class IPIP20

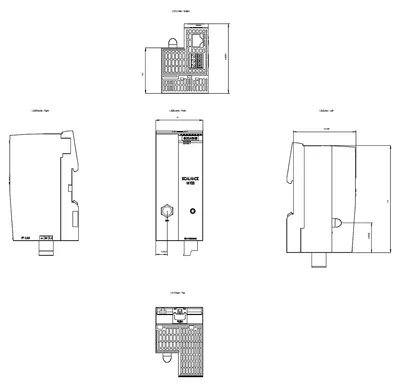

design, dimensions and weights
width50 mm
height114 mm
depth74 mm
width / of the enclosure / without antenna50 mm
height / of the enclosure / without antenna114 mm
depth / of the enclosure / without antenna74 mm
net weight0,13 kg
S7-300 rail mountingYok
S7-1500 rail mountingYok
35 mm DIN-rail mountingVar
wall mountingYok
radio frequencies
for WLAN in 2.4 GHz frequency band2,41... 2,48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band4,9... 5,8 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeVar
product function / client ModeVar
number of SSIDs1
iPCF Access PointYok
iPCF clientYok
iPCF-MC Access PointYok
iPCF-MC clientYok
product function / iREFYok
product function / iPRPYok
product functions / management, configuration, engineering
number of manageable IP addresses / in client4
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
configuration with STEP 7 in the TIA PortalVar
operation with IWLAN controllerYok
operation with Enterasys WLAN controllerYok
forced roaming on IP down with IWLANVar
forced roaming on link down with IWLANVar
WDSVar
Address Resolution Protocol (ARP)Var
ICMPVar
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
DCPVar
LLDPVar
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisYok
link checkYok
connection monitoring IP-AliveYok
localization via AeroscoutYok
SysLogVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
product functions / VLAN
function VLAN with IWLANVar
product functions / DHCP
DHCP clientVar
DHCP serverVar
DHCP Option 82Var
product functions / redundancy
STP/RSTPVar
MSTPVar
RSTPVar
product functions / security
ACL - MAC-basedVar
management security, ACL-IP basedVar
IEEE 802.1x (radius)Var
NAT/NAPTVar
access protection according to IEEE802.11iVar
WPA/WPA2Var
TKIP/AESVar
SSHVar
RADIUSVar
product functions / time
NTPVar
SNTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals
for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 Yok. 60950-1
EC Declaration of ConformityVar
CE markingVar
C-TickVar
E1 approvalYok
railway application in accordance with EN 50155Yok
railway application in accordance with EN 50121-4Yok
NEMA TS2Yok
IEC 61375Yok
IEC 61850-3Yok
NEMA4XYok
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afYok
Power-over-Ethernet according to IEEE802.3at for type 2Yok
IEEE 802.11aVar
IEEE 802.11bVar
IEEE 802.11eVar
IEEE 802.11gVar
IEEE 802.11hVar
IEEE 802.11iVar
IEEE 802.11nVar
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
DNV GLYok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Royal Institution of Naval Architects (RINA)Yok
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
from CSA and ULANSI/ISA 12.12.01-2013, CAN/CSA C22.2 Yok.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480
certificate of suitability / CCC / for hazardous zone according to GB standardVar; GB3836.1, GB3836.8
as markingEx nA IIC T4 Gc
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total125,8 kg
during manufacturing12,97 kg
during operation112,66 kg
after end of life0,17 kg
accessories
accessories24 V DC screw terminal included in scope of delivery
Aksesuarlar 88
Siemens 6GK5761-1FC00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0AB10 | Aksesuar | |
| 6GK1901-0DB50-6AA0 | Aksesuar | |
| 6GK1907-0DC00-6AA5 | Aksesuar | |
| 6GK1907-0DB10-6AA3 | Aksesuar | |
| 6GK1907-0DC10-6AA3 | Aksesuar | |
| 6GK1908-0DC10-6AA3 | Aksesuar | |
| 6GK5792-4DN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5792-6MN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5792-8DN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5793-4MN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5793-6DG00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DJ00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DK00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DL00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DP00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MC00-0AA3 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MD00-0AA3 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MX00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6DC00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MN10-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MP00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MT00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6XV1801-5AH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN15 | Aksesuar · Cables · power cables | |
| 6XV1875-5AH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AN10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5JH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5VH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5907-4PA00 | Aksesuar | |
| 6XV1878-5GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1878-2A | Aksesuar · Cables · network cable electrical | |
| 6GK1901-0DB40-6AA0 | Aksesuar | |
| 6GK1901-0DB50-6AA8 | Aksesuar | |
| 6GK1901-0DE10-6AA0 | Aksesuar | |
| 6GK1901-0DE20-6AA0 | Aksesuar | |
| 6GK1901-0DM40-2AA5 | Aksesuar | |
| 6XV1878-5HN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN80 | Aksesuar · Cables · network cable electrical |
İlgili Ürünler
Detayları Gör
Siemens
6GK1411-5AB10
MFR #6GK1411-5AB10
SKU #YLSWCVVF4PMPV5M
Detayları Gör
Siemens
6GK1411-5AC00
MFR #6GK1411-5AC00
SKU #YLSX1BWVS5DB97H
Detayları Gör
Siemens
6GK1411-5BB00
MFR #6GK1411-5BB00
SKU #YLS8ZXA1XMOM1Z2
Detayları Gör
Siemens
6GK1562-3AA01
MFR #6GK1562-3AA01
SKU #YLSUPE0SE2ALSG
Detayları Gör
Siemens
6GK1571-1AA00-0AD0
MFR #6GK1571-1AA00-0AD0
SKU #YLSNEGUF7BUFUDI
Detayları Gör
Siemens
6GK1700-0AA16-0AA0
MFR #6GK1700-0AA16-0AA0
SKU #YLSSJRML6XO3MG
Detayları Gör
Siemens
6GK1700-0AA17-0AA0
MFR #6GK1700-0AA17-0AA0
SKU #YLSYL6QBEDHUOAQ
Detayları Gör
Siemens
6GK1700-0AA18-0AA0
MFR #6GK1700-0AA18-0AA0
SKU #YLSMHAXXPQWTSZT
Detayları Gör
Siemens
6GK1700-0AA23-0AA0
MFR #6GK1700-0AA23-0AA0
SKU #YLSEYSK9HEFTQ3
Öne Çıkan Ürünler
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
NCMC150-0600-X103US
MFR #NCMC150-0600-X103US
SKU #YLS468HQT0B65QG
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
İlgili Aramalar
Siemens 6GK5761-1FC00-0AA0 fiyatSiemens 6GK5761-1FC00-0AA0 teklif alSiemens 6GK5761-1FC00-0AA0 satın al6GK5761-1FC00-0AA0 fiyat6GK5761-1FC00-0AA0 stok durumuSiemens yedek parçaSiemens 6GK5761-1FC00-0AA0 muadilSiemens 6GK5761-1FC00-0AA0 teknik özellikler
