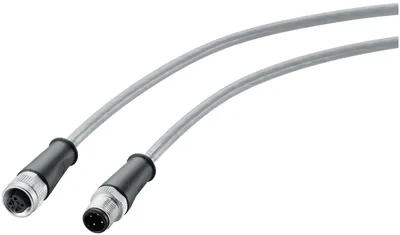

Siemens 6XV1801-5AH30
Robust güç Connecting kablo M12-180/M12-180, IP69, için güç kaynağı of the ET 200, pre-assembled kablo ile M12 plug ve M12 socket, A-coded, 4-pole, 3,0 m.
product brand nameSIMATIC NET
cable designationLI9YY6Y 4X1X0.75 GY
wire length3 m
insulation resistance coefficient20 GΩ·m
operating voltage / RMS value300 V
number of electrical cores4
Ürün Hakkında
Robust güç Connecting kablo M12-180/M12-180, IP69, için güç kaynağı of the ET 200, pre-assembled kablo ile M12 plug ve M12 socket, A-coded, 4-pole, 3,0 m.
Siemens 6XV1801-5AH30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor connecting Industrial Ethernet stations with degree of protection IP65/67/69. Cable with FEP jacket (fluorinated plastic, perfluoroethylene propylene) for use in the food, beverage ve tobacco industry (IP69 resistant). Cable is water-repellent, weather-proof, resistant to microbes, ve extremely resistant to many cleaning agents ve disinfectants (such as hypochlorite, chlorine dioxide, peroxyacetic acid, ve quaternary ammonium cations).
cable designationLI9YY6Y 4X1X0.75 GY
wire length3 m
electrical data
insulation resistance coefficient20 GΩ·m
operating voltage / RMS value300 V
conductor cross section / of the power line0,75 mm²
continuous current / of the power lines6,5 A; 40°C according to DIN VDE 0891-1 (8 A 20°C according to DIN VDE 0891-1)
mechanical data
number of electrical cores4
of inner conductor1,15 mm
of the wire insulation1,7 mm
of cable sheath5,7 mm
symmetrical tolerance of the outer diameter / of cable sheath0,2 mm
conductor class5
of the conductorCU, blank
of the wire insulationPP
of cable sheathPVC/FEP; FEP transparent
product component / PE connectionYok
marking / of coresColor
of the power line insulationbrown / blue, white / black
of cable sheathgray
with single bend / minimum permissible23 mm
with multiple bends / minimum permissible46 mm
with continuous bending100 mm
number of bending cycles1000000; acceleration 4 m/s²
number of torsion cycles / with torsion by ± 180° on 1 m cable length1000000
tensile load / maximum150 N
weight per length53 kg/km
ambient conditions
during operation-40... +90 °C
during storage-40... +90 °C
during transport-40... +90 °C
during installation-40... +90 °C
fire behaviorFlame-resistant acc. to IEC 60332-1-2
to mineral oiloil resistant according to DIN EN 60811-404 (7x24h/90°C)
to greaseresistant
to waterresistant
radiological resistance / to UV radiationresistant according to UL 2556 Sec. 4.2.8.5
protection class IPIP69
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
certificate of suitabilityUL: E337822 PROCESSED WIRE COMPONENT
EAC approvalVar
RoHS conformityVar
