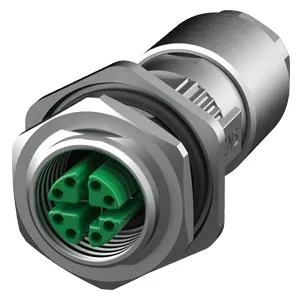

Siemens 6GK1901-0DB40-6AA0
IE FC M12 kablo konnektör PRO 4x 2 M12 plug-in connectors that can be assembled in the field (X-coded) 8-pole; metal muhafaza; FC quick-connect technology; female kontak insert; 1 pack = 1 ünite.
product brand nameSIMATIC NET
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
transfer rate / for Industrial Ethernet10000 Mbit/s
for Industrial Ethernet FC TP cables8
material / of the enclosuremetal
locking mechanism designScrewed joint
Ürün Hakkında
IE FC M12 kablo konnektör PRO 4x 2 M12 plug-in connectors that can be assembled in the field (X-coded) 8-pole; metal muhafaza; FC quick-connect technology; female kontak insert; 1 pack = 1 ünite.
Siemens 6GK1901-0DB40-6AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor connecting electrical cables to SCALANCE W (M12 gigabit interface) for fast assembly with the FastConnect system
transfer rate
transfer rate / for Industrial Ethernet10, 100, 1000 Mbit/s
transfer rate / for Industrial Ethernet10000 Mbit/s
interfaces
for Industrial Ethernet FC TP cables8
for network components or terminal equipment1
for Industrial Ethernet FC TP cablesdahili insulation-displacement contacts for 8-wire TP FC installation cables AWG24/AWG26
for network components or terminal equipmentM12 plug (X-coded, female)
type of electrical connection / FastConnectVar
mechanical data
material / of the enclosuremetal
locking mechanism designScrewed joint
tightening torque / for M12 round connector / maximum0,6 N·m
connector coding / of the M12 circular connectorX
design, dimensions and weights
type of cable outlet180° cable outlet
width16,8 mm
height16,8 mm
depth49 mm
net weight40 g
connectable cable diameter6,5... 8 mm
connectable conductor cross-section0,21... 0,33 mm²
ambient conditions
during operation-40... +85 °C
during storage-40... +85 °C
during transport-40... +85 °C
to waterresistant
protection class IPIP65/67
product features, product functions, product components / general
PoE capabilityVar
PoE+ capabilityVar
silicon-freeVar
strain reliefVar
standards, specifications, approvals
RoHS conformityVar
UL onayıVar
cULus approvalVar
railway application in accordance with EN 50155Var
fire protection in accordance with EN 45545-2Var
standard for structured cablingCat6A
