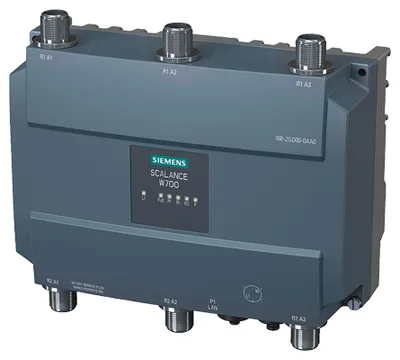

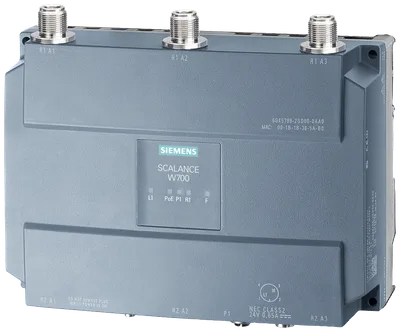

Siemens 6GK5748-1GD00-0AA0
Please observe national approvals: www.siemens.com/wireless-approvals discontinuation; IWLAN client, SCALANCE W748-1 M12, 1 radio, 3 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2,4/5 GHz, gross 450 Mbps per radio, 1x M12 max. 1 Gbps, PoE, redundant 24 V DC,M12 A-coded IP65, -20..+60 °C, plug slot, WPA2/802.11i/e, sinyalizasyon kontak observe national approvals! CERT ID: RAPN-W1-M12-E3, includes: MPCIE-R1-ABGN-U3, scope of besleme: manuals on CD-ROM, German/English, M12 sealing caps, için çalışma outside of USA/Israel
product brand nameSCALANCE
with WLAN / maximum450 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
for power supply1
for redundant voltage supply1
for power supplyM12 interface (4-pole, A-coded)
Ürün Hakkında
Please observe national approvals: www.siemens.com/wireless-approvals discontinuation; IWLAN client, SCALANCE W748-1 M12, 1 radio, 3 N-CON antenna port, iFeatures support via KEY-PLUG, IEEE 802.11a/b/g/h/n, 2,4/5 GHz, gross 450 Mbps per radio, 1x M12 max. 1 Gbps, PoE, redundant 24 V DC,M12 A-coded IP65, -20..+60 °C, plug slot, WPA2/802.11i/e, sinyalizasyon kontak observe national approvals! CERT ID: RAPN-W1-M12-E3, includes: MPCIE-R1-ABGN-U3, scope of besleme: manuals on CD-ROM, German/English, M12 sealing caps, için çalışma outside of USA/Israel
Siemens 6GK5748-1GD00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
transfer rate
with WLAN / maximum450 Mbit/s
for Industrial Ethernet10, 100, 1000 Mbit/s
interfaces
for network components or terminal equipment1
for power supply1
for redundant voltage supply1
for network components or terminal equipmentM12 interface (8-pole, X-coded), PoE
for power supplyM12 interface (4-pole, A-coded)
memory
C-PLUGVar
KEY-PLUGVar
interfaces / wireless
number of radio cards / permanently installed1
transmission mode / for multiple input multiple output (MIMO)3x3
number of spatial streams3
number of electrical connections / for external antenna(s)3
type of electrical connection / for external antenna(s)N-Connect (socket)
product feature / external antenna can be mounted directly on deviceVar
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af48 V
from Power-over-Ethernet according to IEEE802.3at for type 250 V
at DC / at 24 V / typical0,45 A
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical0,22 A
with Power-over-Ethernet according to IEEE802.3at for type 2 / typical0,21 A
at DC / at 24 V / typical10,7 W
with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical10,7 W
with Power-over-Ethernet according to IEEE802.3at for type 2 / typical10,7 W
from M12 Power Connector (A-coded) for redundant power supply19,2 V
from M12 Power Connector (A-coded) for redundant power supply28,8 V
ambient conditions
during operation-20... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum100 %
ambient condition / for operationWhen used under hazardous conditions (Zone 2), the SCALANCE W788-x veya W748-x product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of least IP 54 in compliance with EN 60529.
protection class IPIP65

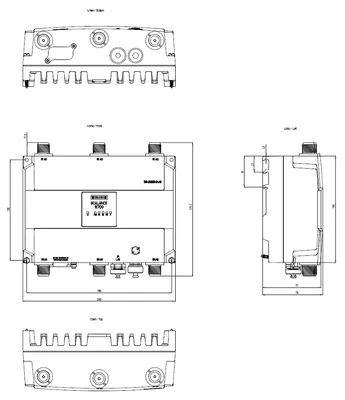

design, dimensions and weights
width / of the enclosure / without antenna200 mm
height / of the enclosure / without antenna176 mm
depth / of the enclosure / without antenna79 mm
net weight1,7 kg
fastening methodFor 35 mm DIN rail mounting an additional mounting adapter is required
S7-300 rail mountingVar
S7-1500 rail mountingVar
35 mm DIN-rail mountingVar
wall mountingVar
radio frequencies
for WLAN in 2.4 GHz frequency band2,41... 2,48 GHz; depending on the country approvals
for WLAN in 5 GHz frequency band4,9... 5,8 GHz; depending on the country approvals
product features, product functions, product components / general
product function / Access Point ModeYok
product function / client ModeVar
iPCF clientVar; Only in combination with the 'KEY-PLUG W780 iFeatures' veya 'KEY-PLUG W740 iFeatures'
iPCF-MC clientYok; Only in combination with 'KEY-PLUG W780 iFeatures' veya 'KEY-PLUG W740 iFeatures'
number of iPCF-capable radio modules1
product function / iPRPVar; In combination with the 'KEY-PLUG W780 iFeatures' veya 'KEY-PLUG W740 iFeatures' only
product functions / management, configuration, engineering
number of manageable IP addresses / in client8
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
configuration with STEP 7 in the TIA PortalVar
WDSYok
Address Resolution Protocol (ARP)Var
ICMPVar
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
DCPVar
LLDPVar
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
product functions / diagnostics
PROFINET IO diagnosisVar
link checkYok
connection monitoring IP-AliveYok
SysLogVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
product functions / VLAN
function VLAN with IWLANYok
product functions / DHCP
DHCP clientVar
DHCP serverVar
DHCP Option 82Var
product functions / redundancy
STP/RSTPVar
MSTPVar
RSTPVar
product functions / security
ACL - MAC-basedVar
management security, ACL-IP basedVar
IEEE 802.1x (radius)Var
NAT/NAPTVar
access protection according to IEEE802.11iVar
WPA/WPA2Var
TKIP/AESVar
SSHVar
RADIUSVar
product functions / time
NTPVar
SNTPVar
SIMATIC time synchronization (SIMATIC Time)Var
standards, specifications, approvals
for FMFM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X
for safety / from CSA and ULUL 60950-1 E115352, CSA C22.2 Yok. 60950-1
EC Declaration of ConformityVar
CE markingVar
C-TickVar
E1 approvalVar
railway application in accordance with EN 50155Yok
railway application in accordance with EN 50121-4Yok
NEMA TS2Yok
IEC 61375Yok
IEC 61850-3Yok
NEMA4XYok
Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3afVar
Power-over-Ethernet according to IEEE802.3at for type 2Var
IEEE 802.11aVar
IEEE 802.11bVar
IEEE 802.11eVar
IEEE 802.11gVar
IEEE 802.11hVar
IEEE 802.11iVar
IEEE 802.11nVar
standards, specifications, approvals / marine classification
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Var
DNV GLVar
Korean Register of Shipping (KRS)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (NK)Var
Polski Rejestr Statkow (PRS)Var
Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / hazardous environments
standard / for hazardous zoneEN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
from CSA and ULANSI/ISA 12.12.01-2013, CAN/CSA C22.2 Yok.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480
certificate of suitability / CCC / for hazardous zone according to GB standardVar; GB3836.1, GB3836.8
as markingEx nA IIC T4 Gc
Aksesuarlar 88
Siemens 6GK5748-1GD00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0AB10 | Aksesuar | |
| 6GK1901-0DB50-6AA0 | Aksesuar | |
| 6GK1907-0DC00-6AA5 | Aksesuar | |
| 6GK1907-0DB10-6AA3 | Aksesuar | |
| 6GK1907-0DC10-6AA3 | Aksesuar | |
| 6GK1908-0DC10-6AA3 | Aksesuar | |
| 6GK5792-4DN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5792-6MN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5792-8DN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5793-4MN00-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5793-6DG00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DJ00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DK00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DL00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5793-8DP00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MC00-0AA3 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MD00-0AA3 | Aksesuar · Antenna · WLAN | |
| 6GK5795-4MX00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6DC00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MN10-0AA6 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MP00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6GK5795-6MT00-0AA0 | Aksesuar · Antenna · WLAN | |
| 6XV1801-5AH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5AH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5DH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5DN15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GE50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH15 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH20 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH30 | Aksesuar · Cables · power cables | |
| 6XV1801-5GH50 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN10 | Aksesuar · Cables · power cables | |
| 6XV1801-5GN15 | Aksesuar · Cables · power cables | |
| 6XV1875-5AH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AH20 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AH50 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5AN10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5JH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6XV1875-5VH10 | Aksesuar · Cables · cable for WLAN antennas | |
| 6GK5907-4PA00 | Aksesuar | |
| 6XV1878-5GE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5GN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TH50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5TN50 | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1GA00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1878-2A | Aksesuar · Cables · network cable electrical | |
| 6GK1901-0DB40-6AA0 | Aksesuar | |
| 6GK1901-0DB50-6AA8 | Aksesuar | |
| 6GK1901-0DE10-6AA0 | Aksesuar | |
| 6GK1901-0DE20-6AA0 | Aksesuar | |
| 6GK1901-0DM40-2AA5 | Aksesuar | |
| 6XV1878-5HN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN50 | Aksesuar · Cables · network cable electrical | |
| 6XV1878-5HN80 | Aksesuar · Cables · network cable electrical |
İlgili Ürünler
Detayları Gör
Siemens
6GK1411-5AB10
MFR #6GK1411-5AB10
SKU #YLSWCVVF4PMPV5M
Detayları Gör
Siemens
6GK1411-5AC00
MFR #6GK1411-5AC00
SKU #YLSX1BWVS5DB97H
Detayları Gör
Siemens
6GK1411-5BB00
MFR #6GK1411-5BB00
SKU #YLS8ZXA1XMOM1Z2
Detayları Gör
Siemens
6GK1562-3AA01
MFR #6GK1562-3AA01
SKU #YLSUPE0SE2ALSG
Detayları Gör
Siemens
6GK1571-1AA00-0AD0
MFR #6GK1571-1AA00-0AD0
SKU #YLSNEGUF7BUFUDI
Detayları Gör
Siemens
6GK1700-0AA16-0AA0
MFR #6GK1700-0AA16-0AA0
SKU #YLSSJRML6XO3MG
Detayları Gör
Siemens
6GK1700-0AA17-0AA0
MFR #6GK1700-0AA17-0AA0
SKU #YLSYL6QBEDHUOAQ
Detayları Gör
Siemens
6GK1700-0AA18-0AA0
MFR #6GK1700-0AA18-0AA0
SKU #YLSMHAXXPQWTSZT
Detayları Gör
Siemens
6GK1700-0AA23-0AA0
MFR #6GK1700-0AA23-0AA0
SKU #YLSEYSK9HEFTQ3
Öne Çıkan Ürünler
Detayları Gör
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
SMC
VQ1200-51-Q
MFR #VQ1200-51-Q
SKU #YLSOVA6N31QD04G
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
Detayları Gör
Baldor
VM8001-5
MFR #VM8001-5
SKU #YLS3TOWVXWW0DHP
İlgili Aramalar
Siemens 6GK5748-1GD00-0AA0 fiyatSiemens 6GK5748-1GD00-0AA0 teklif alSiemens 6GK5748-1GD00-0AA0 satın al6GK5748-1GD00-0AA0 fiyat6GK5748-1GD00-0AA0 stok durumuSiemens yedek parçaSiemens 6GK5748-1GD00-0AA0 muadilSiemens 6GK5748-1GD00-0AA0 teknik özellikler
