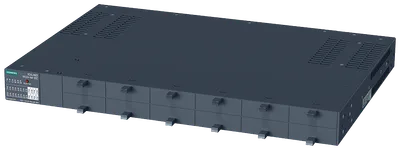

Siemens 6GK5324-4GG10-1ER2
SCALANCE XR324-4M EEC; Managed IE anahtar, 19" rack; 16x 10/100/1000 Mbit/s için RJ45 ports electrical; 4x 100/1000 Mbit/s için 2-port media modülleri, electrical veya optical; LED diagnostics; error sinyalizasyon kontak; Select/set pushbutton, PROFINET IO cihaz, network management, dahili redundancy yönetici; güç kaynağı 1x 24 V DC; Ports in the ön.
product brand nameSCALANCE
product type designationXR324-4M EEC
transfer rate10, 100, 1000 Mbit/s
for multimode8
for multimode8
for operator console1
Ürün Hakkında
SCALANCE XR324-4M EEC; Managed IE anahtar, 19" rack; 16x 10/100/1000 Mbit/s için RJ45 ports electrical; 4x 100/1000 Mbit/s için 2-port media modülleri, electrical veya optical; LED diagnostics; error sinyalizasyon kontak; Select/set pushbutton, PROFINET IO cihaz, network management, dahili redundancy yönetici; güç kaynağı 1x 24 V DC; Ports in the ön.
Siemens 6GK5324-4GG10-1ER2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXR324-4M EEC
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment16; RJ45
for multimode8
for multimode8
interfaces / other
for operator console1
for signaling contact1
for media module4
for power supply1
for operator consoleRJ11
for signaling contact2-pole terminal block
for power supply4-pole terminal block
C-PLUGVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
type of voltage supply / redundant power supply unitYok
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value40 W
supply voltage / 1 / voltage range19,2... 57,6
consumed current / 1 / maximum1,6 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageT2H / 250 V
ambient conditions
during operation-40... +70 °C
during storage-40... +85 °C
during transport-40... +85 °C
noteExtended temperature upper limit of +85° C permitted for 16 hours. Reduced operating temperature through the use of media modules (-40 °C to +70 °C) veya SFP plug-in transceivers (-40 °C to +60 °C)
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20
design, dimensions and weights
design19-inch rack
number of modular height units / relating to 19-inch cabinet1
width483 mm
height44 mm
depth305 mm
net weight6,5 kg
fastening methodWhen used in shipbuilding, the device must be secured in the 19" rack four points
19-inch installationVar
35 mm DIN-rail mountingYok
wall mountingYok
S7-300 rail mountingYok
S7-1500 rail mountingYok
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s100
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
port mirroringVar
multiport mirroringVar
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPVar
BOOTPVar
GMRPVar
DCPVar
LLDPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
VLAN dynamicVar
number of VLANs / maximum255
number of VLANs - dynamic / maximum255
product functions / DHCP
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure MSTPVar
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
passive listeningVar
STP/RSTPVar
STPVar
RSTPVar
MSTPVar
RSTP big network supportVar
LACPVar
product functions / security
IEEE 802.1x (radius)Var
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
product functions / time
SICLOCK supportVar
NTPVar
SNTPVar
IEEE 1588 profile defaultVar
standards, specifications, approvals
CE markingVar
UKCA markingVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMCIEC 61850, IEEE 1613
for EMC interference emissionEN 61000-6-4:2007 (Class A)
for immunity to EMCEN 61000-6-2:2005
for safety / from CSA and ULUL 60950-1, CSA C22.2 Yok. 60950-1-03
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
IEC 61850-3Var
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total1235,23 kg
during manufacturing132 kg
during operation1102,64 kg
after end of life0,59 kg
product functions / general
MTBF15 a
warranty period5 a
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing132 kg
global warming potential [CO2 eq] / during operation1102,64 kg
global warming potential [CO2 eq] / after end of life0,59 kg
global warming potential [CO2 eq] / total1235,23 kg
