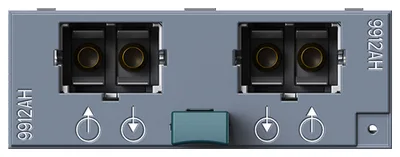

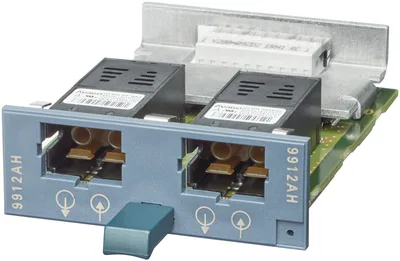

Siemens 6GK5991-2AH00-8AA0
SCALANCE X aksesuar; Media modül MM991-2P; 2x 100 Mbit/s; SC RJ POF/ PCF ports; optical; POF en çok max. 50 m, PCF en çok max. 100 m.
product brand nameSCALANCE
number of 100 Mbit/s SC-RJ-ports2
wavelength / of the optical interface650 nm; POF/PCF
of the transmitter output / minimum-8 dB
of the transmitter output / maximum-2 dB
of the receiver input / maximum1 dB
Ürün Hakkında
SCALANCE X aksesuar; Media modül MM991-2P; 2x 100 Mbit/s; SC RJ POF/ PCF ports; optical; POF en çok max. 50 m, PCF en çok max. 100 m.
Siemens 6GK5991-2AH00-8AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSCALANCE
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum2
number of optical interfaces / for network components or terminal equipment / maximum2
number of 100 Mbit/s SC ports / for multimode / integrated0
number of 100 Mbit/s SC-RJ-ports2
design of the optical interface / for network components or terminal equipmentSC RJ
wavelength / of the optical interface650 nm; POF/PCF
of the transmitter output / minimum-8 dB
of the transmitter output / maximum-2 dB
of the receiver input / maximum1 dB
optical sensitivity relating to 1 mW / of the receiver input / minimum23 dB
attenuation factor / of the FOC transmission link / minimum necessary0 dB
range / at the optical interface / depending on the optical fiber used0,001... 0,1 km
ambient conditions
during operation-25... +40 °C
during storage-40... +85 °C
during transport-40... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

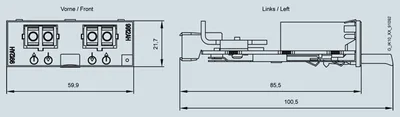

design, dimensions and weights
designMedia module
width60 mm
height22 mm
depth100 mm
net weight0,08 kg
fastening methodlatched
installation in media module slotVar
standards, specifications, approvals
for FMFM3611: Class 1, Divison 2, Group A, B, C, D / T4, Class 1, Zone 2, Group IIC, T4
for hazardous zoneEN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA II T4, KEMA 07 ATEX 0145 X
for safety / from CSA and ULUL 60950-1, CSA C22.2 Yok. 60950-1
for hazardous zone / from CSA and ULUL 1604 ve UL 2279-15 (Hazardous Location), CSA C22.2 Yok. 213-M1987, Class 1 / Division 2 / Group A, B, C, D / T4, Class 1 / Zone 2 / Group IIC / T4
for emitted interferenceEN 61000-6-4:2007 (Class A)
for interference immunityEN 61000-6-2:2005
certificate of suitabilityEN 61000-6-2:2005, EN 61000-6-4:2007
CE markingVar
C-TickVar
KC onayıVar
CCC / for hazardous zone according to GB standardVar; GB3836.1, GB3836.8
CCC / for hazardous zone according to GB standard / as markingEx nA IIC T4 Gc
French marine classification society (BV)Var
MTBF230 a
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total102,1 kg
during manufacturing10,1 kg
during operation91,9 kg
after end of life0,1 kg
