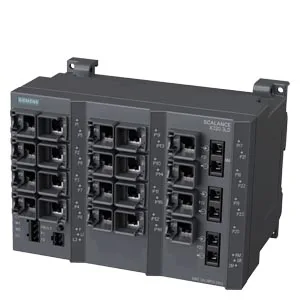

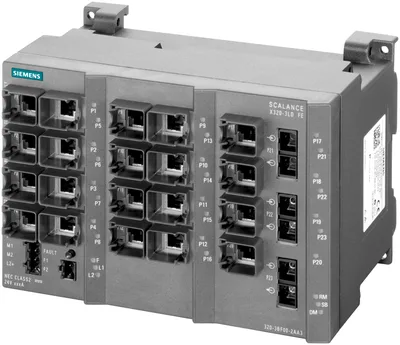

Siemens 6GK5320-3BF00-2AA3
The XC/XCM-300 portfolio is mevcut as halefi anahtar, 20x 10/100 Mbit/s RJ45 ports, 1x 100 Mbit/s SC Port MM 2x 100 Mbit/s SC Port SM LED diagnostics, error sinyalizasyon kontak ile select/set pushbutton, PROFINET IO cihaz, network management, dahili redundancy yönetici, office features (RSTP, VLAN, IGMP,..) C-PLUG in scope of besleme.
product brand nameSCALANCE
product type designationX320-3LD FE
transfer rate10, 100 Mbit/s
with securing collar20
for multimode1
for single mode (LD)2
Ürün Hakkında
The XC/XCM-300 portfolio is mevcut as halefi anahtar, 20x 10/100 Mbit/s RJ45 ports, 1x 100 Mbit/s SC Port MM 2x 100 Mbit/s SC Port SM LED diagnostics, error sinyalizasyon kontak ile select/set pushbutton, PROFINET IO cihaz, network management, dahili redundancy yönetici, office features (RSTP, VLAN, IGMP,..) C-PLUG in scope of besleme.
Siemens 6GK5320-3BF00-2AA3
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationX320-3LD FE
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment20
with securing collar20
for multimode1
for single mode (LD)2
transmission method / of the optical interface100BaseFX/100BaseLX LD
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply4-pole terminal block
C-PLUGVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage supply / redundant power supply unitYok
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value12 W
supply voltage / 1 / voltage range18... 32
consumed current / 1 / maximum0,5 A
type of electrical connection / 1 / for power supply4-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltageF 3 A / 32 V
ambient conditions
during operation-40... +60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP30
design, dimensions and weights
designcompact
width180 mm
height125 mm
depth123 mm
net weight1,65 kg
fastening methodWhen used in shipbuilding, installation on a 35 mm standard mounting rail is not permitted.
19-inch installationYok
35 mm top hat DIN rail mountingVar
wall mountingVar
S7-300 rail mountingVar
S7-1500 rail mountingYok
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s100
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
RMONVar
port mirroringVar
multiport mirroringVar
CoSVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classB
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPVar
BOOTPVar
GMRPVar
DCPVar
LLDPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
IGMP (snooping/querier)Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
SysLogVar
product functions / VLAN
VLAN - port basedVar
VLAN - protocol-basedYok
VLAN - IP-basedYok
VLAN dynamicVar
number of VLANs / maximum255
number of VLANs - dynamic / maximum255
product functions / DHCP
DHCP clientVar
DHCP Option 82Var
DHCP Option 66Var
DHCP Option 67Var
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
redundancy procedure STPVar
redundancy procedure RSTPVar
redundancy procedure MSTPVar
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
passive listeningVar
STP/RSTPVar
STPVar
RSTPVar
MSTPVar
RSTP big network supportVar
LACPVar
product functions / security
IEEE 802.1x (radius)Var
broadcast/multicast/unicast limiterVar
broadcast blockingVar
SSHVar
product functions / time
SICLOCK supportVar
NTPVar
SNTPVar
IEEE 1588 profile defaultYok
standards, specifications, approvals
CE markingVar
UKCA markingVar
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4:2007 (Class A)
for immunity to EMCEN 61000-6-2:2005
for safety / from CSA and ULUL 60950-1, CSA C22.2 Yok. 60950-1
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
railway application in accordance with EN 50155Yok
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'Yok' are currently under renewal.
Det Norske Veritas (DNV)Yok
Royal Institution of Naval Architects (RINA)Var
product functions / general
MTBF15 a
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
