Siemens 6XV1843-2E
SM FO FRNC kablo GP (2E9/125), halogen-free kablo, splittable, için permanent routing, max. uzunluk 1000 m minimum order quantity 20 m sold by the meter.
product brand nameSIMATIC NET
version of the assembled FO cablesold by the meter
cable designationAT-V(ZN)HH 2E9/125 TB900L 2,2
at 1550 nm / maximum0,22 dB/km
number of fibers / per FOC core1
number of FO cores / per FOC cable2
Ürün Hakkında
SM FO FRNC kablo GP (2E9/125), halogen-free kablo, splittable, için permanent routing, max. uzunluk 1000 m minimum order quantity 20 m sold by the meter.
Siemens 6XV1843-2E
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useHalogen-free cable (acc. to IEC 61034-1 / 61034-2 ve IEC 60754-1 / IEC 60754-2) for use indoors ve outdoors with permanent installation, UL approval
version of the assembled FO cablesold by the meter
cable designationAT-V(ZN)HH 2E9/125 TB900L 2,2
optical data
at 1550 nm / maximum0,22 dB/km
mechanical data
number of fibers / per FOC core1
number of FO cores / per FOC cable2

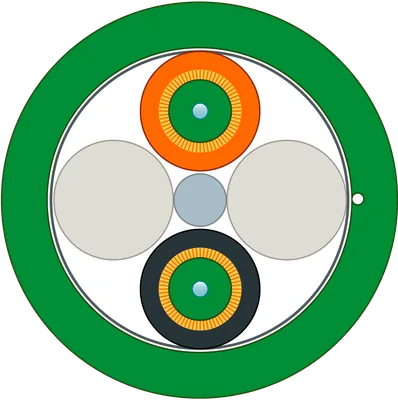

version of the FO conductor fibersingle-mode fiber 4E9/125/900, OS2, ITU-T G.657.A1
design of the FOC corefixed core (TB900L)
design of the fiber-optic cablesegmentable
of the optical fibers9 µm
of the optical fiber sheath125 µm
of the FOC core sheath2,2 mm
symmetrical deviation / of the outer diameter of the FOC core sheath0,1 mm
outer diameter / of the cable7,2 mm
symmetrical deviation / of the outer diameter of the line0,5 mm
of the fiber-optic cable coreQuartz glass
of the optical fiber sheathQuartz glass
of the FOC core sheathFRNC
of the fiber-optic cable sheathFRNC
of the strain reliefAramid fibers
of the FOC core sheathorange/black
of cable sheathgreen
with single bend / minimum permissible70 mm
with multiple bends / minimum permissible105 mm
during installation / short-term800 N
during operation / maximum250 N
short-term shear force per length500 N/cm
weight per length57 kg/km
ambient conditions
during operation-30... +85 °C
during storage-30... +85 °C
during transport-30... +85 °C
during installation-5... +50 °C
fire behaviorflame-resistant acc. to IEC 60332-1-2 ve IEC 60332-3-22 (Cat. A)
class of burning behaviour / according to EN 13501-6B2ca - s1a d1 a1
to mineral oilno resistance
to greaseconditional resistance
to waterconditional resistance
radiological resistance / to UV radiationconditional resistance
product features, product functions, product components / general
halogen-freeVar
silicon-freeVar
product component / rodent protectionYok
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum26000 m
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum5000 m
for glass FOC / for 10GBaseLR / for Industrial Ethernet / maximum10000 m
for glass FOC / with 10GBaseER / for Industrial Ethernet / maximum40000 m
for glass FOC / with PROFIBUS / maximum15000 m
standards, specifications, approvals
UL onayıVar; c(UL)us OFNR FT4
RoHS conformityVar
Aksesuarlar 11
Siemens 6XV1843-2E motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1901-0RP10-0AA0 | Aksesuar · Cabling system | |
| 6GK1900-1LP00-0AB0 | Aksesuar | |
| 6XV1843-5FH10-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0CA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0CB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH10-0CC0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH20-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH20-0AB0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH30-0AA0 | Aksesuar · Cables · network cable optical | |
| 6XV1843-5FH30-0AB0 | Aksesuar · Cables · network cable optical |
