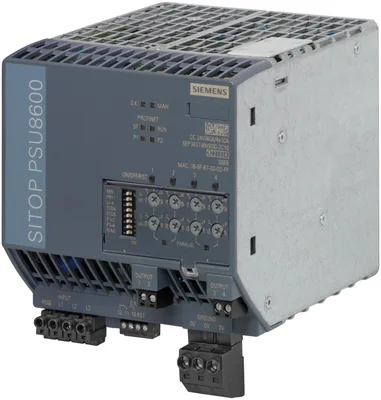

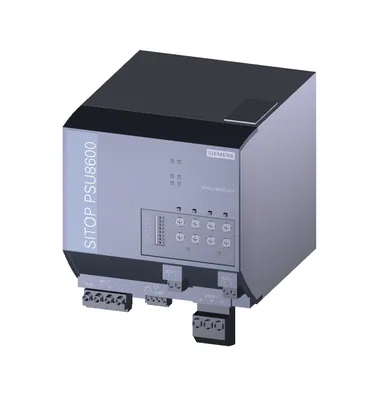

Siemens 6EP3437-8MB00-2CY0

SITOP PSU8600 3AC 40 A/4x10 A PN stabilized güç kaynağı giriş: 400-500 V 3 AC çıkış: 24 V DC/40 A/4x 10 A ile PN/IE bağlantı web server dahili OPC UA server dahili

SiemensMFR # 6EP3437-8MB00-2CY0SKU # CEY-8EF3B02E1A2E

product brand nameSITOP

product type designationPSU8600

product designationPower supply SITOP PSU8600

type of current supply24 V/40 A/4x 10 A

type of the power supply network3-phase AC

phase number3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SITOP PSU8600 3AC 40 A/4x10 A PN stabilized güç kaynağı giriş: 400-500 V 3 AC çıkış: 24 V DC/40 A/4x 10 A ile PN/IE bağlantı web server dahili OPC UA server dahili

Siemens 6EP3437-8MB00-2CY0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

Genel bilgiler

product brand nameSITOP

product type designationPSU8600

product designationPower supply SITOP PSU8600

type of current supply24 V/40 A/4x 10 A

input

type of the power supply network3-phase AC

phase number3

voltage curve at inputAC

minimum rated value400 V

maximum rated value500 V

initial value320 V

full-scale value575 V

supply voltage at ACDerating 320... 360 ve 530... 575 V

at 50 Hz400 V

at 60 Hz500 V

line frequency50/60 Hz

line frequency47... 63 Hz

wide range inputVar

buffering time for rated value of the output current in the event of power failure minimum15 ms

operating condition of the mains bufferingVin = 400 V; Prioritized supply of Output 1 in case of power failure selectable via DIP switch

at rated input voltage 400 V2,75 A

at rated input voltage 500 V2,2 A

current limitation of inrush current at 25 °C maximum14 A

I2t value maximum2,24 A²·s

fuse protection typeyok

fuse protection type in the feederRequired: 3-pole connected miniature circuit breaker 10... 16 A characteristic C veya circuit breaker 3RV2011-1DA10 (setting 3 A) veya 3RV2711-1DD10 (UL 489)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledVar

product function output voltage stabilizedVar

number of outputs4

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 2 at DC rated value24 V

at output 3 at DC rated value24 V

at output 4 at DC rated value24 V

at output 1 at DC5... 24 V

at output 2 at DC5... 24

at output 3 at DC5... 24

at output 4 at DC5... 24

output voltage adjustableVar; via potentiometer veya IE/PN interface

adjustable output voltage4... 28 V; Derating > 24 V: 4%/V; maks. 240 W per output, maks. 960 W overall system

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0,2 %

on slow fluctuation of ohm loading0,1 %

maximum100 mV

maximum200 mV

display version for normal operation3-color LED for operating state device; LED for operating mode manual/remote; 4 LEDs for communication PROFINET; 3-color LED per output for operating state output; LED green for parallel operation Output 1 ve 2 / 3 ve 4

type of signal at outputRelay contact (changeover contact, contact current capacity DC 60 V/0,3 A) for "Operating state OK"

behavior of the output voltage when switching onYok overshoot of Vout (soft start)

response delay maximum1 s; Without on-delay of the outputs

type of outputs connectionsimultaneous switch-on of all outputs after device power-up veya delay time of 25 ms, 100 ms, veya "load-optimized" for sequential switch-on of the outputs via DIP switch configurable

maximum500 ms

rated value40 A

per output10 A

at output 1 rated value10 A

at output 2 rated value10 A

at output 3 rated value10 A

at output 4 rated value10 A

rated range0... 40 A; +50... +60 °C: Derating 2,5%/K; no derating in connection with expansion module CNX8600 ve toplam load of the outputs the basic device maks. 480 W

supplied active power typical960 W

parallel switching of outputsVar; Parallel circuit Output 1 with 2 veya Output 3 with 4 can be selected via DIP switch

bridging of equipmentYok

efficiency

efficiency in percent93 %

at rated output voltage for rated value of the output current typical72 W

during no-load operation maximum20 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical0,4 %

maximum10 ms

protection and monitoring

design of the overvoltage protectionmaks. 35 V (maks. 500 ms)

property of the output short-circuit proofVar

design of short-circuit protectionelectronic overload cut-off; optionally constant current operation can be selected for Output 4 via DIP switches

adjustable current response value current of the current-dependent overload release0,5... 10 A

type of response value settingvia potentiometer veya IE/PN interface

of the excess currentIa >1.0...<1,5 x Ia threshold for 5 s permissible; Ia limit (= 1,5 x Ia threshold) for 200 ms permissible

of the current limitationIa limit (= 1,5 x Ia threshold) permissible for 5 s, afterwards Ia threshold continuous

in normal operationTotal system overloadable 150% Ia rated to 5 s/min

display version for overload and short circuit3-color LED for operating state device; 3-color LED per output for operating state output

design of the reset device/resetting mechanismvia sensor per output veya IE/PN interface

remote reset functionnon-isolated 24 V input (signal level "high" > 15 V)

interfaces

product function communication functionVar

design of the interfaceEthernet/PROFINET

design of the interface PROFINET protocolVar

OPC UAVar

safety

galvanic isolation between input and outputVar

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3,5 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingVar

UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259

EAC approvalVar

NEC Class 2Yok

SEMI F47Var

BISVar; R-41188271

CB-certificateVar

MTBF at 40 °C207.612 h

standards, specifications, approvals hazardous environments

IECExYok

ATEXYok

ULhazloc approvalYok

FM registrationYok

standards, specifications, approvals marine classification

shipbuilding approvalVar

American Bureau of Shipping Europe Ltd. (ABS)Var

French marine classification society (BV)Yok

Det Norske Veritas (DNV)Var

Lloyds Register of Shipping (LRS)Yok

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationVar

total1.886,7 kg

during manufacturing62,2 kg

during operation1.823,2 kg

after end of life0,52 kg

ambient conditions

during operation-25... +60 °C; with natural convection

during transport-40... +85 °C

during storage-40... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

connection method

type of electrical connectionPlug-in terminals with screwed connection

at inputL1, L2, L3, PE: Plug-in terminal with 1 screwed connection her biri for 0,2... 4 mm² single-wire / fine stranded

at output1, 2, 3, 4: Two plug-in terminals (1, 2 ve 3, 4) with 2 screwed connections her biri for 0,2... 2,5 mm²; 0 V: Plug-in terminal with 3 screwed connections for 0,2... 10 mm² (maks. 6 mm² with ferrule)

for auxiliary contactsRST (Reset): Plug-in terminal (together with alarm signal) with 1 screwed connection for 0,2... 1,5 mm²

for signaling contact11, 12, 14 (alarm signal): Plug-in terminal (together with Reset) with 1 screwed connection her biri for 0,2... 1,5 mm²

removable terminal at inputVar

removable terminal at outputVar

design of the interface for communicationPROFINET/Ethernet: two RJ45 sockets (2-port switch)

suitability for interaction modular systemVar

mechanical data

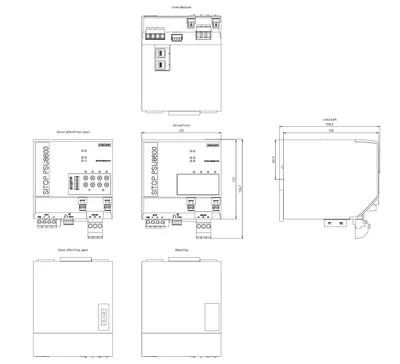

width × height × depth of the enclosure125 × 125 × 150 mm

installation width × mounting height125 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x15

DIN-rail mountingVar

S7 rail mountingYok

wall mountingYok

housing can be lined upVar

net weight2,6 kg

accessories

electrical accessoriesExpansion modules CNX8600, buffer modules BUF8600, module UPS8600

mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

additional information

other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing62,2 kg

global warming potential [CO2 eq] / during operation1823,2 kg

global warming potential [CO2 eq] / after end of life0,52 kg

global warming potential [CO2 eq] / total1886,7 kg

Aksesuarlar 11

Siemens 6EP3437-8MB00-2CY0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
6EP4437-8XB00-0CY0	Aksesuar · Channel expansion module · #NO_DATA#
6EP4297-8HB10-0XY0	Aksesuar · Buffer module · #NO_DATA#
6EP4295-8HB00-0XY0	Aksesuar · Buffer module · #NO_DATA#
6EP4145-8GB00-0XY0	Aksesuar · Battery module
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
6EP4143-8JB00-0XY0	Aksesuar · Battery module
6EP4436-8XB00-0DY0	Aksesuar · Channel expansion module · #NO_DATA#
6EP4436-8XB00-0CY0	Aksesuar · Channel expansion module · #NO_DATA#
6EP4297-8HB00-0XY0	Aksesuar · Buffer module · #NO_DATA#
6EP4293-8HB00-0XY0	Aksesuar · Buffer module · #NO_DATA#
6EP4548-7XB00-3AX0	Aksesuar · Chopper module · #NO_DATA#
