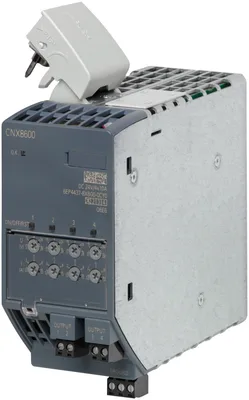

Siemens 6EP4437-8XB00-0CY0
SITOP CNX8600 4x10 A genişleme modülü için PSU8600 çıkış: 24 V DC/4x 10 A
product brand nameSITOP
product type designationCNX8600
product designationExtension module SITOP CNX8600
type of current supply4x 10 A
voltage curve at outputControlled, isolated DC voltage
number of outputs4
Ürün Hakkında
SITOP CNX8600 4x10 A genişleme modülü için PSU8600 çıkış: 24 V DC/4x 10 A
Siemens 6EP4437-8XB00-0CY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationCNX8600
product designationExtension module SITOP CNX8600
type of current supply4x 10 A
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
number of outputs4
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 2 at DC rated value24 V
at output 3 at DC rated value24 V
at output 4 at DC rated value24 V
at output 1 at DC5... 24 V
at output 2 at DC5... 24
at output 3 at DC5... 24
at output 4 at DC5... 24
output voltage adjustableVar; via potentiometer veya IE/PN interface
adjustable output voltage4... 28 V; Derating > 24 V: 4%/V; maks. 240 W per output
relative overall tolerance of the voltage3 %
on slow fluctuation of input voltage0,2 %
on slow fluctuation of ohm loading0,1 %
maximum100 mV
maximum200 mV
display version for normal operation3-color LED for operating state module; 3-color LED per output for operating state output
type of signal at outputRelay contact (changeover contact, contact current capacity DC 60 V/0,3 A) for "Operating state OK" power supply unit PSU8600
behavior of the output voltage when switching onYok overshoot of Vout (soft start)
response delay maximum1,5 s; Without on-delay of the outputs
type of outputs connectionsimultaneous switch-on of all outputs after device power-up veya delay time of 25 ms, 100 ms, veya "load-optimized" for sequential switch-on of the outputs via DIP switch to PSU8600 power supply configurable
maximum500 ms
rated value40 A
per output10 A
at output 1 rated value10 A
at output 2 rated value10 A
at output 3 rated value10 A
at output 4 rated value10 A
rated range0... 40 A; Yok increase in the maximum output power of the overall system SITOP PSU8600 via the expansion module SITOP CNX8600 possible
supplied active power typical960 W
parallel switching of outputsYok
bridging of equipmentYok
efficiency
efficiency in percent97 %
at rated output voltage for rated value of the output current typical30 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0,1 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical0,4 %
maximum10 ms
protection and monitoring
design of the overvoltage protectionmaks. 35 V (maks. 500 ms)
property of the output short-circuit proofVar
design of short-circuit protectionelectronic overload cut-off
adjustable current response value current of the current-dependent overload release0,5... 10 A
type of response value settingvia potentiometer veya IE/PN interface
of the excess currentIa >1.0...<1,5 x Ia threshold for 5 s permissible; Ia limit (= 1,5 x Ia threshold) for 200 ms permissible
display version for overload and short circuit3-color LED for operating state module; 3-color LED per output for operating state output
design of the reset device/resetting mechanismvia sensor per output veya IE/PN interface
remote reset functionnon-isolated 24 V input (signal level "high" > 15 V) power supply PSU8600
interfaces
product function communication functionVar
design of the interfaceEthernet/PROFINET via power supply unit PSU8600
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass III
protection class IPIP20
EMC
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
EAC approvalVar
NEC Class 2Yok
SEMI F47Var
CB-certificateVar
MTBF at 40 °C358.372 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Var
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total873,7 kg
during manufacturing50,2 kg
during operation822 kg
after end of life1,17 kg
ambient conditions
during operation-25... +60 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionPlug-in terminals with screwed connection
at output1, 2, 3, 4: Two plug-in terminals (1, 2 ve 3, 4) with 2 screwed connections her biri for 0,2... 2,5 mm²; Ground: Plug-in terminal with 3 screwed connections for 0,2... 2,5 mm²
removable terminal at outputVar
suitability for interaction modular systemVar
type of connection to system componentsVia dahili connector
mechanical data

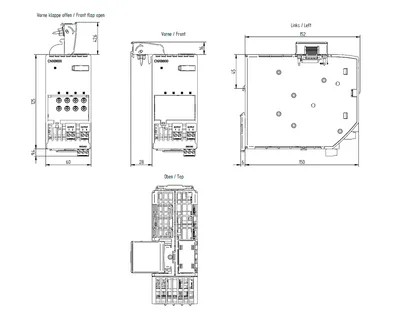

width × height × depth of the enclosure60 × 125 × 150 mm
installation width × mounting height60 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight1,15 kg
accessories
mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing50,2 kg
global warming potential [CO2 eq] / during operation822 kg
global warming potential [CO2 eq] / after end of life1,17 kg
global warming potential [CO2 eq] / total873,7 kg
