Siemens 6EP4297-8HB10-0XY0

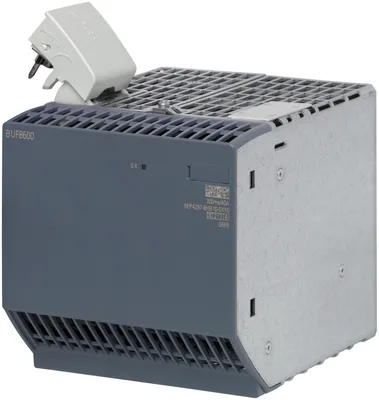

SITOP BUF8600 300ms buffer modül için PSU8600 buffer kapasite 300 ms/40 A ile electrolytic capacitors maintenance-free
product brand nameSITOP
product type designationBUF8600
type of current supply300 ms/40 A
type of energy storageelectrolytic capacitors
load time typical60 s; 400 V
rated value40 A
Ürün Hakkında
SITOP BUF8600 300ms buffer modül için PSU8600 buffer kapasite 300 ms/40 A ile electrolytic capacitors maintenance-free
Siemens 6EP4297-8HB10-0XY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationBUF8600
type of current supply300 ms/40 A
memory
type of energy storageelectrolytic capacitors
product function DC-UPS modularly expandableVar
design of the mains power cut bridging-connectionBackup time with 40 A load current: 300 ms
buffering time for rated value of the output current in the event of power failure300 ms
load time typical60 s; 400 V
output
rated value40 A
protection and monitoring
display version3-color LED for operating state module
for normal operationLED green for "buffer standby exist"
in buffering modeLED yellow for "buffered mode"
interfaces
product function communication functionVar
design of the interfaceEthernet/PROFINET via power supply unit PSU8600
safety
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
EAC approvalVar
SEMI F47Var
type of certification CB-certificateVar
MTBF at 40 °C4.505.531 h
standards, specifications, approvals hazardous environments
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total72 kg
during manufacturing35,8 kg
during operation34,7 kg
after end of life0,67 kg
ambient conditions
during operation-25... +60 °C; with natural convection
during transport-40... +70 °C
during storage-40... +70 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
suitability for interaction modular systemVar
type of connection to system componentsVia dahili connector
mechanical data

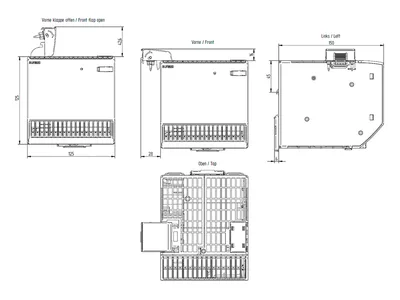

width × height × depth of the enclosure125 × 125 × 150 mm
installation width × mounting height125 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight2,26 kg
accessories
mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
