Detayları Gör
Siemens
6EP1321-1LD01
MFR #6EP1321-1LD01
SKU #YLSKDHQDCONDRC
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

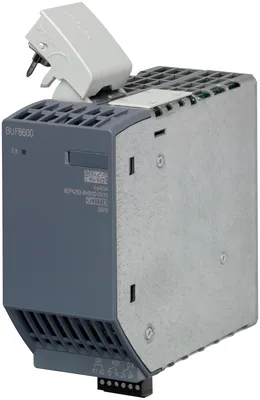

Siemens 6EP4293-8HB00-0XY0
SITOP BUF8600 4s buffer modül için PSU8600 buffer kapasite 4 s/40 A ile dual-layer capacitators maintenance-free
product brand nameSITOP
product type designationBUF8600
type of current supply4 s/40 A
type of energy storageDouble-layer capacitors
load time typical5 min; 400 V
rated value40 A
Ürün Hakkında
SITOP BUF8600 4s buffer modül için PSU8600 buffer kapasite 4 s/40 A ile dual-layer capacitators maintenance-free
Siemens 6EP4293-8HB00-0XY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationBUF8600
type of current supply4 s/40 A
memory
type of energy storageDouble-layer capacitors
product function DC-UPS modularly expandableVar
design of the mains power cut bridging-connectionBackup time with 40 A load current: 4 s
buffering time for rated value of the output current in the event of power failure4.000 ms
load time typical5 min; 400 V
output
rated value40 A
protection and monitoring
display version3-color LED for operating state module
for normal operationLED green for "buffer standby exist"
in buffering modeLED yellow for "buffered mode"
interfaces
product function communication functionVar
design of the interfaceEthernet/PROFINET via power supply unit PSU8600
safety
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
EAC approvalVar
SEMI F47Var
type of certification CB-certificateVar
MTBF at 40 °C1.374.707 h
standards, specifications, approvals hazardous environments
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total124,6 kg
during manufacturing19,8 kg
during operation104 kg
after end of life0,37 kg
ambient conditions
during operation-25... +60 °C; with natural convection
during transport-40... +70 °C
during storage-40... +70 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation
connection method
type of electrical connectionPlug-in terminal with screw connectors

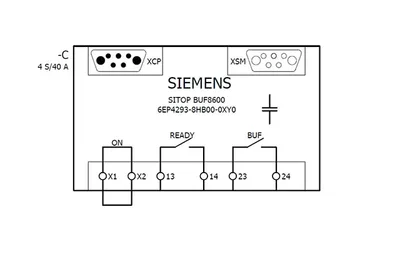

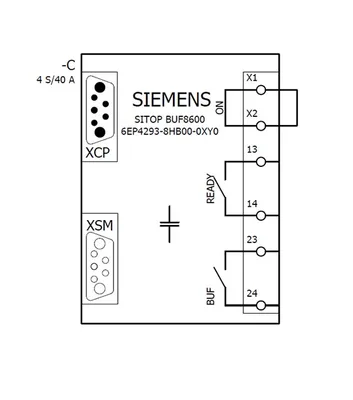

for control circuit and status messageX1, X2 (control contact) ve 13,14, 23, 24 (message signals): 1 screw terminal her biri for 0,2... 1,5 mm²
suitability for interaction modular systemVar
type of connection to system componentsVia dahili connector
mechanical data

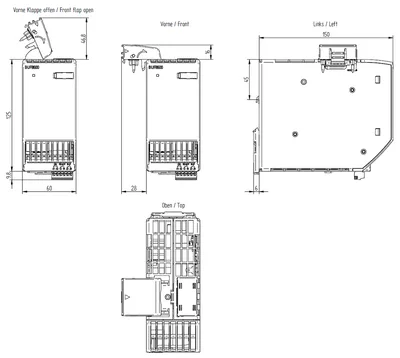

width × height × depth of the enclosure60 × 125 × 150 mm
installation width × mounting height60 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight1,25 kg
accessories
mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
