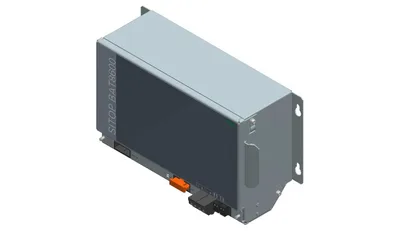

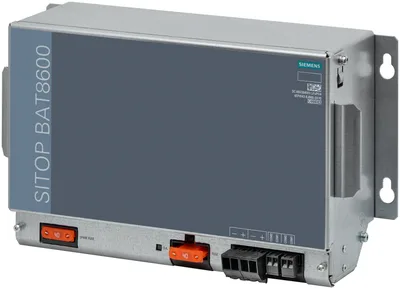

Siemens 6EP4143-8JB00-0XY0
SITOP BAT8600 LiFePO4 battery modül için UPS8600 48 V DC/358 Wh energy storage: maintenance-free lithium iron phosphate batteries
product brand nameSITOP
product type designationBAT8600
product designationBattery module 358 Wh
product versionExtension module/battery module
energy content of energy storage358 W·h
output current rated value20 A
Ürün Hakkında
SITOP BAT8600 LiFePO4 battery modül için UPS8600 48 V DC/358 Wh energy storage: maintenance-free lithium iron phosphate batteries
Siemens 6EP4143-8JB00-0XY0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationBAT8600
product designationBattery module 358 Wh
type of batterybakım gerektirmez LiFePO4 rechargeable battery
product versionExtension module/battery module
output
energy content of energy storage358 W·h
output current rated value20 A
output voltage at DC rated value48 V
design of the mains power cut bridging-connectiontipik 21 min 960 W system load, tipik 42 min 480 W system load (applies to new, fully charged battery module ambient temperature 25°C)
number of parallel-switched equipment resources for increasing the power5
interfaces
communication functionVar
protection and monitoring
design of short-circuit protectionBlade-type fuse 40 A, 58 V DC
design of the overload protectionValve control
display version for normal operation3-color LED for operating state module
safety
operating resource protection classClass III
protection class IPIP20
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus (UL 61010-1 3rd Ed., UL 61010-2-201 2nd Ed.)
EAC approvalVar
type of certification CB-certificateVar
standards, specifications, approvals hazardous environments
ATEXYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Var
Det Norske Veritas (DNV)Var
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total65,113 kg
during manufacturing61,5 kg
during operation0,402 kg
after end of life1,172 kg
ambient conditions
ambient conditionFor storage, mounting ve operation of batteries, the relevant DIN/VDE regulations veya country-specific regulations (e.g. VDE 0510 Part 2/EN 50272-2) must be observed.
during operation-10... +50 °C
during transport-30... +70 °C
during storage-20... +35 °C
service life
typicalcapacity falls to 80 % of original capacity (according to EUROBAT)
at 10 °C typical15 a
at 20 °C typical13 a
at 30 °C typical8 a
at 40 °C typical4 a
at 50 °C typical2 a
noteIn addition to the storage temperature, additional factors, such as storage duration ve charging status during storage, have a major impact on the potential service life. This means batteries should preferably be stored fully charged for short periods of time in a dry, cool ve frost-proof (temperature range 0 to +20 °C) location.
connection method
type of electrical connectionPlug-in terminals with screwed connection
for UPS module+, -: 2 plug-in terminals with 1 screwed connection her biri for 0,2... 10 mm²
for data cableCOM1, COM2: 2 plug-in terminals with 1 screwed connection her biri for 0,2... 2,5 mm²

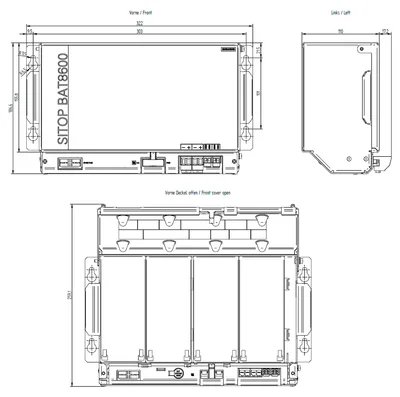

mechanical data
width × height × depth of the enclosure322 × 187 × 110 mm
installation width × mounting height322 mm × 207 mm
top20 mm
bottom0 mm
left0 mm
right0 mm
fastening methodKeyhole mounting for hooking in to M4 screws
DIN-rail mountingYok
S7 rail mountingYok
wall mountingVar
net weight7,1 kg
number of batteries4
accessories
product component included2x blade-type fuse 40 A, 58 V DC
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
