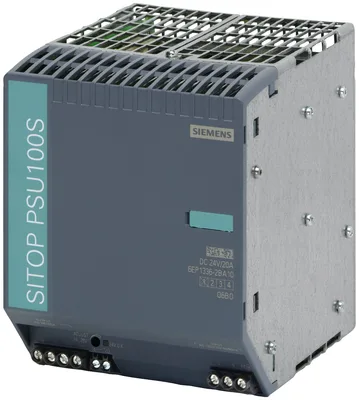

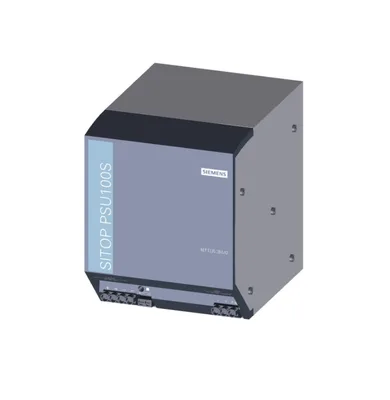

Siemens 6EP1336-2BA10
SITOP PSU100S 20 A stabilized power supply input: 120/230 V AC output: 24 V DC/20 A
product brand nameSITOP
product type designationPSU100S
product designationPower supply SITOP smart
type of current supply24 V/20 A
type of the power supply network1-phase AC
phase number1
Ürün Hakkında
SITOP PSU100S 20 A stabilized power supply input: 120/230 V AC output: 24 V DC/20 A
Siemens 6EP1336-2BA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
product brand nameSITOP
product type designationPSU100S
product designationPower supply SITOP smart
type of current supply24 V/20 A
input
type of the power supply network1-phase AC
phase number1
voltage curve at inputAC
supply voltage at ACAutomatic range selection
supply voltage120 V/230 V
input voltage 1 at AC85... 132 V
input voltage 2 at AC176... 264 V
at 50 Hz230 V
at 60 Hz120 V
line frequency50/60 Hz
line frequency47... 63 Hz
wide range inputYok
overvoltage overload capability2,3 × Vin rated, 1,3 ms
buffering time for rated value of the output current in the event of power failure minimum20 ms
operating condition of the mains bufferingVin = 120/230 V
at rated input voltage 120 V7,5 A
at rated input voltage 230 V3,5 A
current limitation of inrush current at 25 °C maximum11 A
I2t value maximum10 A²·s
fuse protection typeT 10 A (not accessible)
fuse protection type in the feederRecommended miniature circuit breaker: from 10 A characteristic C veya circuit-breaker 3RV2411-1JA10 (120 V) veya 3RV2411-1FA10 (230 V)
output
voltage curve at outputControlled, isolated DC voltage
product function output voltage controlledVar
product function output voltage stabilizedVar
output voltage at DC rated value24 V
at output 1 at DC rated value24 V
at output 1 at DC24 V
output voltage adjustableVar; via potentiometer
adjustable output voltage24... 28 V; maks. 480 W
relative overall tolerance of the voltage3 %
on slow fluctuation of input voltage0,5 %
on slow fluctuation of ohm loading1 %
maximum150 mV
maximum240 mV
display version for normal operationGreen LED for 24 V OK
type of signal at outputRelay contact (NO contact, rating 50 V DC/ 0,3 A) for "24 V OK"
behavior of the output voltage when switching onYok overshoot of Vout (soft start)
response delay maximum1,5 s
typical50 ms
maximum500 ms
rated value20 A
rated range0... 20 A; 24 A up to +45°C; +60... +70 °C: Derating 5%/K
supplied active power typical480 W
on short-circuiting during the start-up typical35 A
at short-circuit during operation typical35 A
on short-circuiting during the start-up100 ms
at short-circuit during operation100 ms
bridging of equipmentVar
number of parallel-switched equipment resources for increasing the power2
efficiency
efficiency in percent90 %
at rated output voltage for rated value of the output current typical53 W
closed-loop control
relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical1 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical3 %
maximum10 ms
protection and monitoring
design of the overvoltage protection< 60 V
property of the output short-circuit proofVar
design of short-circuit protectionElectronic shutdown, automatic restart
typical21 A
in normal operationoverload capability 150 % Iout rated up to 5 s/min
maximum7 A
safety
galvanic isolation between input and outputVar
galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection classClass I
maximum3,5 mA
typical1 mA
protection class IPIP20
EMC
for emitted interferenceEN 55022 Class B
for mains harmonics limitationEN 61000-3-2
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingVar
UL onayıVar; cULus-Listed (UL 508, CSA C22.2 Yok. 107,1), File E197259
UKCA markingVar
EAC approvalVar
NEC Class 2Yok
BISVar; R-41183539
CB-certificateVar
MTBF at 40 °C1.778.916 h
standards, specifications, approvals hazardous environments
IECExYok
ATEXYok
ULhazloc approvalYok
FM registrationYok
standards, specifications, approvals marine classification
shipbuilding approvalVar
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Var
Lloyds Register of Shipping (LRS)Yok
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationVar
total1.707,2 kg
during manufacturing47,4 kg
during operation1.658,2 kg
after end of life0,72 kg
ambient conditions
during operation0... 70 °C; with natural convection
during transport-40... +85 °C
during storage-40... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5... 95% no condensation

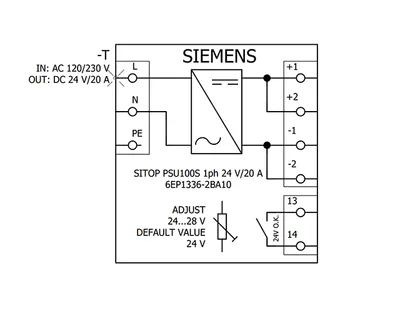

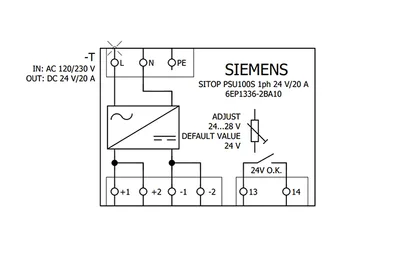

connection method
type of electrical connectionscrew terminal
at inputL1, N, PE: 1 screw terminal her biri for 0,2... 4 mm² single-core/finely stranded
at output+, -: 2 screw terminals her biri for 0,2... 4 mm²
for auxiliary contacts13, 14 (alarm signal): 1 screw terminal her biri for 0,14... 1,5 mm²
mechanical data

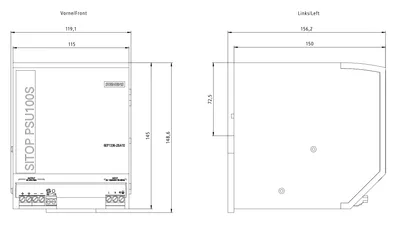

width × height × depth of the enclosure115 × 145 × 150 mm
installation width × mounting height120 mm × 245 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingVar
S7 rail mountingYok
wall mountingYok
housing can be lined upVar
net weight2,4 kg
accessories
electrical accessoriesBuffer module
mechanical accessoriesDevice identification label 20 mm × 7 mm, pale turquoise 3RT1900-1SB20
additional information
other informationSpecifications rated input voltage ve ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing47,4 kg
global warming potential [CO2 eq] / during operation1658,2 kg
global warming potential [CO2 eq] / after end of life0,72 kg
global warming potential [CO2 eq] / total1707,2 kg
Aksesuarlar 29
Siemens 6EP1336-2BA10 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6EP4437-7FB00-3DX0 | Aksesuar · Selectivity module | |
| 6EP4437-7EB00-3DX0 | Aksesuar · Selectivity module | |
| 6EP4231-7HB00-0AX0 | Aksesuar · Buffer module · #NO_DATA# | |
| 6EP4347-7RB00-0AX0 | Aksesuar · Redundancy module · #NO_DATA# | |
| 6EP1933-2EC41 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP4136-3AB00-0AY0 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 6EP4134-3AB00-0AY0 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP4346-7RB00-0AX0 | Aksesuar · Redundancy module · #NO_DATA# | |
| 6EP1933-2EC51 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP1935-5PG01 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP4134-3AB00-2AY0 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP1961-2BA31 | Aksesuar · Selectivity module | |
| 6EP1961-2BA11 | Aksesuar · Selectivity module | |
| 6EP1961-3BA01 | Aksesuar · Buffer module · #NO_DATA# | |
| 6EP1961-2BA21 | Aksesuar · Selectivity module | |
| 6EP1961-2BA41 | Aksesuar · Selectivity module | |
| 6EP1961-2BA51 | Aksesuar · Selectivity module | |
| 6EP4437-7FB00-3CX0 | Aksesuar · Selectivity module | |
| 6EP4438-7FB00-3DX0 | Aksesuar · Selectivity module | |
| 6EP4437-7EB00-3CX0 | Aksesuar · Selectivity module | |
| 6EP4438-7EB00-3DX0 | Aksesuar · Selectivity module | |
| 6EP4437-8FB00-4CY0 | Aksesuar · Selectivity system | |
| 6EP1962-2BA00 | Aksesuar · Redundancy module · #NO_DATA# | |
| 6EP4548-7XB00-3AX0 | Aksesuar · Chopper module · #NO_DATA# | |
| 6EP4136-3AB00-2AY0 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP4134-3AB00-1AY0 | Aksesuar · Uninterruptible power supply · #NO_DATA# | |
| 6EP1961-2BA00 | Aksesuar · Diagnosis module · #NO_DATA# | |
| 6EP4136-3AB00-1AY0 | Aksesuar · Uninterruptible power supply · #NO_DATA# |
