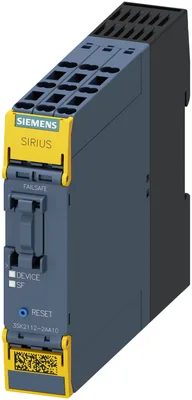

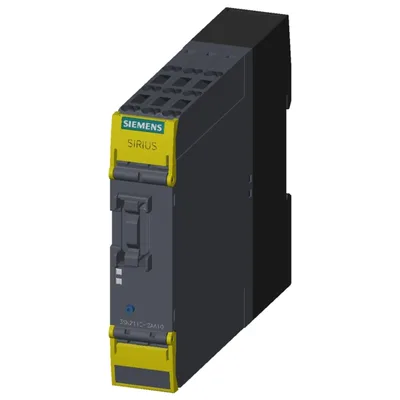

Siemens 3SK2112-2AA10

SIRIUS safety röle temel ünite 3SK2 series 10 F-DI, 2 F-DQ, 1 DQ, 24 V DC Can be parameterized via SIRIUS Safety ES 22,5 mm overall genişlik yaylı klemens (push-in) en çok SIL 3 (IEC 62061) en çok performance level e (ISO 13849-1) çıkış expansions 3SK1, kaplin röle 3RQ1 ve fail-safe motor starters 3RM1 via cihaz konnektör connectable

SiemensMFR # 3SK2112-2AA10SKU # CEY-8EF3B0390CB5

product brand nameSIRIUS

product categorySafety relay

product designationBase-Unit

design of the product10 F-DI, 2 F-DQ, 1 DQ

monitoring of floating sensorsVar

monitoring of non-floating sensorsVar

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3SK2112-2AA10

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product categorySafety relay

product designationBase-Unit

design of the product10 F-DI, 2 F-DQ, 1 DQ

suitability for use for monitoring of optoelectronic protective devices according to IEC 61496-1Var

monitoring of floating sensorsVar

monitoring of non-floating sensorsVar

position switch monitoringVar

EMERGENCY-OFF circuit monitoringVar

valve monitoringVar

opto-electronic protection device monitoringVar

magnetically operated switch monitoringVar

proximity switch monitoringVar

safety-related circuitsVar

General technical data

EMERGENCY STOP functionVar

protective door monitoringVar

protective door monitoring with tumblerVar

muting, 2 sensor-parallelVar

muting, 4 sensor-parallelVar

muting, 4 sensor-sequentialVar

monitoring parameterizableVar

evaluation: electro-sensitive protective equipmentVar

evaluation: selector switchVar

pressure-sensitive mat monitoringVar

evaluation: two-hand operator panelVar

evaluation: enabling switchVar

monitored start-upVar

two-hand control according to EN 574Var

configuration software requiredVar; Safety ES V1.0 ve üstü

number of function blocks typical50

insulation voltage rated value50 V

degree of pollution3

surge voltage resistance rated value800 V

of the enclosureIP20

of the terminalIP20

shock resistance15 g / 11 ms

vibration resistance according to IEC 60068-2-65... 500 Hz: 0,75 mm

operating frequency maximum2.000 1/h

reference code according to IEC 81346-2F

Substance Prohibitance (day/month/year)05/28/2009

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1

Net Weight0,171 kg

product function suitable for AS-i Power24VYok

product function diagnostics with CTT2 deviceYok

Ambient conditions

installation altitude at height above sea level maximum4.000 m

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

relative humidity during operation10... 95 %

air pressure according to SN 3120590... 106 kPa

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1class A

due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge

Safety related data

test wear-related service life necessaryYok

diagnostics test interval by internal test function maximum1.000 s

stop category according to IEC 60204-10 / 1

IEC 62061

SIL Claim Limit (subsystem) according to EN 620613

according to IEC 62061SIL 3

at single-channel evaluation according to IEC 620611

at 2-channel evaluation according to IEC 620613

according to IEC 620611E-8 1/h

ISO 13849

performance level (PL) according to EN ISO 13849-1e

category according to EN ISO 13849-14

according to ISO 13849-1PL e

at single-channel evaluation according to ISO 13849-1c

at 2-channel evaluation according to ISO 13849-1e

according to ISO 13849-14

at 2-channel evaluation according to ISO 13849-14

device type according to ISO 13849-11

overdimensioning according to ISO 13849-2 necessaryYok

IEC 61508

according to IEC 615083

at single-channel evaluation according to IEC 615081

at 2-channel evaluation according to IEC 615083

PFHD with high demand rate according to IEC 615081E-8 1/h

PFDavg with low demand rate according to IEC 615081.5E-5

Safe failure fraction (SFF)99 %

according to IEC 615081

at single-channel evaluation according to IEC 615080

at 2-channel evaluation according to IEC 615081

of service life according to IEC 6150820 a

for proof test interval or service life according to IEC 6150820 a

Electrical Safety

touch protection against electrical shockfinger-safe

Inputs/ Outputs

parameterizable inputsVar

parameterizable outputsVar

at the digital outputs short-circuit protectionVar

safety-related10

non-safety-related0

input delay time0... 150 ms

type of digital inputs according to IEC 60947-1Type 1

ingress aquisition time at digital input maximum60 ms

input delay time at digital input maximum150 ms

input voltage at digital input at DC rated value24 V

for signal <1> typical2,6 mA

safety-related 2-channel2

for testing contact-based sensors2

1-channel0

2-channel0

safety-related 2-channel2

non-safety-related1

design of the contactless switching element safety-relatedP potential

recovery time of the safe outputs0 ms

readback time maximum400 ms

light test period3 ms

dark period of the common drivers3 ms

switching capacity current of semiconductor outputs at DC-13 at 24 V4 A

maximum0,1 mA

at digital output with signal <0> maximum0,1 mA

total current maximum6,5 A

voltage drop maximum0,5 V

— shielded maximum1.000 m

— unshielded maximum600 m

— shielded maximum1.000 m

— unshielded maximum600 m

Communication/ Protocol

PROFIBUS DP protocolVar; when using the DP interface module; 64 bit cyclical data

PROFINET IO protocolVar; when using the PN interface module; 64-bit cyclic data

protocol is supported AS-Interface protocolYok

Control circuit/ Control

type of voltageDC

control supply voltage rated value24 V

initial value0,85

full-scale value1,2

at 24 V10 A

at 24 V1 ms

operating power rated value2,5 W

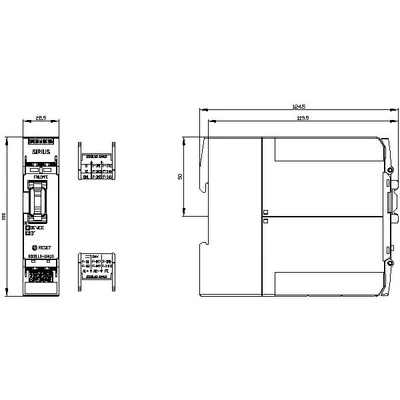

Installation/ mounting/ dimensions

mounting positionany

fastening methodSnap-mounted to DIN rail veya screw-mounted with additional push-in lug

height100 mm

width22,5 mm

depth124,5 mm

Connections/ Terminals

product function removable terminalVar

type of electrical connectionspring-loaded terminal (push-in)

solid1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)

finely stranded with core end processing1x (0,5... 1,0 mm²), 2x (0,5... 1,0 mm²)

for AWG cables solid1x (20... 16), 2x (20... 16)

for AWG cables stranded1x (20... 16), 2x (20... 16)

connectable conductor cross-section finely stranded with core end processing0,5... 1 mm²

solid20... 16

stranded20... 16
