Siemens 3SU1150-0AB50-1BA0 için nasıl fiyat teklifi alabilirim?

Siemens 3SU1150-0AB50-1BA0 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu CEY-8EF3B02EEA0D ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3SU1150-0AB50-1BA0 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3SU1150-0AB50-1BA0 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3SU1150-0AB50-1BA0 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

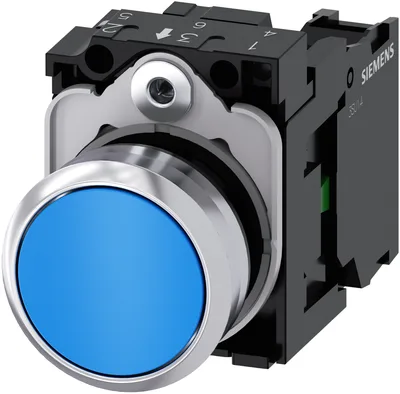

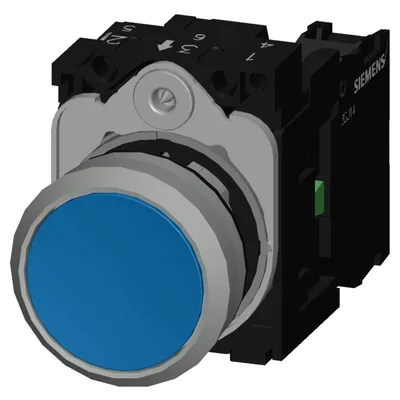

Siemens 3SU1150-0AB50-1BA0

Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type, 1 NO, screw terminal

SiemensMFR # 3SU1150-0AB50-1BA0SKU # CEY-8EF3B02EEA0D

product brand nameSIRIUS ACT

product designationPushbuttons

design of the productComplete unit

product type designation3SU1

product lineMetal, shiny, 22 mm

of supplied contact module at position 13SU1400-1AA10-1BA0

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Pushbutton, 22 mm, round, metal, shiny, blue, pushbutton, flat, momentary contact type, 1 NO, screw terminal

Siemens 3SU1150-0AB50-1BA0

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS ACT

product designationPushbuttons

design of the productComplete unit

product type designation3SU1

product lineMetal, shiny, 22 mm

of supplied contact module at position 13SU1400-1AA10-1BA0

of the supplied holder3SU1550-0AA10-0AA0

of the supplied actuator3SU1050-0AB50-0AA0

number of command points1

Actuator

design of the actuating elementButton, flat

principle of operation of the actuating elementmomentary contact type

product extension optional light sourceYok

color of the actuating elementblue

material of the actuating elementplastic

shape of the actuating elementround

outer diameter of the actuating element29,45 mm

number of contact modules1

Front ring

product component front ringVar

design of the front ringStandard

material of the front ringMetal, high gloss

color of the front ringsilver

Holder

material of the holderPlastic

Display

number of LED modules0

General technical data

product function positive openingYok

product component light sourceYok

insulation voltage rated value500 V

degree of pollution3

type of voltage of the operating voltageAC/DC

surge voltage resistance rated value6 kV

protection class IPIP66, IP67, IP69(IP69K)

protection class IP of the terminalIP20

degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12, 13

according to IEC 60068-2-27sinusoidal half-wave 15 g / 11 ms

according to IEC 60068-2-610... 500 Hz: 5 g

operating frequency maximum3.600 1/h

mechanical service life (operating cycles) typical10.000.000

electrical endurance (operating cycles) typical10.000.000

thermal current10 A

reference code according to IEC 81346-2S

continuous current of the C characteristic MCB10 A; for a short-circuit current smaller than 400 A

continuous current of the quick DIAZED fuse link10 A

continuous current of the DIAZED fuse link gG10 A

Substance Prohibitance (day/month/year)10/01/2014

Net Weight66,5 g

— at 50 Hz rated value5... 500 V

— at 60 Hz rated value5... 500 V

at DC rated value5... 500 V

Power Electronics

contact reliabilityOne maloperation per 100 million (17 V, 5 mA), one maloperation per 10 million (5 V, 1 mA)

Auxiliary circuit

design of the contact of auxiliary contactsSilver alloy

number of NC contacts for auxiliary contacts0

number of NO contacts for auxiliary contacts1

Connections/ Terminals

type of electrical connectionscrew terminal

of modules and accessoriesScrew-type terminal

solid with core end processing2x (0,5... 0,75 mm²)

solid without core end processing2x (1,0... 1,5 mm²)

finely stranded with core end processing2x (0,5... 1,5 mm²)

finely stranded without core end processing2x (1,0... 1,5 mm²)

for AWG cables2x (18... 14)

tightening torque of the screws in the bracket1... 1,2 N·m

tightening torque with screw-type terminals0,8... 0,9 N·m

Safety related data

product function suitable for safety functionVar

test wear-related service life necessaryVar

with high demand rate per NO contact according to SN 3192050 %

B10 value with high demand rate according to SN 3192010.000.000

ISO 13849

device type according to ISO 13849-13

IEC 61508

safety device type according to IEC 61508-2Type A

T1 value for proof test interval or service life according to IEC 6150820 a

Ambient conditions

during operation-25... +70 °C

during storage-40... +80 °C

environmental category during operation according to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10... 95%, no condensation in operation permitted for all devices behind front panel)

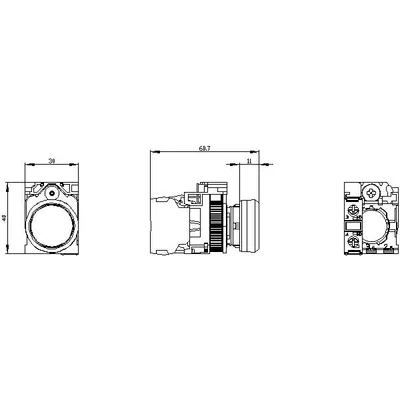

Installation/ mounting/ dimensions

fastening methodfront plate mounting

of modules and accessoriesFront plate mounting

height40 mm

width30 mm

shape of the installation openinground

mounting diameter22,3 mm

positive tolerance of installation diameter0,4 mm

mounting height11 mm

installation width29,5 mm

installation depth49,7 mm

Environmental footprint

Environmental Product Declaration(EPD)Var

global warming potential [CO2 eq] total0,593 kg

global warming potential [CO2 eq] during manufacturing0,625 kg

global warming potential [CO2 eq] during operation0,235 kg

global warming potential [CO2 eq] after end of life-0.267 kg

Siemens eco profile (SEP)Siemens EcoTech

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing0,625 kg

global warming potential [CO2 eq] / during operation0,235 kg

global warming potential [CO2 eq] / after end of life-0.267 kg

global warming potential [CO2 eq] / total0,593 kg

Aksesuarlar 8

Siemens 3SU1150-0AB50-1BA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3SU1900-0AC81-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0DB70-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AC16-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AN10-0AA0	Aksesuar · Commanding and signaling devices
3SU1900-0AG10-0AA0	Aksesuar · Commanding and signaling devices
3SU1400-1AA10-1BA0	Bileşen · Commanding and signaling devices
3SU1050-0AB50-0AA0	Bileşen · Commanding and signaling devices
3SU1550-0AA10-0AA0	Bileşen · Commanding and signaling devices
