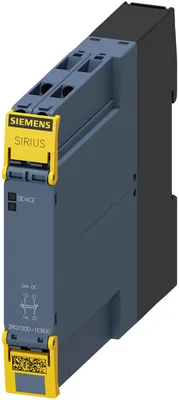

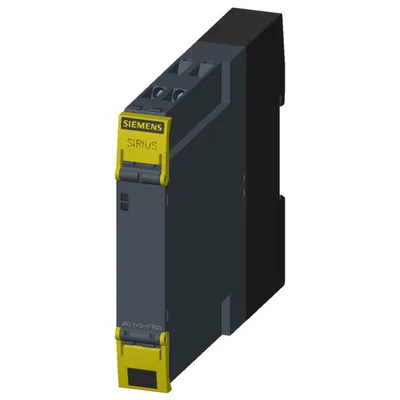

Siemens 3RQ1000-1EB00
Positively driven coupling relay in industrial enclosure 1 NO contact / 1 NC contact 24 V DC SIL 2 / PL c screw terminal
product brand nameSIRIUS
product designationforce-guided coupling relay
design of the productfail-safe up to SIL 2/PL c
product type designation3RQ1
consumed active power0,6 W
degree of pollution3
Ürün Hakkında
Positively driven coupling relay in industrial enclosure 1 NO contact / 1 NC contact 24 V DC SIL 2 / PL c screw terminal
Siemens 3RQ1000-1EB00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationforce-guided coupling relay
design of the productfail-safe up to SIL 2/PL c
product type designation3RQ1
General technical data
product feature protective coating on printed-circuit boardYok
consumed active power0,6 W
insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V
degree of pollution3
surge voltage resistance rated value4 kV
according to IEC 60068-2-2711 g / 15 ms
according to IEC 60068-2-610... 55 Hz: 0,35 mm
operating frequency maximum360 1/h
switching behaviormonostable
mechanical service life (operating cycles) typical10.000.000
thermal current of the switching element with contacts maximum5 A
reference code according to IEC 81346-2K
Substance Prohibitance (day/month/year)05/31/2018
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight0,124 kg
Product Function
suitability for operation device connector 3ZY12Var
Control circuit/ Control
control supply voltage at DC rated value24 V
initial value0,8
full-scale value1,2
at AC maximum15 ms
at DC maximum15 ms
OFF-delay time maximum40 ms
Switching Function

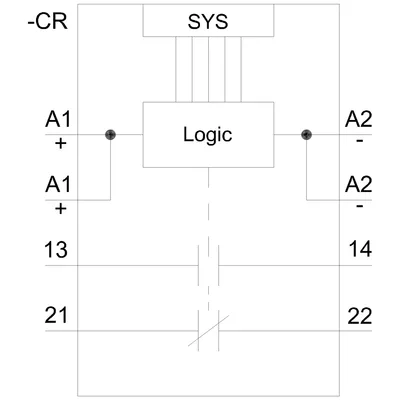

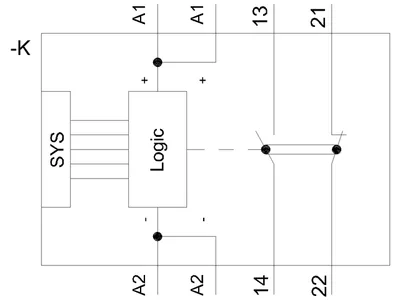

design of the switching functionNC contact ve NO contact
Mechanical data
product component plug-in socketYok
design of the relay operating mechanismpoled
Short-circuit protection
design of the fuse link for short-circuit protection of the auxiliary switch requiredNO: fuse gL/gG: 6 A; NC: fuse gL/gG: 4 A
Auxiliary circuit
material of switching contactsAgNi + Au flash
number of NC contacts for auxiliary contacts1
number of NO contacts for auxiliary contacts1
number of CO contacts for auxiliary contacts0
type of voltageDC
Inputs/ Outputs
output current minimum1 mA
at 250 V at 50/60 Hz2 A
at 24 V2 A
at 125 V0,2 A
at 250 V0,1 A
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1ambience A (industrial sector)
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
due to burst according to IEC 61000-4-42 kV
due to conductor-earth surge according to IEC 61000-4-52 kV (line to ground)
due to conductor-conductor surge according to IEC 61000-4-51 kV (line to line)
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharging, 8 kV air discharging
Display
product component LEDVar
Safety related data
positively driven operation according to IEC 60947-5-1Var
safety-related switching onYok
safety-related switching OFFVar
safe statesafe shutdown
test wear-related service life necessaryVar
stop category according to IEC 60204-10
MTTFd470 a
IEC 62061
according to IEC 62061SIL 2
ISO 13849
performance level (PL) according to ISO 13849-1PL c
category according to ISO 13849-11
device type according to ISO 13849-11
overdimensioning according to ISO 13849-2 necessaryYok
IEC 61508
Safety Integrity Level (SIL) according to IEC 61508SIL 2
safety device type according to IEC 61508-2Type A
PFHD with high demand rate according to IEC 615084E-7 1/h
PFDavg with low demand rate according to IEC 615080,002
Safe failure fraction (SFF)85 %
hardware fault tolerance according to IEC 615080
T1 value of service life according to IEC 6150820 a
Connections/ Terminals
product component removable terminal for auxiliary and control circuitVar
type of electrical connectionscrew terminal
solid1x (0,5... 4 mm²), 2x (0,5... 2,5 mm²)
finely stranded with core end processing1x (0,5... 4 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 12), 2x (20... 14)
solid0,5... 4 mm²
finely stranded with core end processing maximum4 mm²
finely stranded without core end processing minimum0,5 mm²
solid12... 20
stranded12... 20
tightening torque with screw-type terminals0,6... 0,8 N·m
stripped length of the cable for auxiliary and control contacts10 mm

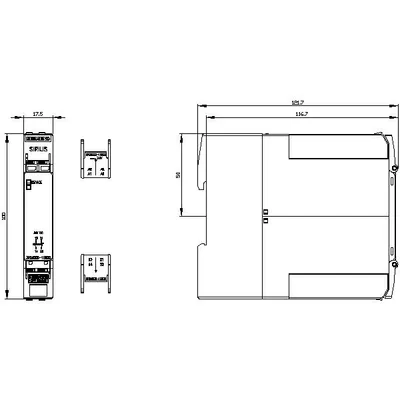

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting onto 35 mm DIN rail
height100 mm
width17,5 mm
depth120 mm
Ambient conditions
installation altitude at height above sea level maximum2.000 m
during operation-25... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
relative humidity during operation10... 95 %
Aksesuarlar 6
Siemens 3RQ1000-1EB00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RT2900-1SB10 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3ZY1311-0AA00 | Aksesuar · Further accessories | |
| 3ZY1122-1BA00 | Aksesuar · Removable terminals | |
| 3ZY1321-1AA00 | Aksesuar · Further accessories | |
| 3ZY1212-1BA00 | Aksesuar · Device connector | |
| 3ZY1450-1BA00 | Yedek parça · Further accessories |
