Siemens 3RQ1000-2HB00 için nasıl fiyat teklifi alabilirim?

Siemens 3RQ1000-2HB00 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLSKZYY0WOBGNSW ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3RQ1000-2HB00 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3RQ1000-2HB00 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3RQ1000-2HB00 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

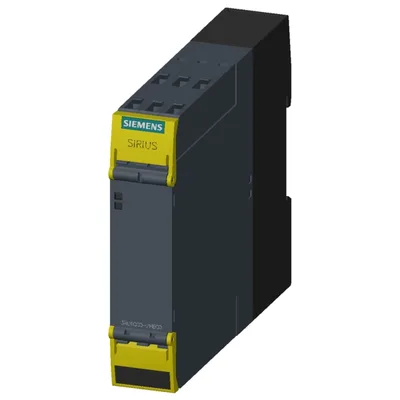

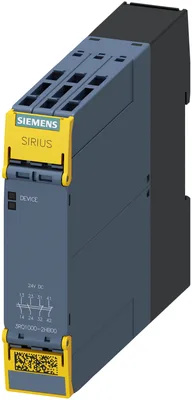

Siemens 3RQ1000-2HB00

Positively driven kaplin röle in industrial muhafaza 2 NO contacts / 2 NC contacts 24 V DC SIL 2 / PL c spring-type klemens (push-in)

SiemensMFR # 3RQ1000-2HB00SKU # YLSKZYY0WOBGNSW

product brand nameSIRIUS

product designationforce-guided coupling relay

design of the productfail-safe up to SIL 2/PL c

product type designation3RQ1

consumed active power1,3 W

degree of pollution3

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Positively driven kaplin röle in industrial muhafaza 2 NO contacts / 2 NC contacts 24 V DC SIL 2 / PL c spring-type klemens (push-in)

Siemens 3RQ1000-2HB00

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product designationforce-guided coupling relay

design of the productfail-safe up to SIL 2/PL c

product type designation3RQ1

General technical data

product feature protective coating on printed-circuit boardYok

consumed active power1,3 W

insulation voltage for overvoltage category III according to IEC 60664 with degree of pollution 3 rated value300 V

degree of pollution3

surge voltage resistance rated value4 kV

according to IEC 60068-2-2711 g / 15 ms

according to IEC 60068-2-610... 55 Hz: 0,35 mm

operating frequency maximum360 1/h

switching behaviormonostable

mechanical service life (operating cycles) typical10.000.000

thermal current of the switching element with contacts maximum5 A

reference code according to IEC 81346-2K

Substance Prohibitance (day/month/year)05/31/2018

SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-Yok. 80-05-7

Net Weight0,164 kg

Product Function

suitability for operation device connector 3ZY12Var

Control circuit/ Control

control supply voltage at DC rated value24 V

initial value0,8

full-scale value1,2

at AC maximum15 ms

at DC maximum15 ms

OFF-delay time maximum35 ms

Switching Function

design of the switching functionNC contact ve NO contact

Mechanical data

product component plug-in socketYok

design of the relay operating mechanismpoled

Short-circuit protection

design of the fuse link for short-circuit protection of the auxiliary switch requiredfuse gL/gG: 6 A

Auxiliary circuit

material of switching contactsAgSnO2 + Au flash

number of NC contacts for auxiliary contacts2

number of NO contacts for auxiliary contacts2

number of CO contacts for auxiliary contacts0

type of voltageDC

Inputs/ Outputs

output current minimum10 mA

at 250 V at 50/60 Hz1,5 A

at 24 V1 A

at 125 V0,2 A

at 250 V0,1 A

Electromagnetic compatibility

EMC emitted interference according to IEC 60947-1ambience A (industrial sector)

EMC immunity according to IEC 60947-1corresponds to degree of severity 3

due to burst according to IEC 61000-4-42 kV

due to conductor-earth surge according to IEC 61000-4-52 kV (line to ground)

due to conductor-conductor surge according to IEC 61000-4-51 kV (line to line)

field-based interference according to IEC 61000-4-310 V/m

electrostatic discharge according to IEC 61000-4-24 kV contact discharging, 8 kV air discharging

Display

product component LEDVar

Safety related data

positively driven operation according to IEC 60947-5-1Var

safety-related switching onYok

safety-related switching OFFVar

safe statesafe shutdown

test wear-related service life necessaryVar

stop category according to IEC 60204-10

MTTFd470 a

IEC 62061

according to IEC 62061SIL 2

ISO 13849

performance level (PL) according to ISO 13849-1PL c

category according to ISO 13849-11

device type according to ISO 13849-11

overdimensioning according to ISO 13849-2 necessaryYok

IEC 61508

Safety Integrity Level (SIL) according to IEC 61508SIL 2

safety device type according to IEC 61508-2Type A

PFHD with high demand rate according to IEC 615086E-7 1/h

PFDavg with low demand rate according to IEC 615080,002

Safe failure fraction (SFF)85 %

hardware fault tolerance according to IEC 615080

T1 value of service life according to IEC 6150820 a

Connections/ Terminals

product component removable terminal for auxiliary and control circuitVar

type of electrical connectionspring-loaded terminal (push-in)

solid1x (0,5... 4 mm²)

finely stranded with core end processing1x (0,5... 2,5 mm²)

for AWG cables solid1x (20... 12)

solid0,5... 4 mm²

finely stranded with core end processing maximum2,5 mm²

finely stranded without core end processing minimum0,5 mm²

solid12... 20

stranded12... 20

stripped length of the cable for auxiliary and control contacts10 mm

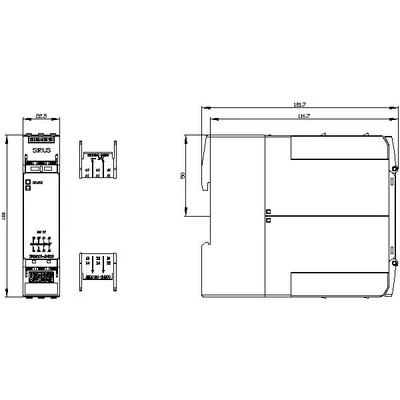

Installation/ mounting/ dimensions

mounting positionany

fastening methodscrew ve snap-on mounting onto 35 mm DIN rail

height100 mm

width22,5 mm

depth120 mm

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation-25... +60 °C

during storage-40... +80 °C

during transport-40... +80 °C

relative humidity during operation10... 95 %

Aksesuarlar 12

Siemens 3RQ1000-2HB00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RA2908-1A	Aksesuar · Miscellaneous accessories · screwdrivers
3ZY1212-2GA00	Aksesuar · Device connector
3ZY1210-2AA00	Aksesuar · Device connector
3ZY1212-2DA00	Aksesuar · Device connector
3ZY1212-2BA00	Aksesuar · Device connector
3ZY1122-2BA00	Aksesuar · Removable terminals
3ZY1321-2AA00	Aksesuar · Further accessories
3ZY1212-2FA00	Aksesuar · Device connector
3ZY1212-2EA00	Aksesuar · Device connector
3ZY1212-2AB00	Aksesuar · Device connector
3ZY1311-0AA00	Aksesuar · Further accessories
3ZY1450-1BB00	Yedek parça · Further accessories
