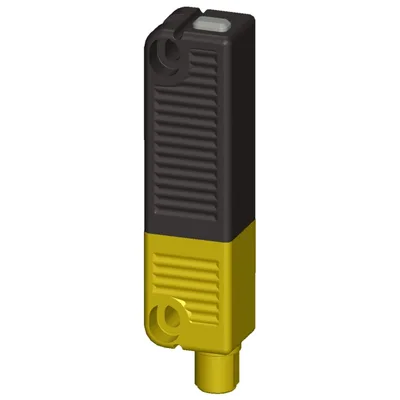

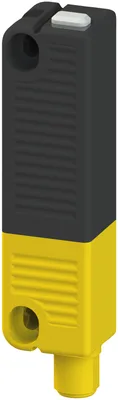

Siemens 3SE6315-1BB02-1AP0
contact-free safety switch RFID rectangular 106 mm x 25 mm individually encoded, multiple teach-in capability, with M12 plug 8-pole and magnet latching 18 N, order actuator separately: 3SE6310-1BC01
product brand nameSIRIUS
product designationRFID safety switch
design of the productRectangular sensor unit
product type designation3SE63
positive openingYok
cross-circuit/short-circuit recognitionVar
Ürün Hakkında
contact-free safety switch RFID rectangular 106 mm x 25 mm individually encoded, multiple teach-in capability, with M12 plug 8-pole and magnet latching 18 N, order actuator separately: 3SE6310-1BC01
Siemens 3SE6315-1BB02-1AP0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product designationRFID safety switch
design of the productRectangular sensor unit
product type designation3SE63
suitability for use safety-related circuitsVar
General technical data
positive openingYok
cross-circuit/short-circuit recognitionVar
product featureindividually coded, learnable multiple times, with magnet latching
type of voltage of the operating voltageDC
protection class IPIP65, IP67, IP69k
shock resistance according to IEC 60068-2-27Sinusoidal half-wave 30 g / 11 ms
vibration resistance according to IEC 60068-2-610... 55 Hz: 1 mm
Substance Prohibitance (day/month/year)07/01/2006
Net Weight0,11 kg

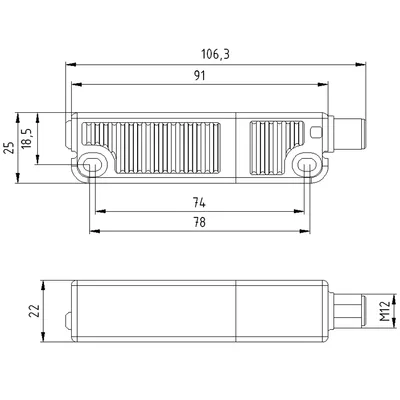

height of the sensor22 mm
length of the sensor106 mm
width of the sensor25 mm
material of the active sensor areaplastic
Ambient conditions
ambient temperature during operation-25... +70 °C
Control circuit/ Control
type of voltageDC
operating voltage rated value24 V
operational current rated value600 mA
Enclosure
material of the enclosureplastic
material of cable sheathPVC
Actuator
design of the actuating elementRFID
Display
evaluation unit requiredyes
Contact
switching frequency1 Hz
operating distance12 mm
assured operating distance OFF16 mm
assured operating distance ON10 mm
design of the switching functionpositive switching
safety-related1
Installation/ mounting/ dimensions
fastening methodscrew fixing
Connections/ Terminals

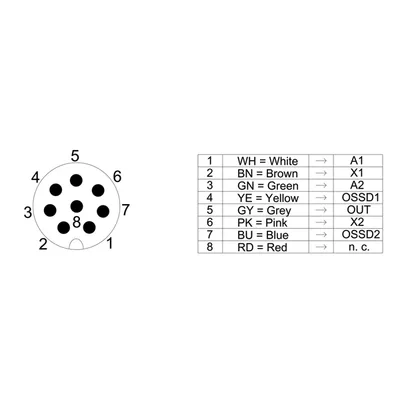

type of electrical connectionM12 plug, 8-pole
wire length maximum30 m
Besleme gerilimi
supply voltage26,4... 20,4 V
Inputs/ Outputs
output current minimum0,5 A
output current at safety-related output maximum0,25 A
design of the interface for safety-related communicationconnector M12
transmission frequency rated value125 kHz
Safety related data
category according to EN 954-14
ISO 13849
performance level (PL) according to EN ISO 13849-1e
IEC 61508
Safety Integrity Level (SIL) according to IEC 615083
Aksesuarlar 8
Siemens 3SE6315-1BB02-1AP0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3SX5601-2GA10 | Aksesuar | |
| 3SX5601-2GA03 | Aksesuar | |
| 3SX5601-2GA05 | Aksesuar | |
| 3SX5600-1G | Aksesuar | |
| 3SX5601-3SV00-1AK3 | Aksesuar | |
| 6GT2090-0BE00 | Aksesuar | |
| 3SX5601-2GA15 | Aksesuar | |
| 3SE6310-1BC01 | Zorunlu ek ürün · Non-contact safety switch |
