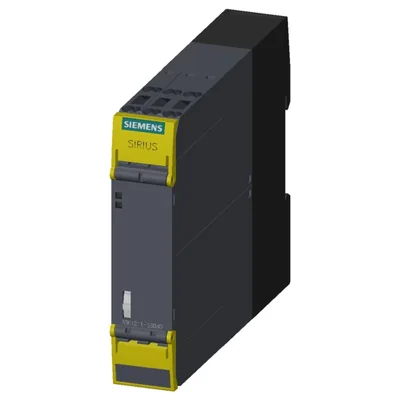

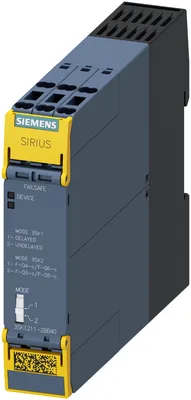

Siemens 3SK1211-2BB40

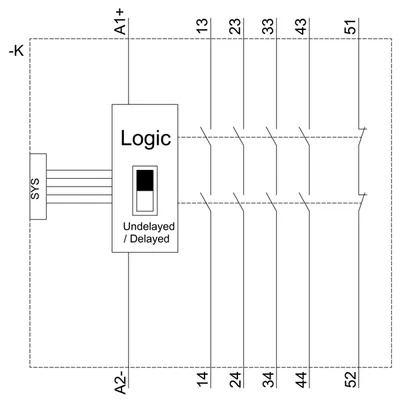

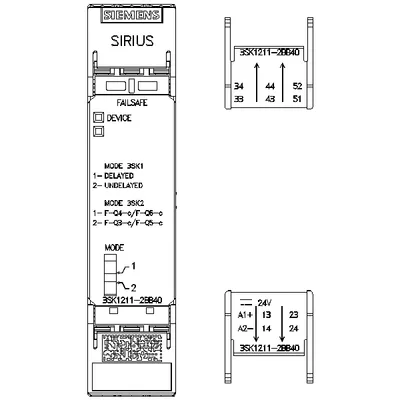

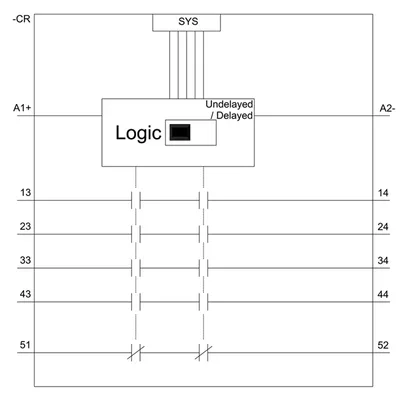

SIRIUS safety relay Output expansion 4RO with relay enabling circuits 4 NO contacts plus Relay signaling circuit 1 NC contact Us = 24 V DC Spring-type terminal (push-in)
product brand nameSIRIUS
product categorySafety relays
product designationOutput expansion
design of the productRelay enabling circuits
product type designation3SK1
safety-related circuitsVar
Ürün Hakkında
SIRIUS safety relay Output expansion 4RO with relay enabling circuits 4 NO contacts plus Relay signaling circuit 1 NC contact Us = 24 V DC Spring-type terminal (push-in)
Siemens 3SK1211-2BB40
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categorySafety relays
product designationOutput expansion
design of the productRelay enabling circuits
product type designation3SK1
Product Function
product function parameterizableundelayed/delayed (yalnızca şununla: system connector)
safety-related circuitsVar
General technical data
certificate of suitability UL approvalVar
product feature protective coating on printed-circuit boardYok
power loss [W] maximum2,5 W
insulation voltage rated value300 V
degree of pollution3
overvoltage category3
surge voltage resistance rated value4.000 V
protection class IP of the enclosureIP20
shock resistance10 g / 11 ms
vibration resistance according to IEC 60068-2-65... 500 Hz: 0,75 mm
operating frequency maximum360 1/h
reference code according to IEC 81346-2F
Substance Prohibitance (day/month/year)11/05/2012
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-Yok. 80-05-7
Net Weight0,189 kg
Ambient conditions
installation altitude at height above sea level maximum4.000 m
noteDerating, see Product Notification 109792701
during operation-25... +60 °C
during storage-40... +80 °C
relative humidity during operation10... 95 %
air pressure according to SN 31205900... 1.060 hPa
Electromagnetic compatibility
installation environment regarding EMCThis product is suitable for Class B environments ve can also be used in domestic environments.
EMC emitted interferenceIEC 60947-5-1, Class B
Safety related data
product function suitable for safety functionVar
safe stateSafety outputs switched off
test wear-related service life necessaryVar
function test interval maximum1 a
stop category according to IEC 60204-10
proportion of dangerous failures with low demand rate according to SN 3192015 %
failure rate [FIT] with low demand rate according to SN 31920130 FIT
IEC 62061
SIL Claim Limit (subsystem) according to EN 620613
according to IEC 62061SIL 3
1.7E-9 1/h
0,0000000017 1/h
ISO 13849
category according to EN ISO 13849-14
according to ISO 13849-1PL e
according to ISO 13849-14
device type according to ISO 13849-11
overdimensioning according to ISO 13849-2 necessaryYok
IEC 61508
according to IEC 615083
safety device type according to IEC 61508-2Type A
PFHD with high demand rate according to IEC 615081.7E-9 1/h
PFHD with high demand rate according to IEC 615080,0000000017 1/h
1E-6
0,000001
Safe failure fraction (SFF)99 %
according to IEC 615081
of service life according to IEC 6150820 a
for proof test interval or service life according to IEC 6150820 a
Electrical Safety
touch protection against electrical shockfinger-safe
Short-circuit protection
design of the fuse link for short-circuit protection of the NO contacts of the relay outputs requiredgL/gG: 6A veya circuit breaker type A: 3A veya circuit breaker type B: 2A veya circuit breaker type C: 1A
Inputs
feedback inputYok
Outputs
— for signaling function delayed switching0
— safety-related instantaneous contact0
— safety-related delayed switching0
— for signaling function instantaneous contact0
— for signaling function delayed switching0
— safety-related instantaneous contact4
— safety-related delayed switching0
mechanical service life (operating cycles) typical10.000.000
thermal current of the switching element with contacts maximum5 A
— delayed switching0
at 24 V5 A
at 115 V0,2 A
at 230 V0,1 A
at 24 V5 A
at 115 V5 A
at 230 V5 A
total current maximum12 A
operational current at 17 V minimum5 mA
Times
typical15 ms
at DC maximum30 ms
typical15 ms
maximum30 ms
typical10 ms
maximum15 ms
recovery time after power failure typical0,015 s
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC rated value24 V
initial value0,8
full-scale value1,2
at DC maximum30 ms
OFF-delay time maximum15 ms

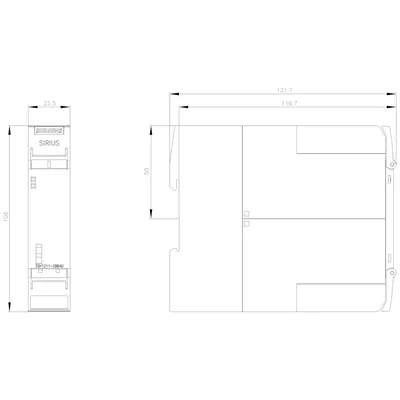

Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew ve snap-on mounting
height100 mm
width22,5 mm
depth121,6 mm
with side-by-side mounting at the side0 mm
for grounded parts at the side5 mm
Connections/ Terminals
type of electrical connectionspring-loaded terminal (push-in)
solid1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
finely stranded with core end processing1x (0,5... 1,0 mm²), 2x (0,5... 1,0 mm²)
finely stranded without core end processing1x (0,5... 1,5 mm²), 2x (0,5... 1,5 mm²)
for AWG cables solid1x (20... 16), 2x (20... 16)
for AWG cables stranded1x (20... 16), 2x (20... 16)
type of electrical connection plug-in socketYok
Aksesuarlar 9
Siemens 3SK1211-2BB40 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3ZY1212-2DA00 | Aksesuar · Device connector | |
| 3RA2908-1A | Aksesuar · Miscellaneous accessories · screwdrivers | |
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3ZY1311-0AA00 | Aksesuar · Further accessories | |
| 3ZY1212-2AB00 | Aksesuar · Device connector | |
| 3ZY1321-2AA00 | Aksesuar · Further accessories | |
| 3ZY1440-1AA00 | Aksesuar · Further accessories | |
| 3ZY1121-2BA00 | Yedek parça · Removable terminals | |
| 3ZY1450-1BB00 | Yedek parça · Further accessories |
