Siemens 3SE6415-1CB01 için nasıl fiyat teklifi alabilirim?

Siemens 3SE6415-1CB01 için Yılsa Mühendislik üzerinden hızlı fiyat teklifi alabilirsiniz. Ürün kodu YLS6UZTKHPW6V9 ile iletişim sayfasından veya teklif formundan talep oluşturun; ekibimiz kısa sürede fiyat ve temin süresi ile döner.

Siemens 3SE6415-1CB01 stokta mı, teslim süresi ne kadar?

Yılsa Mühendislik ürünleri geniş tedarikçi ağından orijinal olarak temin eder. Tipik temin süresi 7-21 gün, Türkiye içi kargo 1-3 iş günüdür. Güncel durum için teklif talebinde belirtilir.

Siemens 3SE6415-1CB01 orijinal ve yeni mi?

Evet. Siemens markalı bu ürün orijinal ve sıfır (yeni) olarak tedarik edilir; Yılsa Mühendislik güvencesiyle faturalı satılır.

Siemens 3SE6415-1CB01 teknik özelliklerine ve datasheet'ine nasıl ulaşırım?

Temel teknik özellikler ürün sayfasında listelenir. Detaylı datasheet, boyut ve uygunluk bilgisi için Yılsa Mühendislik ile iletişime geçmeniz yeterlidir.

Yakınlaştırmak için tıklayın

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

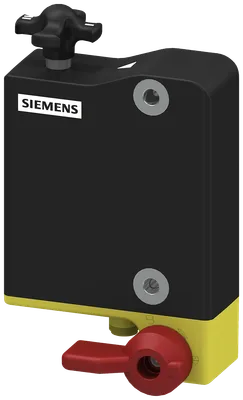

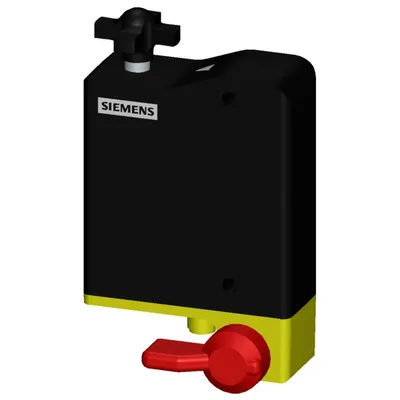

Siemens 3SE6415-1CB01

RFID safety switch with tumbler, plastic, with escape release, red levers mountable on two sides, quiescent current principle, tumbler monitoring, 24 V DC, IP69, locking force 1150 N, family-encoded, diagnostics output, M12 plug 8-pole, 3 LEDs for display of the operating states, 3 directions of actuation, latching force with turnstile adjustable: 25 N or 50 N, hygienic design, actuator 3SE6410-1AC01 to be ordered separately

SiemensMFR # 3SE6415-1CB01SKU # YLS6UZTKHPW6V9

product brand nameSIRIUS

product categoryNon-contact safety switch

product designationRFID safety switch with tumbler

design of the productrectangular sensor unit

product type designation3SE64

positive openingYok

Paylaş

Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

Siemens 3SE6415-1CB01

Orijinal ve sertifikalı Siemens ürünü
Dünya genelinde tedarik ağıyla hızlı temin
Teknik ekibimizden ürün seçimi ve uyumluluk desteği
Muadil ve alternatif ürün önerisi
Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIRIUS

product categoryNon-contact safety switch

product designationRFID safety switch with tumbler

design of the productrectangular sensor unit

product type designation3SE64

Product Function

positive openingYok

control function for downstream devicesYok

cross-circuit/short-circuit recognitionVar

suitability for use safety-related circuitsVar

General technical data

product featurefamily-coded, catch 25N/50N

product feature suitable for series connectionVar

locking force1.500 N

according to EN ISO 141191.150 N

design of the RFID codinguniversal coding

insulation voltage rated value32 V

degree of pollution according to EN 60664-13

overvoltage categoryClass III

surge voltage resistance rated value0,8 kV

no-load current rated value100 mA

protection class IPIP66 in accordance with EN 60529 IP67 in accordance with EN 60529 IP69 in accordance with EN 60529

according to IEC 60068-2-2730 g / 11 ms

vibration resistance according to IEC 60068-2-610... 150 Hz, amplitude 0,35 mm

switching frequency0,5 Hz

mechanical service life (operating cycles) typical1.000.000

noteşu şekilde kullanıldığında: door stop: ≥ 50,000 switching cycles (door masses ≤ 5 kg ve actuating speed ≤ 0,5 m/s)

relative ON period [%] of magnet coil100 %

reference code according to IEC 81346-2B

Substance Prohibitance (day/month/year)07/01/2006

Net Weight0,63 kg

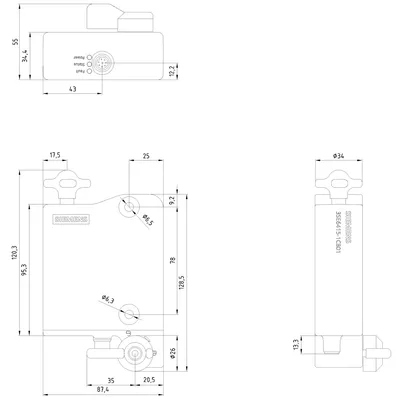

Sensor

height of the sensor55 mm

length of the sensor146 mm

width of the sensor87,5 mm

Ambient conditions

installation altitude at height above sea level maximum2.000 m

during operation0... 60 °C

during storage and transport-10... +90 °C

operating resource protection class according to IEC 61140III

relative humidity during operation maximum93 %

notenon-condensing, non-icing

Control circuit/ Control

current consumption of magnet coil rated value100 mA

pickup current peak of magnet coil250 mA

duration of pickup current peak200 ms

Main circuit

operating voltage rated value24 V

operational current rated value250 mA

Enclosure

design of the housingspecial design

material of the enclosureplastic, fiberglass reinforced thermoplast, self-extinguishing

Actuator

Product equipment auxiliary release of guard lockingVar

product feature latchingVar

locking mechanism designquiescent current principle

detent force adjustable 125 N

detent force adjustable 250 N

angular offset between guard locking and actuator maximum2°

Display

product function status displayVar

display version as status display by LED3 LEDs

Contact

circuit principlespring-actuated lock (closed-circuit principle)

operating distance2 mm

assured operating distance OFF20 mm

assured operating distance ON1 mm

Installation/ mounting/ dimensions

fastening methodscrew fixing

design of the thread of the screw for securing the equipment2x M6

tightening torque of fixing screw minimum6 N·m

tightening torque of fixing screw maximum7 N·m

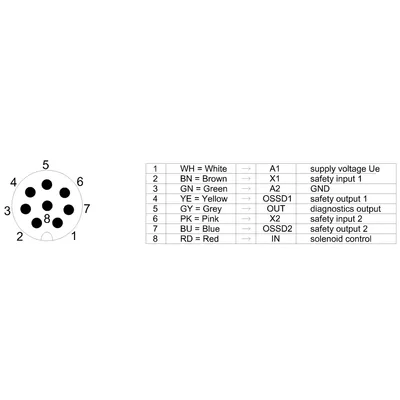

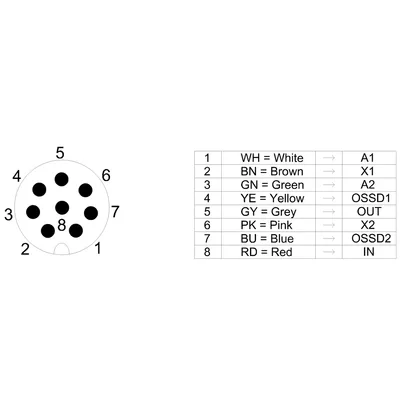

Connections/ Terminals

type of electrical connectionM12 plug, 8-pole, A-coded

wire length maximum200 m

of socket 1 at PIN 1A1 supply voltage Ub

of socket 1 at PIN 2X1 safety input 1

of socket 1 at PIN 3A2 GND

of socket 1 at PIN 4OSSD1 safety output 1

of socket 1 at PIN 5OUT diagnostic output

of the bushing 1 at PIN 6X2 safety input 2

of the bushing 1 at PIN 7OSSD2 safety output 2

of the bushing 1 at PIN 8IN magnet controller

Besleme gerilimi

type of voltage of the supply voltageDC

supply voltage rated value24 V

supply voltage26,4... 20,4 V

fuse protection type for external auxiliary power supply required2 A gG

Inputs/ Outputs

for signal <0> at DC-3... +5 V

for signal <1> at DC15... 30 V

input current at digital input for signal <1> typical10 mA

input current at safety-related digital input for signal <1> typical5 mA

for signaling function1

safety-related2

design of the contactless switching element safety-relatedshort-circuit proof, sourcing output

type of diagnostic outputshort-circuit proof, sourcing output

dark period at safety-related digital output maximum0,5 ms

at digital input maximum5 ms

at safety-related digital input maximum1 ms

at digital input minimum40 ms

at safety-related digital input minimum100 ms

at safety-related digital output maximum1.000 ms

residual current at digital output with signal <0> maximum0,5 mA

at safety-related output maximum2 V

at diagnostic output maximum2 V

output current minimum0,5 mA

output current at safety-related output maximum0,25 A

output current at diagnostic output maximum0,05 A

Communication/ Protocol

design of the interface for safety-related communicationconnector M12

transmission frequency rated value125 kHz

Safety related data

product function suitable for safety functionVar

category according to EN 954-14

IEC 62061

for position monitoring according to IEC 620613

for guard locking according to IEC 620612

for position monitoring according to IEC 620615.2E-9 1/h

for guard locking according to IEC 620612E-9 1/h

ISO 13849

performance level (PL) according to EN ISO 13849-1e

category according to EN ISO 13849-14

for position monitoring according to ISO 13849-1e

for guard locking according to ISO 13849-1d

for position monitoring according to ISO 13849-14

for guard locking according to ISO 13849-12

IEC 61508

Safety Integrity Level (SIL) according to IEC 615083

for position monitoring according to IEC 620614.5E-4

for guard locking according to IEC 620610,0018

for position monitoring according to IEC 6150820 a

for guard locking according to IEC 6150820 a

type of monitoringguard locking

response delay maximum5.000 ms

when switched off via control inputs maximum1,5 ms

for safety-related shutdown via actuator maximum100 ms

conditional short-circuit current (Iq) at 400 V according to IEC 60947-4-1 rated value100 A

Aksesuarlar 14

Siemens 3SE6415-1CB01 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.

Parça no	Açıklama	Uyumlu motor
3RK1902-4BA00-5AA0	Aksesuar
3RK1902-4DA00-5AA0	Aksesuar
3SX5601-2GA10	Aksesuar
3SX5601-2GA03	Aksesuar
3SX5601-2GA05	Aksesuar
3SX5601-3SV18	Aksesuar
6GT2090-0BE00	Aksesuar
3SX5600-1F	Aksesuar
3SX5600-2F	Aksesuar
3SX5600-3F	Aksesuar
3SX5600-4F	Aksesuar
3SX5601-2GA15	Aksesuar
3SX5601-3SY00-1AK4	Aksesuar
3SE6410-1AC01	Seçmeli zorunlu ürün
