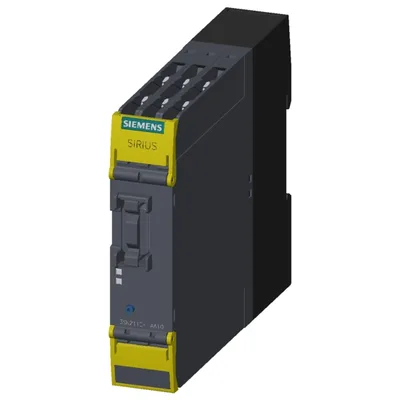

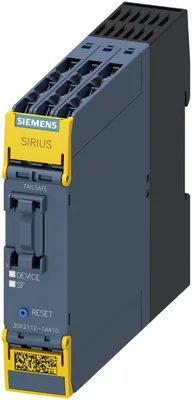

Siemens 3SK2112-1AA10
SIRIUS safety röle temel ünite 3SK2 series 10 F-DI, 2 F-DQ, 1 DQ, 24 V DC Can be parameterized via SIRIUS Safety ES 22,5 mm overall genişlik vidalı klemens en çok SIL 3 (IEC 62061) en çok performance level e (ISO 13849-1) çıkış expansions 3SK1, kaplin röle 3RQ1 ve fail-safe motor starters 3RM1 via cihaz konnektör connectable
product brand nameSIRIUS
product categorySafety relay
product designationBase-Unit
design of the product10 F-DI, 2 F-DQ, 1 DQ
monitoring of floating sensorsVar
monitoring of non-floating sensorsVar
Ürün Hakkında
SIRIUS safety röle temel ünite 3SK2 series 10 F-DI, 2 F-DQ, 1 DQ, 24 V DC Can be parameterized via SIRIUS Safety ES 22,5 mm overall genişlik vidalı klemens en çok SIL 3 (IEC 62061) en çok performance level e (ISO 13849-1) çıkış expansions 3SK1, kaplin röle 3RQ1 ve fail-safe motor starters 3RM1 via cihaz konnektör connectable
Siemens 3SK2112-1AA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIRIUS
product categorySafety relay
product designationBase-Unit
design of the product10 F-DI, 2 F-DQ, 1 DQ
suitability for use for monitoring of optoelectronic protective devices according to IEC 61496-1Var
monitoring of floating sensorsVar
monitoring of non-floating sensorsVar
position switch monitoringVar
EMERGENCY-OFF circuit monitoringVar
valve monitoringVar
opto-electronic protection device monitoringVar
magnetically operated switch monitoringVar
proximity switch monitoringVar
safety-related circuitsVar
General technical data
EMERGENCY STOP functionVar
protective door monitoringVar
protective door monitoring with tumblerVar
muting, 2 sensor-parallelVar
muting, 4 sensor-parallelVar
muting, 4 sensor-sequentialVar
monitoring parameterizableVar
evaluation: electro-sensitive protective equipmentVar
evaluation: selector switchVar
pressure-sensitive mat monitoringVar
evaluation: two-hand operator panelVar
evaluation: enabling switchVar
monitored start-upVar
two-hand control according to EN 574Var
configuration software requiredVar; Safety ES V1.0 ve üstü
number of function blocks typical50
insulation voltage rated value50 V
degree of pollution3
surge voltage resistance rated value800 V
of the enclosureIP20
of the terminalIP20
shock resistance15 g / 11 ms
vibration resistance according to IEC 60068-2-65... 500 Hz: 0,75 mm
operating frequency maximum2.000 1/h
reference code according to IEC 81346-2F
Substance Prohibitance (day/month/year)05/28/2009
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 2-methyl-1-(4-methylthiophenyl)-2-morpholinopropan-1-one CAS-Yok. 71868-10-5 Melamine CAS-Yok. 108-78-1
Net Weight0,192 kg
product function suitable for AS-i Power24VYok
product function diagnostics with CTT2 deviceYok
Ambient conditions
installation altitude at height above sea level maximum4.000 m
during operation-25... +60 °C
during storage-40... +80 °C
during transport-40... +80 °C
relative humidity during operation10... 95 %
air pressure according to SN 3120590... 106 kPa
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
due to burst according to IEC 61000-4-42 kV (power ports) / 1 kV (signal ports)
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-24 kV contact discharge / 8 kV air discharge
Safety related data
test wear-related service life necessaryYok
diagnostics test interval by internal test function maximum1.000 s
stop category according to IEC 60204-10 / 1
IEC 62061
SIL Claim Limit (subsystem) according to EN 620613
according to IEC 62061SIL 3
at single-channel evaluation according to IEC 620611
at 2-channel evaluation according to IEC 620613
according to IEC 620611E-8 1/h
ISO 13849
performance level (PL) according to EN ISO 13849-1e
category according to EN ISO 13849-14
according to ISO 13849-1PL e
at single-channel evaluation according to ISO 13849-1c
at 2-channel evaluation according to ISO 13849-1e
according to ISO 13849-14
at 2-channel evaluation according to ISO 13849-14
device type according to ISO 13849-11
overdimensioning according to ISO 13849-2 necessaryYok
IEC 61508
according to IEC 615083
at single-channel evaluation according to IEC 615081
at 2-channel evaluation according to IEC 615083
PFHD with high demand rate according to IEC 615081E-8 1/h
PFDavg with low demand rate according to IEC 615081.5E-5
Safe failure fraction (SFF)99 %
according to IEC 615081
at single-channel evaluation according to IEC 615080
at 2-channel evaluation according to IEC 615081
of service life according to IEC 6150820 a
for proof test interval or service life according to IEC 6150820 a
Electrical Safety
touch protection against electrical shockfinger-safe
Inputs/ Outputs
parameterizable inputsVar
parameterizable outputsVar
at the digital outputs short-circuit protectionVar
safety-related10
non-safety-related0
input delay time0... 150 ms
type of digital inputs according to IEC 60947-1Type 1
ingress aquisition time at digital input maximum60 ms
input delay time at digital input maximum150 ms
input voltage at digital input at DC rated value24 V
for signal <1> typical2,6 mA
safety-related 2-channel2
for testing contact-based sensors2
1-channel0
2-channel0
safety-related 2-channel2
non-safety-related1
design of the contactless switching element safety-relatedP potential
recovery time of the safe outputs0 ms
readback time maximum400 ms
light test period3 ms
dark period of the common drivers3 ms
switching capacity current of semiconductor outputs at DC-13 at 24 V4 A
maximum0,1 mA
at digital output with signal <0> maximum0,1 mA
total current maximum6,5 A
voltage drop maximum0,5 V
— shielded maximum1.000 m
— unshielded maximum600 m
— shielded maximum1.000 m
— unshielded maximum600 m
Communication/ Protocol
PROFIBUS DP protocolVar; when using the DP interface module; 64 bit cyclical data
PROFINET IO protocolVar; when using the PN interface module; 64-bit cyclic data
protocol is supported AS-Interface protocolYok
Control circuit/ Control
type of voltageDC
control supply voltage rated value24 V
initial value0,85
full-scale value1,2
at 24 V10 A
at 24 V1 ms
operating power rated value2,5 W

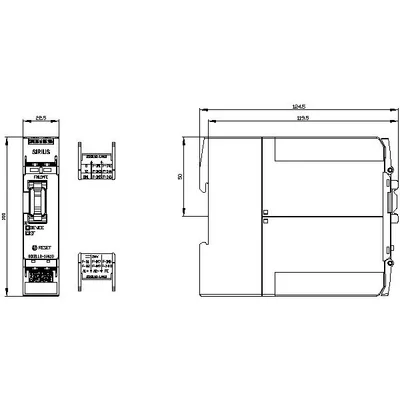

Installation/ mounting/ dimensions
mounting positionany
fastening methodSnap-mounted to DIN rail veya screw-mounted with additional push-in lug
height100 mm
width22,5 mm
depth124,5 mm
Connections/ Terminals
product function removable terminalVar
type of electrical connectionscrew terminal
solid1x (0,5... 2,5 mm²), 2x (1,0... 1,5 mm²)
finely stranded with core end processing1x (0,5... 2,5 mm²), 2x (0,5... 1,0 mm²)
for AWG cables solid1x (20... 14), 2x (18... 16)
for AWG cables stranded1x (20... 14), 2x (18... 16)
connectable conductor cross-section finely stranded with core end processing0,5... 2,5 mm²
solid20... 14
stranded20... 14
Aksesuarlar 74
Siemens 3SK2112-1AA10 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 3RT2900-1SB20 | Aksesuar · Miscellaneous accessories · labeling plates | |
| 3RQ1200-2EB00 | Aksesuar | |
| 3RQ1200-1EB00 | Aksesuar | |
| 3RQ1000-2HB00 | Aksesuar | |
| 3RM1301-3AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1301-2AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1301-1AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1107-3AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1107-2AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1107-1AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1102-3AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1102-2AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1102-1AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1101-3AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1101-2AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1101-1AA04 | Aksesuar · Motor starter · motor starter | |
| 3ZY1311-0AA00 | Aksesuar · Further accessories | |
| 3SK2511-1FA10 | Aksesuar · Safety relay | |
| 3ZY1212-2GA00 | Aksesuar · Device connector | |
| 3RM1302-1AA04 | Aksesuar · Motor starter · motor starter | |
| 3RQ1000-2LB00 | Aksesuar | |
| 3RM1302-2AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1307-1AA04 | Aksesuar · Motor starter · motor starter | |
| 3RQ1000-2GB00 | Aksesuar | |
| 3RQ1000-2EB00 | Aksesuar | |
| 3RQ1000-1LB00 | Aksesuar | |
| 3RQ1000-1HB00 | Aksesuar | |
| 3RQ1000-1GB00 | Aksesuar | |
| 3RQ1000-1EB00 | Aksesuar | |
| 3SK1213-2AB40 | Aksesuar · Safety relays | |
| 3SK1213-1AB40 | Aksesuar · Safety relays | |
| 3SK1211-2BB40 | Aksesuar · Safety relays | |
| 3SK1211-1BB40 | Aksesuar · Safety relays | |
| 3ZY1440-1AA00 | Aksesuar · Further accessories | |
| 3RM1307-3AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1307-2AA04 | Aksesuar · Motor starter · motor starter | |
| 3RM1302-3AA04 | Aksesuar · Motor starter · motor starter | |
| 3UF7920-0AA00-0 | Aksesuar · Door adapter | |
| 3SK2611-3AA00 | Aksesuar · Safety relay | |
| 3RA6936-0B | Yedek parça · Further accessories | |
| 3SU1853-3NB00-1AA1 | Uyumlu ürün · Commanding and signaling devices | |
| 3SU1801-0NB00-2AC2 | Uyumlu ürün · Commanding and signaling devices | |
| 3SU1150-0AB50-1BA0 | Uyumlu ürün · Commanding and signaling devices | |
| 3RT2028-2DB40 | Uyumlu ürün | |
| 3RT1076-6SP36 | Uyumlu ürün | |
| 3RT1066-6SP36 | Uyumlu ürün | |
| 3RT1056-6SP36 | Uyumlu ürün | |
| 3RT2038-3KB40 | Uyumlu ürün | |
| 3RT2017-2KB42 | Uyumlu ürün | |
| 3RK1308-0DE00-0CP0 | Uyumlu ürün · Motor starter | |
| 3SU1152-1HB20-3PF0 | Uyumlu ürün · Commanding and signaling devices | |
| 3SU1150-1GB20-3PW0 | Uyumlu ürün · Commanding and signaling devices | |
| 3SU1100-1HB20-1PA0 | Uyumlu ürün · Commanding and signaling devices | |
| 3SE5232-0QV40 | Uyumlu ürün | |
| 3SE2243-0XX | Uyumlu ürün | |
| 3SE5132-0LU22 | Uyumlu ürün | |
| 3SE6315-1BB02-1AP0 | Uyumlu ürün · Non-contact safety switch | |
| 8WD4615-5JH37 | Uyumlu ürün | |
| 3SE6415-1CB01 | Uyumlu ürün · Non-contact safety switch | |
| 3RT2047-3SB30 | Uyumlu ürün | |
| 3RT2038-3SB30 | Uyumlu ürün | |
| 3RW5527-3HF04 | Uyumlu ürün · Hybrid switching devices | |
| 8WD4423-5AK05-0AF0 | Uyumlu ürün · Signaling columns | |
| 3SU1801-0NB00-2AA2 | Uyumlu ürün · Commanding and signaling devices | |
| 3SE7150-1BH04 | Uyumlu ürün | |
| 3SE6605-3BA10 | Uyumlu ürün · Non-contact safety switch | |
| 3SE6605-1BA | Uyumlu ürün · Non-contact safety switch | |
| 3SE6604-2BA01 | Uyumlu ürün · Non-contact safety switch | |
| 3SE5322-0SH21 | Uyumlu ürün | |
| 3SE5232-0HK15 | Uyumlu ürün | |
| 3SE2924-3AA20 | Uyumlu ürün | |
| 3UF7941-0AA00-0 | Seçmeli zorunlu ürün · Connecting cable | |
| 3ZS1326-2CC12-0YA5 | Seçmeli zorunlu ürün | |
| 3ZS1326-2CC12-0YE5 | Seçmeli zorunlu ürün |
İlgili Ürünler
Detayları Gör
Siemens
3MV8100-0MC00
MFR #3MV8100-0MC00
SKU #YLSNDRLO7GD0JC3
Detayları Gör
Siemens
3MV8100-0MD00
MFR #3MV8100-0MD00
SKU #YLSLDR7SAMNEI7
Detayları Gör
Siemens
3MV8100-0ME00
MFR #3MV8100-0ME00
SKU #YLSQYIXF5Z6DOGW
Detayları Gör
Siemens
3MV8100-0MF00
MFR #3MV8100-0MF00
SKU #YLSE4VVERJVVVFH
Detayları Gör
Siemens
3MV8100-0MG00
MFR #3MV8100-0MG00
SKU #YLSI4OKULAP3QK
Detayları Gör
Siemens
3MV8100-0MH00
MFR #3MV8100-0MH00
SKU #YLSCUEFEDHRZRUJ
Detayları Gör
Siemens
3MV8100-0MJ00
MFR #3MV8100-0MJ00
SKU #YLSMBKZVBRAS5T
Detayları Gör
Siemens
3MV8100-0MK00
MFR #3MV8100-0MK00
SKU #YLS3JCVHPICJ2VL
Detayları Gör
Siemens
3MV8100-0ML00
MFR #3MV8100-0ML00
SKU #YLSMFZC3SXLCXHP
Öne Çıkan Ürünler
Detayları Gör
SMC
AW20-N02CG-6CZ-B
MFR #AW20-N02CG-6CZ-B
SKU #YLSNOOF0IBCZ3J3
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Detayları Gör
SMC
MXQ25L-40B-M9NZ
MFR #MXQ25L-40B-M9NZ
SKU #YLSD1VANMRI726Z
Detayları Gör
SMC
NCDMC150-0600-X155US
MFR #NCDMC150-0600-X155US
SKU #YLS8ICKGSKYC93L
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
İlgili Aramalar
Siemens 3SK2112-1AA10 fiyatSiemens 3SK2112-1AA10 teklif alSiemens 3SK2112-1AA10 satın al3SK2112-1AA10 fiyat3SK2112-1AA10 stok durumuSiemens yedek parçaSiemens 3SK2112-1AA10 muadilSiemens 3SK2112-1AA10 teknik özellikler
