How can I get a price quote for Siemens 6EP3436-8SB00-0AY0?

You can request a fast quote for Siemens 6EP3436-8SB00-0AY0 from Yılsa Engineering. Reference part number CEY-937FC77E7D4A. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Siemens 6EP3436-8SB00-0AY0 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Siemens 6EP3436-8SB00-0AY0 genuine and new?

Yes. This Siemens product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Siemens 6EP3436-8SB00-0AY0?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

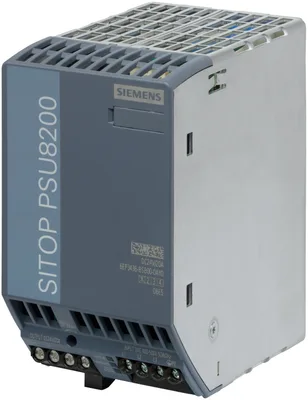

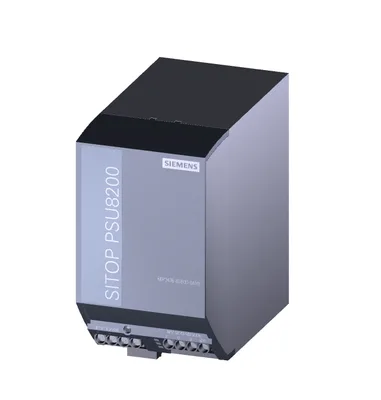

Siemens 6EP3436-8SB00-0AY0

SITOP PSU8200 24 V/20 A stabilized power supply input: 400-500 V 3 AC output: 24 V DC/20 A

SiemensMFR # 6EP3436-8SB00-0AY0SKU # CEY-937FC77E7D4A

product brand nameSITOP

product type designationPSU8200

product designationPower supply SITOP modular

type of current supply24 V/20 A

type of the power supply network3-phase AC

phase number3

Have questions?Chat on WhatsApp

About This Product

SITOP PSU8200 24 V/20 A stabilized power supply input: 400-500 V 3 AC output: 24 V DC/20 A

Siemens 6EP3436-8SB00-0AY0

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU8200

product designationPower supply SITOP modular

type of current supply24 V/20 A

input

type of the power supply network3-phase AC

phase number3

voltage curve at inputAC

minimum rated value400 V

maximum rated value500 V

initial value320 V

full-scale value575 V

at 50 Hz400 V

at 60 Hz500 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputYes

buffering time for rated value of the output current in the event of power failure minimum15 ms

operating condition of the mains bufferingat Vin = 400 V

at rated input voltage 400 V1.2 A

at rated input voltage 500 V1 A

current limitation of inrush current at 25 °C maximum16 A

I2t value maximum0.8 A²·s

fuse protection typenone

fuse protection type in the feederRequired: 3-pole connected miniature circuit breaker 6 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value24 V

at output 1 at DC rated value24 V

at output 1 at DC24 V

output voltage adjustableYes; via potentiometer

adjustable output voltage24 ... 28 V; max. 480 W

relative overall tolerance of the voltage3 %

on slow fluctuation of input voltage0.1 %

on slow fluctuation of ohm loading0.2 %

maximum100 mV

maximum200 mV

display version for normal operationGreen LED for 24 V OK

type of signal at outputRelay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"

behavior of the output voltage when switching onNo overshoot of Vout (soft start)

response delay maximum2.5 s

maximum500 ms

rated value20 A

rated range0 ... 20 A; +60 ... +70 °C: Derating 2%/K

supplied active power typical480 W

at short-circuit during operation typical60 A

at short-circuit during operation25 ms

on short-circuiting during the start-up typical22 A

bridging of equipmentYes; switchable characteristic

number of parallel-switched equipment resources for increasing the power2

efficiency

efficiency in percent94 %

at rated output voltage for rated value of the output current typical31 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical0.1 %

relative control precision of the output voltage load step of resistive load 50/100/50 % typical1 %

load step 50 to 100% typical0.2 ms

load step 100 to 50% typical0.2 ms

relative control precision of the output voltage at load step of resistive load 10/90/10 % typical2 %

load step 10 to 90% typical0.2 ms

load step 90 to 10% typical0.2 ms

maximum10 ms

protection and monitoring

design of the overvoltage protection< 32 V

property of the output short-circuit proofYes

design of short-circuit protectionAlternatively, constant current characteristic approx. 22 A or latching shutdown

typical22 A

in normal operationoverload capability 150 % Iout rated up to 5 s/min

typical22 A

display version for overload and short circuitLED yellow for "overload", LED red for "latching shutdown"

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum3.5 mA

typical0.9 mA

protection class IPIP20

EMC

for emitted interferenceEN 55022 Class B

for mains harmonics limitationEN 61000-3-2

for interference immunityEN 61000-6-2

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259

EAC approvalYes

Regulatory Compliance Mark (RCM)Yes

NEC Class 2No

SEMI F47Yes

BISYes; R-41188271

CB-certificateYes

MTBF at 40 °C590 573 h

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalYes

American Bureau of Shipping Europe Ltd. (ABS)Yes

French marine classification society (BV)No

Det Norske Veritas (DNV)Yes

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total814 kg

during manufacturing28.7 kg

during operation785 kg

after end of life0.24 kg

ambient conditions

during operation-25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage

during transport-40 ... +85 °C

during storage-40 ... +85 °C

environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation

connection method

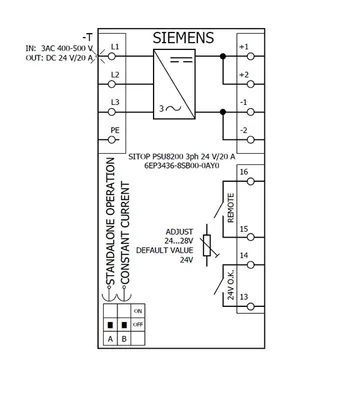

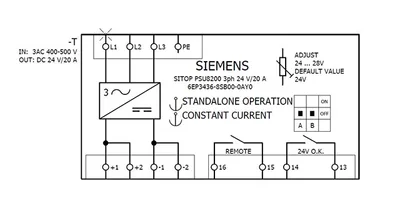

type of electrical connectionscrew terminal

at inputL1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded

at output+, -: 2 screw terminals each for 0.2 ... 4 mm²

for auxiliary contacts13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²; 15, 16 (Remote): 1 screw terminal each for 0.14 ... 1.5 mm²

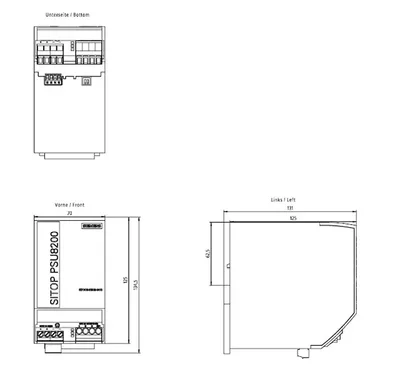

mechanical data

width × height × depth of the enclosure70 × 125 × 125 mm

installation width × mounting height70 mm × 225 mm

top50 mm

bottom50 mm

left0 mm

right0 mm

fastening methodSnaps onto DIN rail EN 60715 35x7.5/15

DIN-rail mountingYes

S7 rail mountingNo

wall mountingNo

housing can be lined upYes

net weight1.2 kg

accessories

electrical accessoriesBuffer module

mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

further information internet links

identification linkYes; acc. to IEC 61406-1:2022

additional information

other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

Approvals Certificates

global warming potential [CO2 eq] / during manufacturing28.7 kg

global warming potential [CO2 eq] / during operation785 kg

global warming potential [CO2 eq] / after end of life0.24 kg

global warming potential [CO2 eq] / total814 kg

Accessories 11

Genuine accessories that can be used with the Siemens 6EP3436-8SB00-0AY0 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
6EP4436-8XB00-0CY0	Aksesuar · Channel expansion module · #NO_DATA#
6EP4297-8HB00-0XY0	Aksesuar · Buffer module · #NO_DATA#
6EP4293-8HB00-0XY0	Aksesuar · Buffer module · #NO_DATA#
6EP4145-8GB00-0XY0	Aksesuar · Battery module
3RT2900-1SB20	Aksesuar · Miscellaneous accessories · labeling plates
6EP4143-8JB00-0XY0	Aksesuar · Battery module
6EP4295-8HB00-0XY0	Aksesuar · Buffer module · #NO_DATA#
6EP4297-8HB10-0XY0	Aksesuar · Buffer module · #NO_DATA#
6EP4436-8XB00-0DY0	Aksesuar · Channel expansion module · #NO_DATA#
6EP4437-8XB00-0CY0	Aksesuar · Channel expansion module · #NO_DATA#
6EP4548-7XB00-3AX0	Aksesuar · Chopper module · #NO_DATA#
