Siemens 6EP4548-7XB00-3AX0

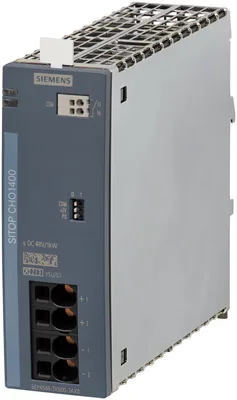

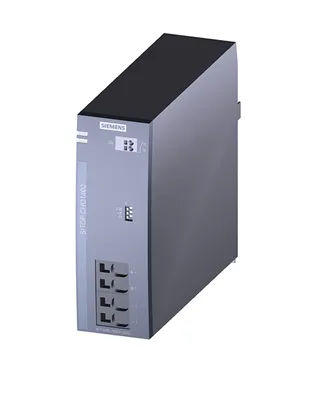

SITOP CHO1400 24/48 V chopper module 1 kW 24-28 V | 48 V - 56 V DC with monitoring interface
product brand nameSITOP
product type designationCHO1400
product designationChopper module
type of the power supply networkDC voltage
voltage curve at inputDC
supply voltage 1 at DC24 ... 28 V
About This Product
SITOP CHO1400 24/48 V chopper module 1 kW 24-28 V | 48 V - 56 V DC with monitoring interface
Siemens 6EP4548-7XB00-3AX0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
product brand nameSITOP
product type designationCHO1400
product designationChopper module
input
type of the power supply networkDC voltage
voltage curve at inputDC
supply voltage 1 at DC24 ... 28 V
supply voltage 2 at DC48 ... 56 V
input voltage 1 at DC20.5 ... 29 V
input voltage 2 at DC41 ... 57 V
output
voltage curve at outputControlled DC voltage
number of outputs1
output voltage at DC rated value24 V
formula for output voltageVin + 2.0 V
consumed input power maximum1 000 W
consumed energy content maximum1 800 J
cooling time maximum4 min
at output 1 at DC24 ... 48 V
bridging of equipmentYes
number of parallel-switched equipment resources for increasing the power2
efficiency
during no-load operation maximum1 W
safety
galvanic isolation between input and outputNo
operating resource protection classClass III
protection class IPIP20
EMC
for emitted interferenceEN 61000-6-3
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingYes
UL approvalYes
UKCA markingYes
NEC Class 2No
CB-certificateYes
MTBF at 40 °C1 000 000 h
standards, specifications, approvals hazardous environments
IECExNo
ATEXNo
ULhazloc approvalNo
FM registrationNo
standards, specifications, approvals marine classification
shipbuilding approvalNo
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationYes
total66.6 kg
during manufacturing38.1 kg
during operation27.4 kg
after end of life0.88 kg
ambient conditions
during operation-40 ... +70 °C; with natural convection
during transport-40 ... +85 °C
during storage-40 ... +85 °C
environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation
connection method
type of electrical connectionpush-in terminals
at inputIn: each for 0.75 ... 16 mm²
at outputOut: each for 0.75 ... 16 mm²
for auxiliary contacts13, 14 (alarm signal): 1 push-in terminal each for 0.2 ... 1.5 mm²
mechanical data

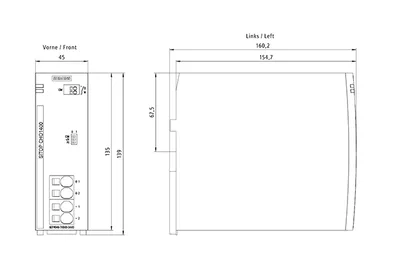

width × height × depth of the enclosure45 × 135 × 125 mm
installation width × mounting height45 mm × 225 mm
top45 mm
bottom45 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mountingYes
S7 rail mountingNo
wall mountingNo
housing can be lined upYes
net weight0.872 kg
further information internet links
identification linkYes; acc. to IEC 61406-1:2022
additional information
other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
Approvals Certificates
global warming potential [CO2 eq] / during manufacturing38.1 kg
global warming potential [CO2 eq] / during operation27.4 kg
global warming potential [CO2 eq] / after end of life0.88 kg
global warming potential [CO2 eq] / total66.6 kg
