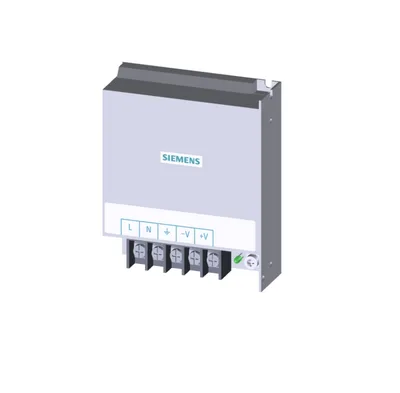

Siemens 6EP1321-1LD01

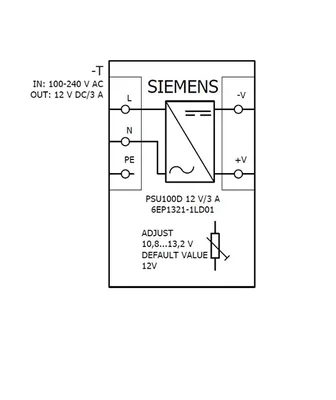

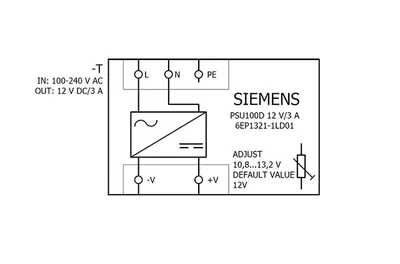

PSU100D 12 V/3 A Stabilized power supply input: 100-240 V AC output: 12 V DC/3 A

SiemensMFR # 6EP1321-1LD01SKU # YLSKDHQDCONDRC

product brand nameSITOP

product type designationPSU100D

product designationPower supply SITOP

type of current supply12 V/3 A

type of the power supply network1-phase AC

phase number1

Have questions?Chat on WhatsApp

About This Product

PSU100D 12 V/3 A Stabilized power supply input: 100-240 V AC output: 12 V DC/3 A

Siemens 6EP1321-1LD01

Genuine, certified Siemens product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

General information

product brand nameSITOP

product type designationPSU100D

product designationPower supply SITOP

type of current supply12 V/3 A

input

type of the power supply network1-phase AC

phase number1

voltage curve at inputAC

minimum rated value100 V

maximum rated value240 V

initial value90 V

full-scale value264 V

at 50 Hz240 V

at 60 Hz100 V

line frequency50/60 Hz

line frequency47 ... 63 Hz

wide range inputYes

overvoltage overload capability1.25 × Vin rated, 500 ms

buffering time for rated value of the output current in the event of power failure minimum16 ms

operating condition of the mains bufferingat Vin = 115/230 V

at rated input voltage 100 V0.85 A

at rated input voltage 240 V0.5 A

current limitation of inrush current at 25 °C maximum45 A

I2t value maximum1.5 A²·s

fuse protection typeT3.15AL250V (internal)

fuse protection type in the feederRecommended miniature circuit breaker: from 16 A characteristic B, from 20 A characteristic B (for North America)

output

voltage curve at outputControlled, isolated DC voltage

product function output voltage controlledYes

product function output voltage stabilizedYes

output voltage at DC rated value12 V

at output 1 at DC rated value12 V

at output 1 at DC12 V

output voltage adjustableYes; via potentiometer

adjustable output voltage10.8 ... 13.2 V

relative overall tolerance of the voltage1 %

on slow fluctuation of input voltage0.5 %

on slow fluctuation of ohm loading0.5 %

maximum120 mV

display version for normal operationGreen LED for 12 V OK

behavior of the output voltage when switching onOvershoot of Vout < 10 %

response delay maximum1 s

maximum30 ms

rated value3 A

rated range0 ... 3 A; +50 ... +70 °C: Derating 2.0%/K

supplied active power typical35 W

bridging of equipmentNo

efficiency

efficiency in percent86 %

at rated output voltage for rated value of the output current typical5.7 W

closed-loop control

relative control precision of the output voltage load step of resistive load 50/100/50 % typical10 %

load step 50 to 100% typical4 ms

load step 100 to 50% typical4 ms

protection and monitoring

design of the overvoltage protection< 17.4 V

property of the output short-circuit proofYes

design of short-circuit protectionElectronic shutdown, automatic restart

response value current limitation3.3 ... 5.25 A

typical4 A

safety

galvanic isolation between input and outputYes

galvanic isolationOutput voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)

operating resource protection classClass I

maximum0.5 mA

EMC

for emitted interferenceEN 55032 Class B

for mains harmonics limitationIEC 61000-3-2

for interference immunityEN 55035

standards, specifications, approvals

CE markingYes

UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cURus (UL 62368-1, CSA C22.2 NO 62368-1-14), File E151273

UKCA markingYes

EAC approvalNo

NEC Class 2No

BISYes; R-61003204

CB-certificateYes

MTBF at 25 °C700 000 h; according to SR-332, 100% full load (12 V, 3 A), input voltage: 115 V / 230 V AC

standards, specifications, approvals hazardous environments

IECExNo

ATEXNo

ULhazloc approvalNo

FM registrationNo

standards, specifications, approvals marine classification

shipbuilding approvalNo

American Bureau of Shipping Europe Ltd. (ABS)No

French marine classification society (BV)No

Det Norske Veritas (DNV)No

Lloyds Register of Shipping (LRS)No

standards, specifications, approvals Environmental Product Declaration

Environmental Product DeclarationYes

total181.8 kg

during manufacturing3.4 kg

during operation178.3 kg

after end of life0.05 kg

ambient conditions

during operation-25 ... +70 °C; with natural convection; The device is not recommended to be placed on low thermal conductive surface (e. g. plastics).

during transport-40 ... +85 °C

during storage-40 ... +85 °C

relative humidity with condensation according to IEC 60068-2-38 maximum20 ... 90% without condensation

connection method

type of electrical connectionscrew terminal

at inputL, N, PE: 1 screw terminal each for 0.75 ... 2 mm² single-core/finely stranded

at output+, -: 1 screw terminal each for 0.75 ... 2 mm²

for auxiliary contacts-

mechanical data

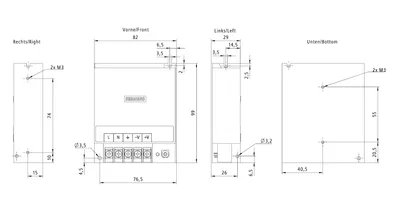

width × height × depth of the enclosure82 × 29 × 99 mm

fastening methodWall mounting

DIN-rail mountingNo
