Siemens 6EP4295-8HB00-0XY0
SITOP BUF8600 10s buffer module for PSU8600 buffer capacity 10 s/40 A with dual-layer capacitators maintenance-free
product brand nameSITOP
product type designationBUF8600
type of current supply10 s/40 A
type of energy storageDouble-layer capacitors
load time typical10 min; at 400 V
rated value40 A
About This Product
SITOP BUF8600 10s buffer module for PSU8600 buffer capacity 10 s/40 A with dual-layer capacitators maintenance-free
Siemens 6EP4295-8HB00-0XY0
- Genuine, certified Siemens product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
General information
product brand nameSITOP
product type designationBUF8600
type of current supply10 s/40 A
memory
type of energy storageDouble-layer capacitors
product function DC-UPS modularly expandableYes
design of the mains power cut bridging-connectionBackup time with 40 A load current: 10 s
buffering time for rated value of the output current in the event of power failure10 000 ms
load time typical10 min; at 400 V
output
rated value40 A
protection and monitoring
display version3-color LED for operating state module
for normal operationLED green for "buffer standby exist"
in buffering modeLED yellow for "buffered mode"
interfaces
product function communication functionYes
design of the interfaceEthernet/PROFINET via power supply unit PSU8600
safety
operating resource protection classClass III
protection class IPIP20
for emitted interferenceEN 55022 Class B
for interference immunityEN 61000-6-2
standards, specifications, approvals
CE markingYes
UL approvalYes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
EAC approvalYes
SEMI F47Yes
type of certification CB-certificateYes
MTBF at 40 °C1 190 747 h
standards, specifications, approvals hazardous environments
ATEXNo
standards, specifications, approvals marine classification
shipbuilding approvalYes
American Bureau of Shipping Europe Ltd. (ABS)Yes
Det Norske Veritas (DNV)Yes
standards, specifications, approvals Environmental Product Declaration
Environmental Product DeclarationYes
total150.7 kg
during manufacturing30.9 kg
during operation118.4 kg
after end of life0.58 kg
ambient conditions
during operation-25 ... +60 °C; with natural convection
during transport-40 ... +70 °C
during storage-40 ... +70 °C
environmental category according to IEC 60721Climate class 3K3, 5 ... 95% no condensation
connection method
type of electrical connectionPlug-in terminal with screw connectors

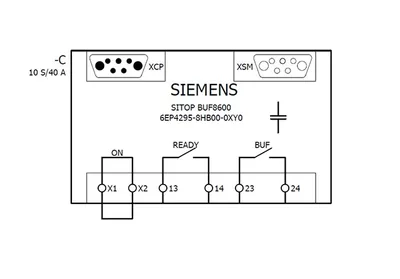

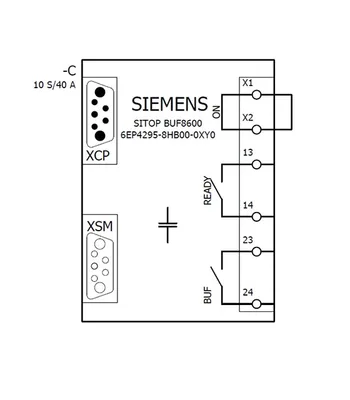

for control circuit and status messageX1, X2 (control contact) and 13,14, 23, 24 (message signals): 1 screw terminal each for 0.2 ... 1.5 mm²
suitability for interaction modular systemYes
type of connection to system componentsVia integrated connector
mechanical data

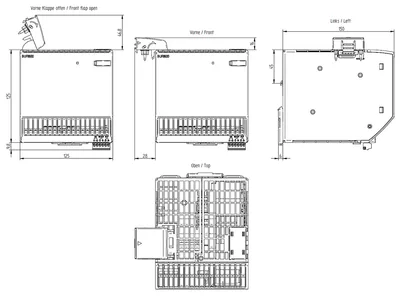

width × height × depth of the enclosure125 × 125 × 150 mm
installation width × mounting height125 mm × 225 mm
top50 mm
bottom50 mm
left0 mm
right0 mm
fastening methodSnaps onto DIN rail EN 60715 35x15
DIN-rail mountingYes
S7 rail mountingNo
wall mountingNo
housing can be lined upYes
net weight1.95 kg
accessories
mechanical accessoriesDevice identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20
additional information
other informationSpecifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
